ADVANCED DRIVER ASSISTANCE SYSTEM  PRE-COLLISION SYSTEM  PARTS LOCATION

ILLUSTRATION

4.646,2.031 5.333,1.219 5.333,1.219 5.5,1.219 true 0.99,4.771 1.156,4.771 1.156,4.771 1.719,3.958 true 5.49,5.167 5.333,5.167 5.333,5.167 3.688,3.927 true 1.823,1.917 2,1.917 2,1.917 2.885,3.167 true 2.698,6.167 2.885,6.167 2.885,6.167 3.656,4.51 true 5.563,1.146 5.875,1.344 0.313,0.198 10 false *1 0.781,4.688 1.094,4.885 0.313,0.198 10 false *2 1.354,1.813 1.927,2 0.573,0.188 10 false *4 (*A) 5.563,5.073 6.104,5.313 0.542,0.24 10 false *3 (*B) 1.365,2.021 1.938,2.208 0.573,0.188 10 false *5 (*B) 2.531,6.083 2.792,6.313 0.26,0.229 10 false *6

*A	for HV Model	*B	for Gasoline Model

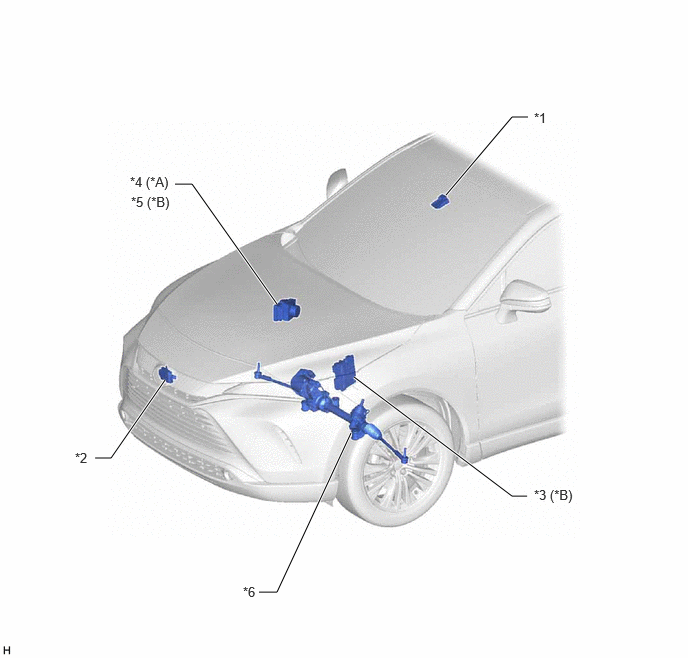

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	ECM	*4	NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
*5	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*6	POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY)

ILLUSTRATION

2.813,1.125 3.354,0.521 3.354,0.521 3.552,0.521 true 2.583,3.365 3.021,2.188 3.021,2.188 3.219,2.188 true 1.052,2.865 1.208,2.865 1.208,2.865 1.604,3.948 true 1.063,4.635 1.219,4.635 1.219,4.635 1.438,4.333 true 1.208,5.135 1.365,5.135 1.365,5.135 1.594,4.698 true 1.396,5.625 1.552,5.625 1.552,5.625 2.406,3.938 true 1.885,6.073 2.042,6.073 2.042,6.073 2.938,4.573 true 3.583,0.448 3.896,0.646 0.313,0.198 10 false *1 3.26,2.115 3.573,2.313 0.313,0.198 10 false *2 0.865,2.781 1.177,2.979 0.313,0.198 10 false *3 0.958,5.542 1.656,5.844 0.698,0.302 10 false *4 (*A) 1.698,5.99 2.01,6.188 0.313,0.198 10 false *5 0.885,4.552 1.198,4.75 0.313,0.198 10 false *6 1.031,5.052 1.344,5.25 0.313,0.198 10 false *7

*A	for HV Model	-	-

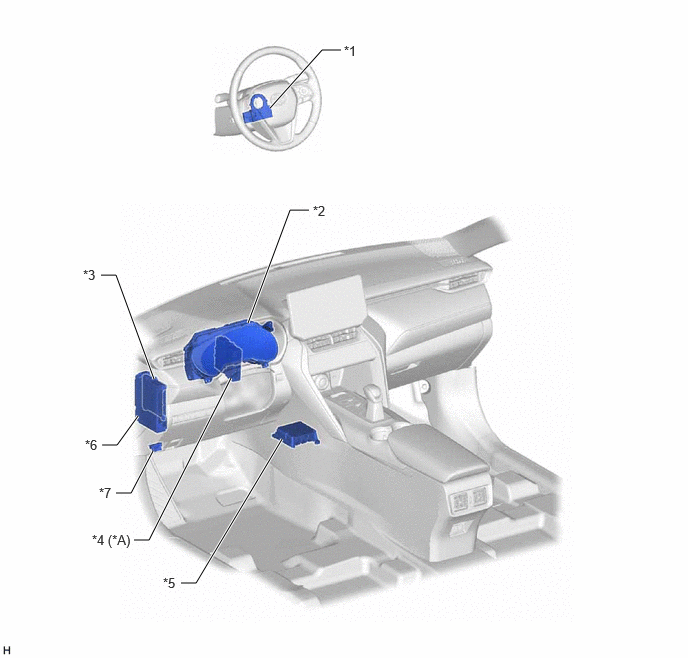

*1	STEERING SENSOR	*2	COMBINATION METER ASSEMBLY
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	HYBRID VEHICLE CONTROL ECU
*5	AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR	*6	POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 2 FUSE
*7	DLC3	-	-
