AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM  PARTS LOCATION

ILLUSTRATION

4.917,1.854 4.917,0.583 4.917,0.583 5.167,0.583 true 5.167,1.833 5.167,0.896 5.167,0.896 5.417,0.896 true 4.563,3.75 4.583,5.917 4.583,5.917 4.25,5.917 true 5.24,0.5 5.552,0.698 0.313,0.198 10 false *1 5.5,0.833 6.125,1.146 0.625,0.313 10 false *2 (*A) 4.021,5.833 4.333,6.031 0.313,0.198 10 false *3 5.5,1.031 6.031,1.313 0.531,0.281 10 false *4 (*B)

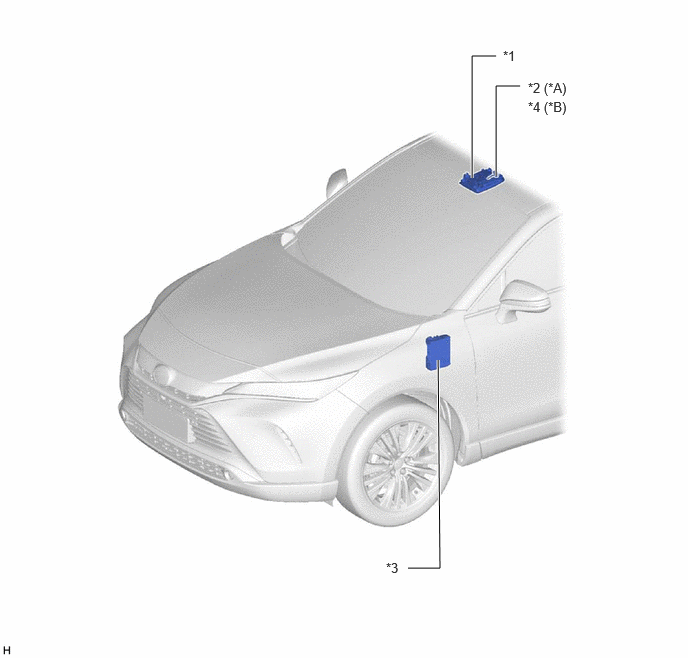

*A	for SFTM Made	*B	for GTMC Made
*1	MAP LIGHT ASSEMBLY	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	POWER DISTRIBUTION BOX ASSEMBLY - ECU-ACC FUSE - RADIO FUSE - ECU-IGR NO. 2 FUSE - BKUP LP FUSE - METER-IGR FUSE - PANEL RELAY - IGR NO. 2 RELAY - BKUP LP RELAY - DCM FUSE	*4	NO. 2 TELEPHONE MICROPHONE ASSEMBLY - MICROPHONE ASSEMBLY

ILLUSTRATION

2.5,0.958 2.833,0.25 2.833,0.25 3.083,0.25 true 2.167,1.917 2.417,1.917 2.417,1.917 2.583,1.333 true 2.427,3.583 1.833,2.25 1.833,2.25 1.5,2.25 true 3.417,3.167 3.667,2.167 3.667,2.167 4,2.167 true 3.5,3.667 5.333,4.167 5.333,4.167 5.667,4.167 true 1.917,6.083 2.333,6.083 2.333,6.083 3.219,4 true 1,5.333 1.333,5.333 1.333,5.333 1.635,4.646 true 3.167,0.135 3.479,0.333 0.313,0.198 10 false *1 1.688,6 2,6.198 0.313,0.198 10 false *6 5.75,4.052 6.063,4.25 0.313,0.198 10 false *5 4.104,2.052 4.417,2.25 0.313,0.198 10 false *4 1.271,2.167 1.583,2.365 0.313,0.198 10 false *3 1.938,1.833 2.25,2.031 0.313,0.198 10 false *2 0.75,5.25 1.063,5.448 0.313,0.198 10 false *7

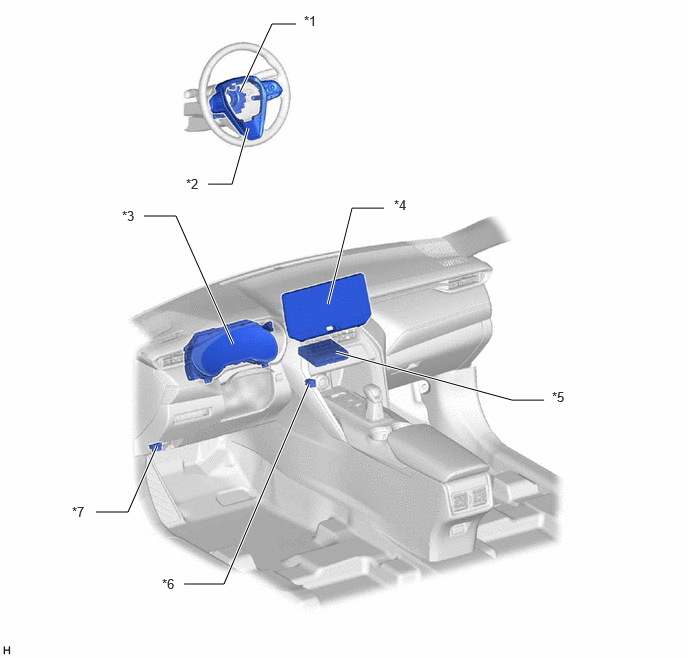

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING PAD SWITCH ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	RADIO AND DISPLAY RECEIVER ASSEMBLY
*5	TELEMATICS TRANSCEIVER	*6	NO. 1 STEREO JACK ADAPTER ASSEMBLY
*7	DLC3	-	-

ILLUSTRATION

3.635,1.875 4.302,0.396 4.302,0.396 4.552,0.396 true 4.021,2.698 4.948,0.938 4.948,0.938 5.198,0.938 true 4.979,3.167 5.906,1.406 5.906,1.406 6.156,1.406 true 1.979,2.302 2.344,0.896 2.344,0.896 2.573,0.896 true 1.969,3.365 1.5,4.583 1.5,4.583 1.188,4.583 true 2.885,3.844 2.417,5.063 2.417,5.063 2.104,5.063 true 4.604,0.302 4.917,0.5 0.313,0.198 10 false *4 5.271,0.854 5.583,1.052 0.313,0.198 10 false *2 6.229,1.323 6.542,1.521 0.313,0.198 10 false *6 2.635,0.813 2.948,1.01 0.313,0.198 10 false *3 0.99,4.51 1.302,4.708 0.313,0.198 10 false *1 1.917,4.99 2.229,5.188 0.313,0.198 10 false *5

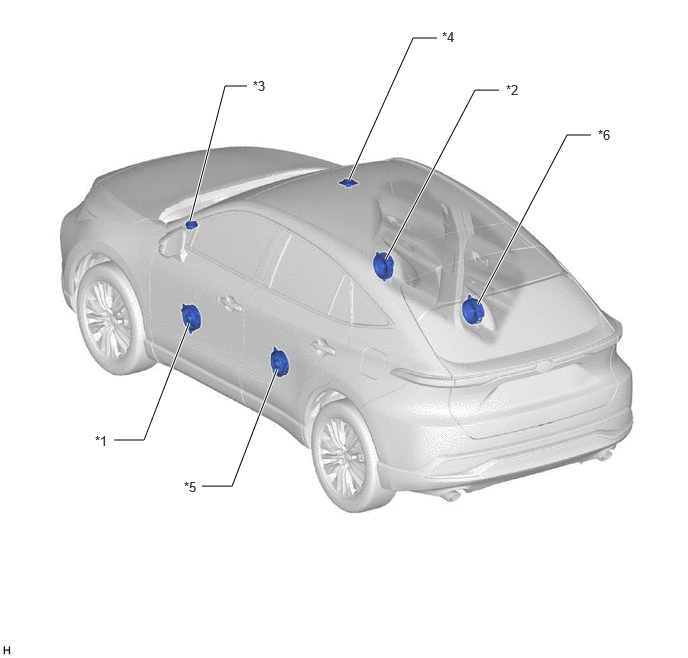

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 3 SPEAKER ASSEMBLY LH	*4	FRONT NO. 3 SPEAKER ASSEMBLY RH
*5	REAR SPEAKER ASSEMBLY LH	*6	REAR SPEAKER ASSEMBLY RH

ILLUSTRATION

4.469,1.969 4.802,1.083 4.802,1.083 5.021,1.083 true 4.771,2.563 5.219,1.385 5.219,1.385 5.438,1.385 true 5.615,2.698 6.031,2.021 6.031,2.021 6.26,2.021 true 4.531,3.823 5.479,5.729 5.479,5.729 5.729,5.729 true 3.156,2.26 3.375,1.156 3.375,1.156 3.604,1.156 true 5.49,3.875 6.25,5.313 6.25,5.313 6.5,5.313 true 3.646,1.052 3.958,1.25 0.313,0.198 10 false *1 6.323,1.948 6.635,2.146 0.313,0.198 10 false *3 5.51,1.302 5.823,1.5 0.313,0.198 10 false *4 5.063,0.99 5.625,1.219 0.563,0.229 10 false *2 5.781,5.635 6.094,5.833 0.313,0.198 10 false *5 6.563,5.219 6.875,5.417 0.313,0.198 10 false *6

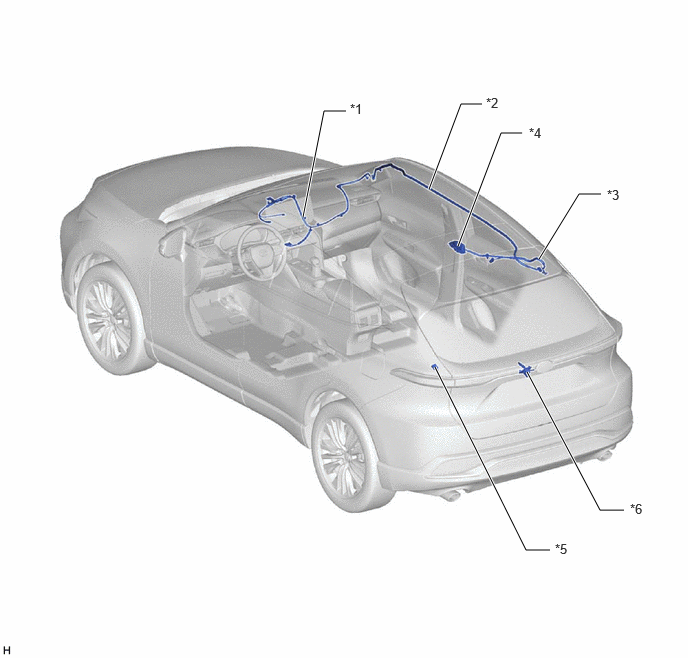

*1	ANTENNA CORD SUB-ASSEMBLY	*2	NO. 2 ANTENNA CORD SUB-ASSEMBLY
*3	NO. 4 ANTENNA CORD SUB-ASSEMBLY	*4	TELEPHONE ANTENNA ASSEMBLY - FM
*5	RADIO SETTING CONDENSER	*6	REAR TELEVISION CAMERA ASSEMBLY
