ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR INSTALLATION
PROCEDURE
88211B
1.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- NOTICE:
-
If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.
|
Bolt |
|
Screw |
Engage the 2 guides.

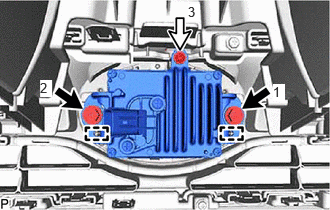

Install the millimeter wave radar sensor assembly with the 2 bolts and screw.
- Torque:
- Bolt : 2.5 N*m (25 kgf*cm, 22 in.*lbf)
- HINT:
-
Tighten the bolts and screw in the order shown in the illustration.
- NOTICE:
-
Do not overtighten the screw. The radiator grille may be damaged.
Connect the connector.
16681A
2.INSTALL UPPER RADIATOR AIR GUIDE PLATE
|
Install in this Direction (1) |
|
Install in this Direction (2) |

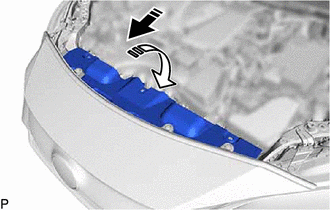

Temporarily install the upper radiator air guide plate as shown in the illustration.
Install the upper radiator air guide plate with the 3 clips and 4 bolts.
53510
3.INSTALL HOOD LOCK ASSEMBLY
53301
4.ADJUST HOOD SUB-ASSEMBLY
17750A
5.INSTALL INLET AIR CLEANER ASSEMBLY (for Gasoline Model)
6.ADJUST MILLIMETER WAVE RADAR SENSOR
When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
- HINT:
-
Millimeter wave radar sensor assembly learning can be performed by using either Target Adjustment (Triangle Target) or Target Adjustment (Flat Surface Target) or Driving Adjustment.
- ·
Target Adjustment (Triangle Target):
·Target Adjustment (Flat Surface Target):
