ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Millimeter wave radar sensor assembly | Adjust millimeter wave radar sensor assembly | ·
Dynamic Radar Cruise Control System ·
Lane Tracing Assist System ·
Front Radar Sensor System ·
Pre-collision System ·
Automatic High Beam System |
Triangle Target:( 202303,999999,_95,_111850,_0502179,RM10000000292SE,)
Flat Surface Target:( 202303,999999,_95,_111850,_0502179,RM10000000292SF,)
Driving Adjustment:( 202303,999999,_95,_111850,_0502179,RM10000000292SD,)
|
PROCEDURE
17750A
1.REMOVE INLET AIR CLEANER ASSEMBLY (for Gasoline Model)
53510
2.REMOVE HOOD LOCK ASSEMBLY
16681A
3.REMOVE UPPER RADIATOR AIR GUIDE PLATE
|

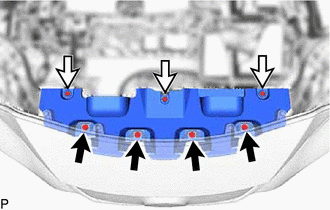

Bolt |
|
Clip |
Remove the 4 bolts.
Remove the 3 clips.
|

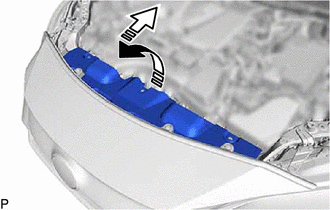

Remove in this Direction (1) |
|
Remove in this Direction (2) |
Remove the upper radiator air guide plate as shown in the illustration.
88211B
4.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

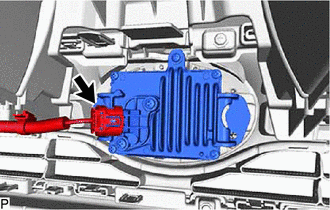

Disconnect the connector.
|
|

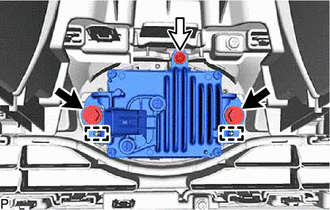

Bolt |
|
|
Screw |
Remove the 2 bolts and screw.
Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
- NOTICE:
-
Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
