TIRE PRESSURE MONITORING
_0502517
TIRE PRESSURE WARNING RECEIVER
K
TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER COMPONENTS
ILLUSTRATION
| *A | for Gasoline Model | *B | for HV Model |
| *C | for SFTM Made | *D | for GTMC Made |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT CENTER HEADREST ASSEMBLY | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT HEADREST ASSEMBLY |
| *7 | REAR SEATBACK ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | BATTERY HOLE COVER | *2 | REAR FLOOR FINISH PLATE |
| *3 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *4 | REAR NO. 2 FLOOR BOARD |
| *5 | REAR SEATBACK BOARD CARPET ASSEMBLY LH | *6 | SPARE WHEEL COVER TRAY |
ILLUSTRATION
| *A | for Gasoline Model | *B | for HV Model |
| *1 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH | *2 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | NO. 2 BATTERY SERVICE COVER BOARD |
| *5 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *6 | REAR DOOR SCUFF PLATE RH |
| *7 | REAR SEAT SIDE GARNISH RH | *8 | REAR SEATBACK HINGE SUB-ASSEMBLY RH |
| *9 | ROOF SIDE INNER GARNISH ASSEMBLY RH | *10 | CLIP |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION

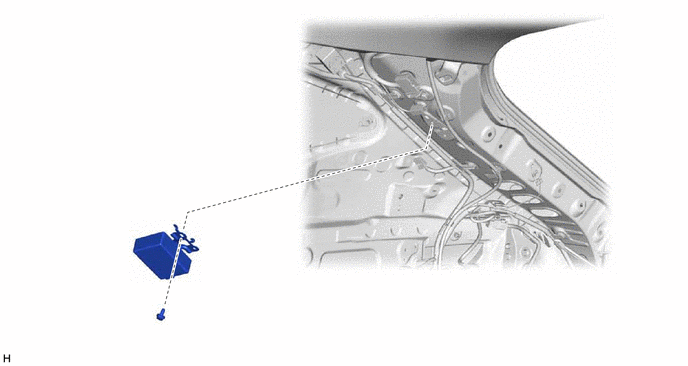

| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
