RM38N0EC _59 Vehicle Exterior _111844 WINDOW / GLASS _0499621 LIGHT CONTROL INVERTER A

WINDOW / GLASS LIGHT CONTROL INVERTER INSTALLATION

PROCEDURE

Hide Display 86210A 1.INSTALL NO. 2 VOLTAGE INVERTER ASSEMBLY

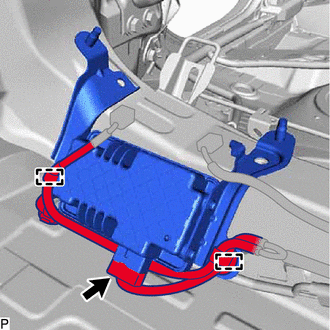

a.

B591504

Connect the connector.

b.

Engage the 2 clamps.

c.

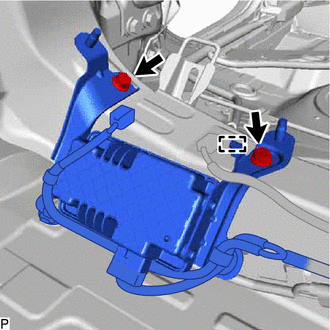

B591505

Engage the guide.

d.

Install the No. 2 voltage inverter assembly with the 2 bolts.

NOTICE:: Tighten the bolts in the order shown in the illustration.

Torque:: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

Hide Display 86011C 2.INSTALL NOISE FILTER

Click hereVehicle Exterior>WINDOW / GLASS>LIGHT CONTROL NOISE FILTER>INSTALLATION202203,999999,_59,_111844,_0499622,RM1000000022LLH_01_0006,

Hide Display 64740C 3.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0207,

Hide Display 62552F 4.INSTALL REAR SEAT SIDE GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0262,

Hide Display 71304C 5.INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0269,

Hide Display 73706 6.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>INSTALLATION202203,999999,_58,_111840,_0501519,RM1000000022LL7_01_0001,

Hide Display 58467H 7.INSTALL NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0271,

Hide Display 62332C 8.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202111,999999,_59,_111831,_0501460,RM100000001Z660_01_0018,

Hide Display 67918A 9.INSTALL REAR DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0036,

Hide Display 58387B 10.INSTALL REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0204,

Hide Display 58577E 11.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0265,

Hide Display 64779 12.INSTALL SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0274,

Hide Display 58417 13.INSTALL REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0273,

Hide Display 14.INSTALL REAR SEATBACK ASSEMBLY LH

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0035,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0002,

Hide Display 72693 15.INSTALL REAR SEAT CUSHION LOCK HOOK

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0038,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0010,

Hide Display 16.INSTALL REAR SEAT CUSHION ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0025,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0043,

Hide Display 71940A 17.INSTALL REAR SEAT HEADREST ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0052,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0034,

Hide Display 58410B 18.INSTALL DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0228,
