RM38N0EC _59 Vehicle Exterior _111844 WINDOW / GLASS _0499621 LIGHT CONTROL INVERTER A

WINDOW / GLASS LIGHT CONTROL INVERTER REMOVAL

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0045,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0045,

Hide Display 3.REMOVE REAR SEAT CUSHION ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

Hide Display 5.REMOVE REAR SEATBACK ASSEMBLY LH

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0012,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0012,

Hide Display 58417 6.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0250,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0250,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0250,

Hide Display 64779 7.REMOVE SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0253,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0253,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0253,

Hide Display 58577E 8.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0200,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0200,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0200,

Hide Display 58387B 9.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0203,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0203,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0203,

Hide Display 67918A 10.REMOVE REAR DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0012,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0012,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0012,

Hide Display 62332C 11.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202203,202303,_58,_111840,_0501516,RM1000000022GHE_01_0263,202303,202406,_58,_111840,_0501516,RM100000002BICP_01_0263,202406,999999,_58,_111840,_0501516,RM100000002MX0W_01_0263,

Hide Display 58467H 12.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0254,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0254,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0254,

Hide Display 73706 13.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4_01_0002,

Hide Display 71304C 14.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0217,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0217,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0217,

Hide Display 62552F 15.REMOVE REAR SEAT SIDE GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0220,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0220,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0220,

Hide Display 64740C 16.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0223,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0223,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0223,

Hide Display 86011C 17.REMOVE NOISE FILTER

Click hereVehicle Exterior>WINDOW / GLASS>LIGHT CONTROL NOISE FILTER>REMOVAL202203,999999,_59,_111844,_0499622,RM1000000022LLF_01_0001,

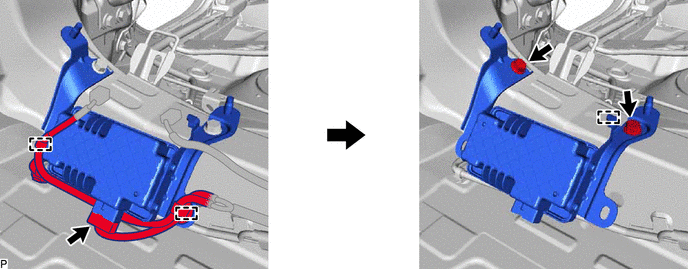

Hide Display 86210A 18.REMOVE NO. 2 VOLTAGE INVERTER ASSEMBLY

a.

Disconnect the connector and disengage the 2 clamps.

B583186

b.

Remove the 2 bolts.

c.

Disengage the guide and remove the No. 2 voltage inverter assembly.
