RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0501516 REAR SEAT OUTER BELT ASSEMBLY A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 73370E 1.INSTALL REAR SEAT OUTER BELT ASSEMBLY

Secure the outer belt anchor bracket sub-assembly in a vise between aluminum plates.

NOTICE:: Do not overtighten the vise.

Engage the guide.

Install the rear seat outer belt assembly to the outer belt anchor bracket sub-assembly with the nut.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

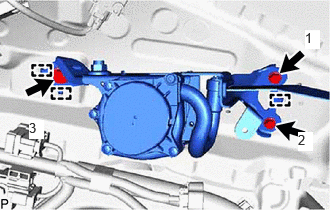

Hide Display 2.INSTALL REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET

3.177,0.313 3.333,0.51 0.156,0.198 10 true 1 3.104,1.375 3.26,1.573 0.156,0.198 10 true 2 0.302,1.25 0.458,1.448 0.156,0.198 10 true 3

Engage the 3 guides and temporarily install the rear seat outer belt assembly with bracket with the 3 bolts.

Install the rear seat outer belt assembly with bracket with the 3 bolts.

Torque:: Bolt (1), (2) : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt (3) : 42 N*m (428 kgf*cm, 31 ft.*lbf)

HINT:: Tighten the bolts in the order shown in the illustration.

0,0 0,0 false

Protruding Part

Check that the ELR locks.

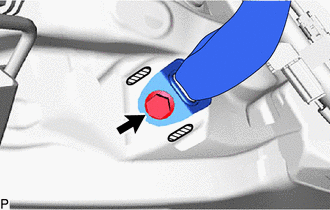

Install the floor anchor of the rear seat outer belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

ii.

With the rear seat outer belt assembly with bracket installed to the vehicle, check that the belt locks when it is pulled out quickly.

NOTICE:: This check should be performed with the rear seat outer belt assembly with bracket installed to the vehicle.

Hide Display 62480A 3.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0010,

Hide Display 64740C 4.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0207,

Hide Display 64730B 5.INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0213,

Hide Display 65351A 6.INSTALL BATTERY HOLE COVER (for RH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0245,

Hide Display 81330 7.INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

Click hereVehicle Interior>LIGHTING (INT)>LUGGAGE COMPARTMENT ROOM LIGHT>INSTALLATION202111,999999,_58,_111833,_0499875,RM100000001Z0ID_01_0030,

Hide Display 62552F 8.INSTALL REAR SEAT SIDE GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0262,

Hide Display 71304C 9.INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0269,

Hide Display 73706 10.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>INSTALLATION202203,999999,_58,_111840,_0501519,RM1000000022LL7_01_0001,

Hide Display 62332C 11.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202111,999999,_59,_111831,_0501460,RM100000001Z660_01_0018,

Hide Display 58467H 12.INSTALL NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0271,

Hide Display 67918A 13.INSTALL REAR DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0036,

Hide Display 58577E 14.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0265,

Hide Display 58387B 15.INSTALL REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0204,

Hide Display 64779 16.INSTALL SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0274,

Hide Display 17.INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0035,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0002,

Hide Display 18.INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0036,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0003,

Hide Display 73350C 19.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0037,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0022,

Hide Display 72693 20.INSTALL REAR SEAT CUSHION LOCK HOOK

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0038,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0010,

Hide Display 21.INSTALL REAR SEAT CUSHION ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0025,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0043,

Hide Display 71960B 22.INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0051,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0042,

Hide Display 71940A 23.INSTALL REAR SEAT HEADREST ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0052,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0034,

Hide Display 58417 24.INSTALL REAR NO. 3 FLOOR BOARD (for LH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0273,

Hide Display 58416K 25.INSTALL REAR NO. 2 FLOOR BOARD (for RH Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0272,

Hide Display 58410B 26.INSTALL DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0228,

Hide Display 27.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for Gasoline Model:

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503321,RM100000001ZE56_01_0015,

for HV Model:

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0015,

Hide Display 28. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE202203,202406,_V1,_111780,_0504976,RM1000000022CKY,202406,999999,_V1,_111780,_0504976,RM100000002MNUE,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202111,999999,_V1,_111780,_0504976,RM100000001ZKRU,

Hide Display 65351A 29.INSTALL BATTERY HOLE COVER (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0245,

Hide Display 58416K 30.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0029,
