SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for RH Side) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 73380D 1.INSTALL REAR SEAT INNER BELT ASSEMBLY RH

a.

B585721

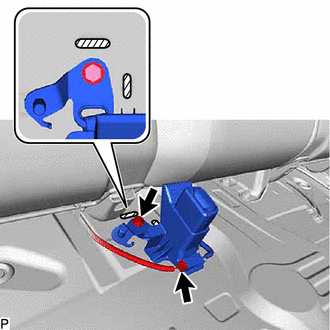

*a	Bolt
*b	Connector
	Protruding Part

Install the rear seat inner belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner belt assembly RH to overlap the protruding parts of the vehicle body.

b.

Connect the connector.

Hide Display 73350C 2.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0037,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0022,

Hide Display 72693 3.INSTALL REAR SEAT CUSHION LOCK HOOK

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0038,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0010,

Hide Display 4.INSTALL REAR SEAT CUSHION ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0025,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0043,
