Vehicle Exterior
_111831
DOOR / HATCH
_0501475
FUEL LID LOCK CONTROL CABLE ASSEMBLY
K
DOOR / HATCH FUEL LID LOCK CONTROL CABLE ASSEMBLY COMPONENTS

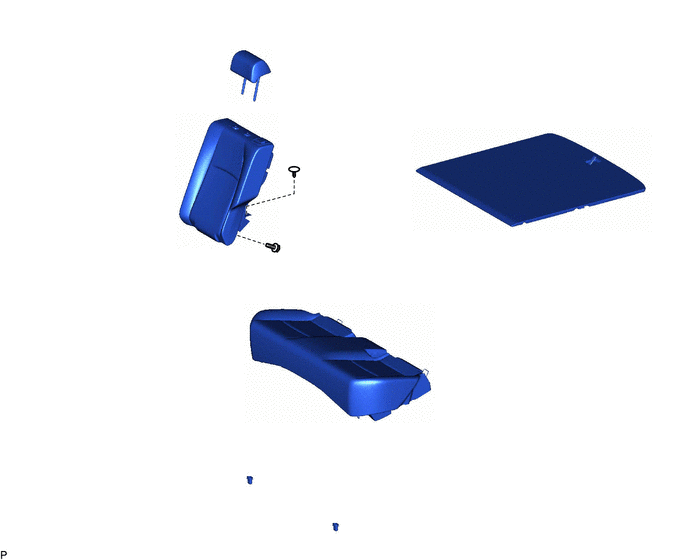

ILLUSTRATION
| *A | for SFTM Made | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR SEAT HEADREST ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEATBACK ASSEMBLY LH | *6 | Clip |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

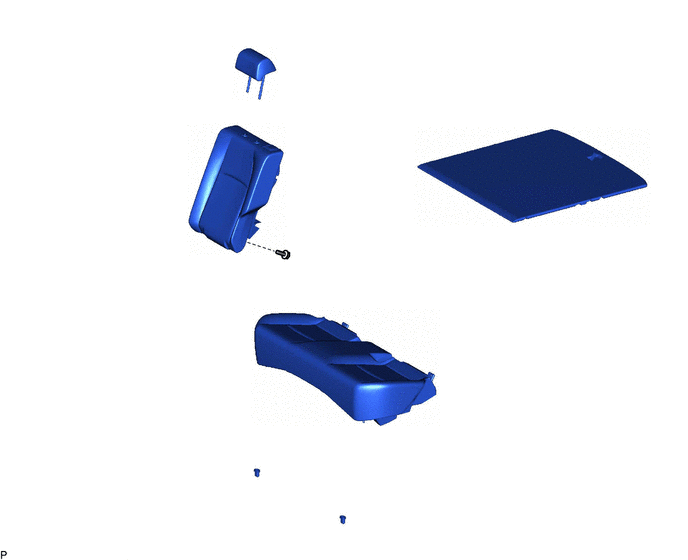

ILLUSTRATION
| *A | for GTMC Made | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR SEAT HEADREST ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEATBACK ASSEMBLY LH | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | for SFTM Made | - | - |
| *1 | REAR NO. 3 FLOOR BOARD | *2 | SPARE WHEEL COVER TRAY |
| *3 | REAR FLOOR FINISH PLATE | *4 | REAR SEATBACK BOARD CARPET ASSEMBLY RH |
| *5 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *6 | Clip |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for 9 Speakers | - | - |
| *1 | REAR DOOR SCUFF PLATE LH | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *4 | REAR SEATBACK HINGE SUB-ASSEMBLY LH |
| *5 | REAR SEAT SIDE GARNISH LH | *6 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *7 | NO. 1 SPEAKER ASSEMBLY WITH BOX | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

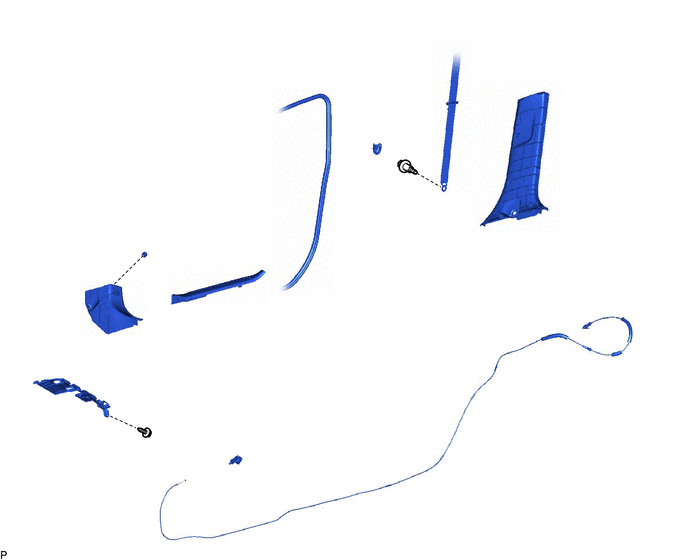

ILLUSTRATION
| *1 | FRONT DOOR SCUFF PLATE LH | *2 | COWL SIDE TRIM SUB-ASSEMBLY LH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | LAP BELT OUTER ANCHOR COVER |
| *5 | FRONT SEAT OUTER BELT ASSEMBLY LH | *6 | CENTER PILLAR LOWER GARNISH LH |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY |
| *9 | FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
