Vehicle Exterior
_111831
DOOR / HATCH
_0501472
FUEL LID OPENER UNIT
K
DOOR / HATCH FUEL LID OPENER UNIT COMPONENTS
ILLUSTRATION
| *A | for SFTM Made | *B | for Gasoline Model |
| *C | for HV Model | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR SEAT HEADREST ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEATBACK ASSEMBLY LH | *6 | Clip |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | for GTMC Made | *B | for Gasoline Model |
| *C | for HV Model | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR SEAT HEADREST ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEATBACK ASSEMBLY LH | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

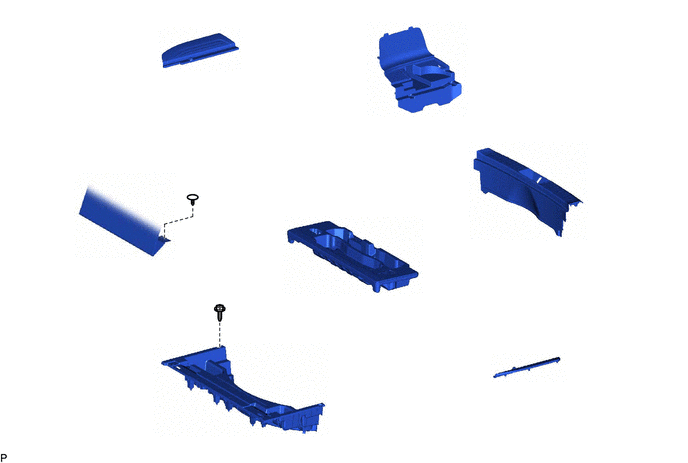

ILLUSTRATION
| *A | for SFTM Made | *B | for HV Model |
| *1 | REAR NO. 2 FLOOR BOARD | *2 | BATTERY HOLE COVER |
| *3 | REAR NO. 3 FLOOR BOARD | *4 | SPARE WHEEL COVER TRAY |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR SEATBACK BOARD CARPET ASSEMBLY RH |
| *7 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *8 | Clip |
| ● | Non-reusable part | - | - |

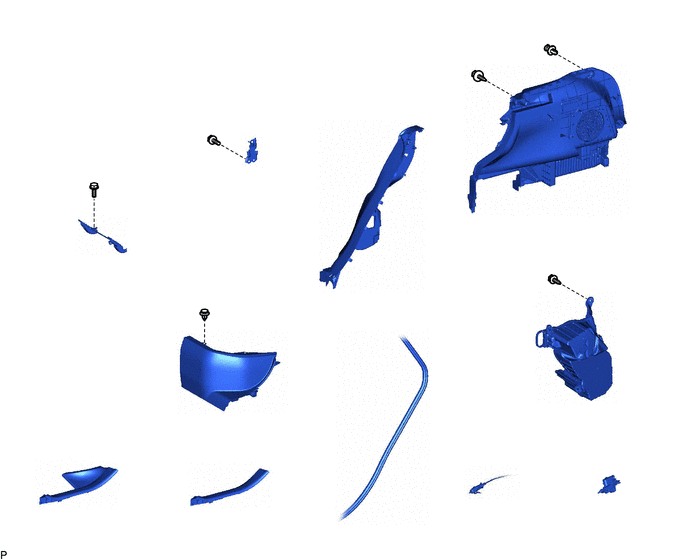

ILLUSTRATION
| *A | for Gasoline Model | *B | for HV Model |
| *C | for 9 Speakers | - | - |
| *1 | REAR DOOR SCUFF PLATE LH | *2 | NO. 3 BATTERY SERVICE COVER BOARD |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *4 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH |
| *5 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | *6 | REAR SEAT SIDE GARNISH LH |
| *7 | DECK TRIM SIDE PANEL ASSEMBLY LH | *8 | NO. 1 SPEAKER ASSEMBLY WITH BOX |
| *9 | FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY | *10 | FUEL LID LOCK WITH MOTOR ASSEMBLY |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

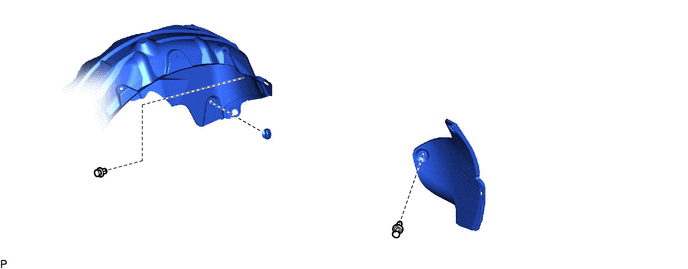

ILLUSTRATION
| *1 | REAR BUMPER SIDE SEAL LH | *2 | REAR WHEEL HOUSE LINER LH |

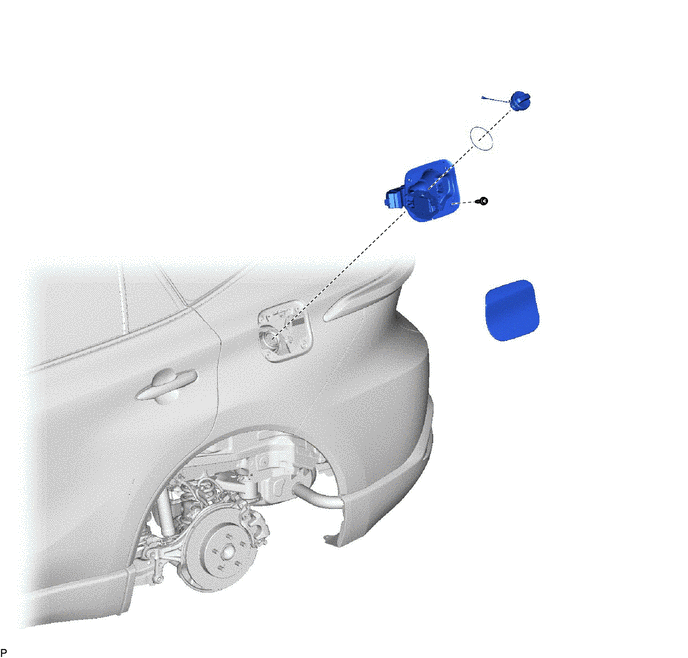

ILLUSTRATION
| *1 | FUEL FILLER OPENING LID ASSEMBLY | *2 | FUEL TANK CAP ASSEMBLY |
| *3 | FUEL FILLER OPENING LID SUB-ASSEMBLY | *4 | FUEL INLET BOX RING |
