AUDIO / VIDEO  LUGGAGE SPEAKER  INSTALLATION

86150 1.INSTALL NO. 1 SPEAKER ASSEMBLY WITH BOX

NOTICE:

Do not touch the speaker cone.

a.

Engage the 2 guides to temporarily install the No. 1 speaker assembly with box.

b.

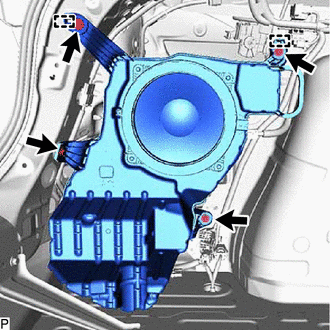

Install the rear No. 2 speaker assembly with the 4 bolts.

HINT:

Install the bolts in the order shown in the illustration.

c.

Connect the connector.

64740C 2.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

62552F 3.INSTALL REAR SEAT SIDE GARNISH LH

71304C 4.INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY LH

73706 5.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

62332C 6.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

58467H 7.INSTALL NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

67918A 8.INSTALL REAR DOOR SCUFF PLATE LH

58577E 9.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

10.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY RH (for SFTM Made)

11.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY RH (for GTMC Made)

58387B 12.INSTALL REAR FLOOR FINISH PLATE

64779 13.INSTALL SPARE WHEEL COVER TRAY

58417 14.INSTALL REAR NO. 3 FLOOR BOARD

15.INSTALL REAR SEATBACK ASSEMBLY LH (for SFTM Made)

16.INSTALL REAR SEATBACK ASSEMBLY LH (for GTMC Made)

72693 17.INSTALL REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

72693 18.INSTALL REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

19.INSTALL REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

20.INSTALL REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

71940A 21.INSTALL REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

71940A 22.INSTALL REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

58410B 23.INSTALL DECK BOARD ASSEMBLY
