AUDIO / VIDEO  LUGGAGE SPEAKER  REMOVAL

58410B 1.REMOVE DECK BOARD ASSEMBLY

71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

4.REMOVE REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

5.REMOVE REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

8.REMOVE REAR SEATBACK ASSEMBLY LH (for SFTM Made)

9.REMOVE REAR SEATBACK ASSEMBLY LH (for GTMC Made)

58417 10.REMOVE REAR NO. 3 FLOOR BOARD

64779 11.REMOVE SPARE WHEEL COVER TRAY

58387B 12.REMOVE REAR FLOOR FINISH PLATE

13.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for SFTM Made)

14.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for GTMC Made)

58577E 15.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

67918A 16.REMOVE REAR DOOR SCUFF PLATE LH

58467H 17.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

62332C 18.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

73706 19.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

71304C 20.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

62552F 21.REMOVE REAR SEAT SIDE GARNISH LH

64740C 22.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

86150 23.REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

NOTICE:

Do not touch the speaker cone.

a.

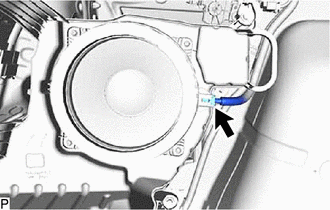

Disconnect the connector.

b.

Remove the 4 bolts.

c.

Disengage the 2 guides and remove the No. 1 speaker assembly with box.
