PARK ASSIST / MONITORING  CLEARANCE WARNING BUZZER(for Rear)  COMPONENTS

ILLUSTRATION

*A	for SFTM Made	*B	for Gasoline Model
*C	for HV Model	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR CENTER SEAT OUTER BELT ASSEMBLY
*3	REAR SEAT CENTER HEADREST ASSEMBLY	*4	REAR SEAT CUSHION ASSEMBLY
*5	REAR SEAT CUSHION LOCK HOOK	*6	REAR SEAT HEADREST ASSEMBLY
*7	REAR SEATBACK ASSEMBLY RH	*8	Clip
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

ILLUSTRATION

*A	for GTMC Made	*B	for Gasoline Model
*C	for HV Model	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR CENTER SEAT OUTER BELT ASSEMBLY
*3	REAR SEAT CENTER HEADREST ASSEMBLY	*4	REAR SEAT CUSHION ASSEMBLY
*5	REAR SEAT CUSHION LOCK HOOK	*6	REAR SEAT HEADREST ASSEMBLY
*7	REAR SEATBACK ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

ILLUSTRATION

*A	for SFTM Made	-	-
*1	BATTERY HOLE COVER	*2	REAR FLOOR FINISH PLATE
*3	REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE	*4	REAR NO. 2 FLOOR BOARD
*5	REAR SEATBACK BOARD CARPET ASSEMBLY LH	*6	SPARE WHEEL COVER TRAY
*7	Clip	-	-
●	Non-reusable part	-	-

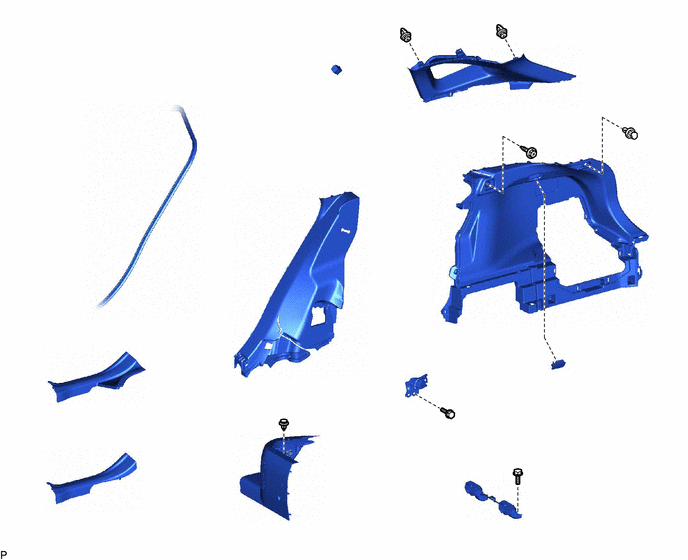

ILLUSTRATION

*A	for Gasoline Model	*B	for HV Model
*1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH	*2	DECK TRIM SIDE PANEL ASSEMBLY RH
*3	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	*4	NO. 2 BATTERY SERVICE COVER BOARD
*5	NO. 2 CLEARANCE WARNING BUZZER	*6	REAR DOOR OPENING TRIM WEATHERSTRIP RH
*7	REAR DOOR SCUFF PLATE RH	*8	REAR SEAT SIDE GARNISH RH
*9	REAR SEATBACK HINGE SUB-ASSEMBLY RH	*10	ROOF SIDE INNER GARNISH ASSEMBLY RH
*11	CLIP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
