RM38N0EC _56 Audio / Visual / Telematics _111822 AUDIO / VIDEO _0500652 STEREO COMPONENT AMPLIFIER A

AUDIO / VIDEO STEREO COMPONENT AMPLIFIER INSTALLATION

PROCEDURE

Hide Display 86280K 1.INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

Hide Display 86286B 2.INSTALL NO. 2 AMPLIFIER BRACKET

Install the No. 2 amplifier bracket with the 2 screws.

Torque:: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

Hide Display 86285B 3.INSTALL NO. 1 AMPLIFIER BRACKET

Install the No. 1 amplifier bracket with the 2 screws.

Torque:: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

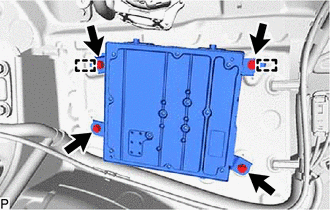

Hide Display 4.INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

Engage the 2 guides.

Install the stereo component amplifier assembly with bracket with the 4 bolts.

Torque:: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

HINT:: Install the bolts in the order shown in the illustration.

Connect the 2 connectors.

Hide Display 64730B 5.INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0213,

Hide Display 62551F 6.INSTALL REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0262,

Hide Display 81330 7.INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>LUGGAGE COMPARTMENT ROOM LIGHT>INSTALLATION202111,999999,_58,_111833,_0499875,RM100000001Z0ID_01_0030,

Hide Display 73705 8.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>INSTALLATION202203,999999,_58,_111840,_0501519,RM1000000022LL7_01_0001,

Hide Display 71303C 9.INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0269,

Hide Display 58466J 10.INSTALL NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0270,

Hide Display 67917A 11.INSTALL REAR DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0036,

Hide Display 62331C 12.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202111,999999,_59,_111831,_0501460,RM100000001Z660_01_0018,

Hide Display 58577E 13.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0265,

Hide Display 14.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY LH (for SFTM Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>INSTALLATION202203,999999,_58,_111832,_0501281,RM1000000022776_01_0101,

Hide Display 15.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY LH (for GTMC Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>INSTALLATION202203,999999,_58,_111832,_0501281,RM1000000022776_01_0104,

Hide Display 58387B 16.INSTALL REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0204,

Hide Display 64779 17.INSTALL SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0274,

Hide Display 65351A 18.INSTALL BATTERY HOLE COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0245,

Hide Display 58416K 19.INSTALL REAR NO. 2 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0272,

Hide Display 20.INSTALL REAR SEATBACK ASSEMBLY RH (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0036,

Hide Display 21.INSTALL REAR SEATBACK ASSEMBLY RH (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0003,

Hide Display 73350C 22.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0037,

Hide Display 73350C 23.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0022,

Hide Display 72693 24.INSTALL REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0038,

Hide Display 72693 25.INSTALL REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0010,

Hide Display 26.INSTALL REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0025,

Hide Display 27.INSTALL REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0043,

Hide Display 71960B 28.INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0051,

Hide Display 71960B 29.INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0042,

Hide Display 71940A 30.INSTALL REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>INSTALLATION202111,999999,_58,_111839,_0500762,RM100000001Z3BH_01_0052,

Hide Display 71940A 31.INSTALL REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>INSTALLATION202203,999999,_58,_111839,_0524495,RM10000000220ZZ_01_0034,

Hide Display 58410B 32.INSTALL DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0228,
