AUDIO / VIDEO STEREO COMPONENT AMPLIFIER REMOVAL

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0045,

Hide Display 71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0045,

Hide Display 71960B 4.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0046,

Hide Display 71960B 5.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0046,

Hide Display 6.REMOVE REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

Hide Display 7.REMOVE REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0042,

Hide Display 72693 8.REMOVE REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,

Hide Display 72693 9.REMOVE REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

Hide Display 73350C 10.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0024,

Hide Display 73350C 11.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0024,

Hide Display 12.REMOVE REAR SEATBACK ASSEMBLY RH (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0011,

Hide Display 13.REMOVE REAR SEATBACK ASSEMBLY RH (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0011,

Hide Display 58416K 14.REMOVE REAR NO. 2 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0251,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0251,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0251,

Hide Display 65351A 15.REMOVE BATTERY HOLE COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0243,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0243,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0243,

Hide Display 64779 16.REMOVE SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0253,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0253,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0253,

Hide Display 58387B 17.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0203,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0203,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0203,

Hide Display 18.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY LH (for SFTM Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0059,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0059,

Hide Display 19.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY LH (for GTMC Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0066,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0066,

Hide Display 58577E 20.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0200,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0200,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0200,

Hide Display 62331C 21.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER>REMOVAL202203,999999,_58,_111830,_0501510,RM1000000022PBV_01_0303,

Hide Display 67917A 22.REMOVE REAR DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0012,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0012,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0012,

Hide Display 58466J 23.REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0255,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0255,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0255,

Hide Display 71303C 24.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0217,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0217,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0217,

Hide Display 73705 25.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4_01_0002,

Hide Display 81330 26.REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>LUGGAGE COMPARTMENT ROOM LIGHT>REMOVAL202111,999999,_58,_111833,_0499875,RM100000001Z0IC_01_0029,

Hide Display 62551F 27.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0220,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0220,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0220,

Hide Display 64730B 28.REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0206,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0206,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0206,

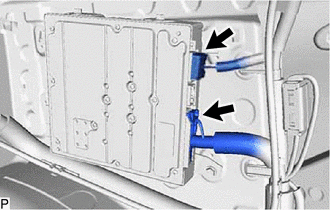

Hide Display 29.REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

Disconnect the 2 connectors.

Remove the 4 bolts.

Disengage the 2 guides to remove the stereo component amplifier assembly with bracket.

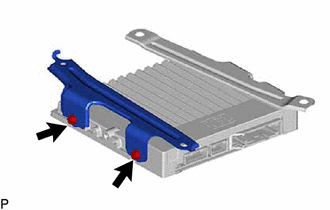

Hide Display 86285B 30.REMOVE NO. 1 AMPLIFIER BRACKET

Remove the 2 screws and No. 1 amplifier bracket.

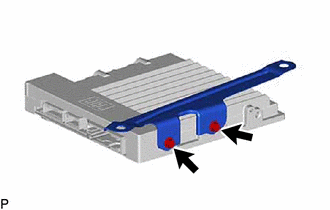

Hide Display 86286B 31.REMOVE NO. 2 AMPLIFIER BRACKET

Remove the 2 screws and No. 2 amplifier bracket.

Hide Display 86280K 32.REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
