RM38N0EC _56 Audio / Visual / Telematics _111822 AUDIO / VIDEO _0500663 NOISE FILTER A

AUDIO / VIDEO NOISE FILTER REMOVAL

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0045,

Hide Display 71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0045,

Hide Display 4.REMOVE REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

Hide Display 5.REMOVE REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0042,

Hide Display 72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,

Hide Display 72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

Hide Display 8.REMOVE REAR SEATBACK ASSEMBLY LH (for SFTM Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0012,

Hide Display 9.REMOVE REAR SEATBACK ASSEMBLY LH (for GTMC Made)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0012,

Hide Display 58417 10.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0250,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0250,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0250,

Hide Display 64779 11.REMOVE SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0253,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0253,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0253,

Hide Display 58387B 12.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0203,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0203,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0203,

Hide Display 13.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for SFTM Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0058,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0058,

Hide Display 14.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for GTMC Made)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0065,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0065,

Hide Display 58577E 15.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0200,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0200,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0200,

Hide Display 67918A 16.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0012,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0012,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0012,

Hide Display 58467H 17.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0254,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0254,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0254,

Hide Display 62332C 18.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202203,202303,_58,_111840,_0501516,RM1000000022GHE_01_0263,202303,202406,_58,_111840,_0501516,RM100000002BICP_01_0263,202406,999999,_58,_111840,_0501516,RM100000002MX0W_01_0263,

Hide Display 73706 19.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4_01_0002,

Hide Display 71304C 20.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0217,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0217,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0217,

Hide Display 62552F 21.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0220,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0220,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0220,

Hide Display 64740C 22.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0223,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0223,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0223,

Hide Display 86011V 23.REMOVE RADIO SETTING CONDENSER

NOTICE:: When a terminal cover is removed, the radio setting condenser must be replaced because the terminal covers and condenser are supplied as a set.

a.

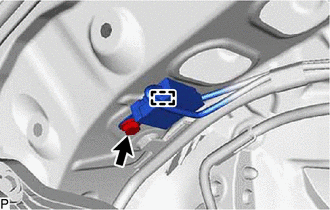

E474842

Remove the bolt.

b.

Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.

c.

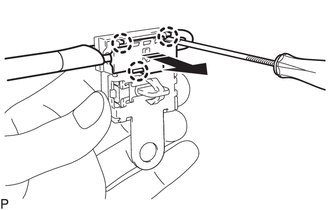

E446538C01

0,0 0,0 false

V113147

Remove in this Direction

Using a screwdriver, disengage the 3 claws and remove the terminal cover with wire harness from the condenser as shown in the illustration.

d.

E446539

Using a screwdriver, bend back and break off the claw as shown in the illustration.

e.

Remove the terminal cover from the wire harness.

NOTICE:: ·

Make sure to hold the crimped side of the terminal when disconnecting the wire harness from the terminal cover.

·

Make sure not to bend the exposed wire when disconnecting the wire harness from the terminal cover.

·

Check for deformation of the terminal after the wire harness has been removed from the terminal cover.
