DOOR / HATCH  FUEL LID LOCK CONTROL CABLE ASSEMBLY  REMOVAL

58410B 1.REMOVE DECK BOARD ASSEMBLY

71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for SFTM Made)

71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY (for GTMC Made)

4.REMOVE REAR SEAT CUSHION ASSEMBLY (for SFTM Made)

5.REMOVE REAR SEAT CUSHION ASSEMBLY (for GTMC Made)

72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK (for SFTM Made)

72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK (for GTMC Made)

8.REMOVE REAR SEATBACK ASSEMBLY LH (for SFTM Made)

9.REMOVE REAR SEATBACK ASSEMBLY LH (for GTMC Made)

58417 10.REMOVE REAR NO. 3 FLOOR BOARD

64779 11.REMOVE SPARE WHEEL COVER TRAY

58387B 12.REMOVE REAR FLOOR FINISH PLATE

13.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for SFTM Made)

14.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for GTMC Made)

58577E 15.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

67918A 16.REMOVE REAR DOOR SCUFF PLATE LH

62332C 17.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

73706 18.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

71304C 19.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

62552F 20.REMOVE REAR SEAT SIDE GARNISH LH

64740C 21.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

86150 22.REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX (for 9 Speakers)

67914B 23.REMOVE FRONT DOOR SCUFF PLATE LH

62112A 24.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

62312B 25.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

73233 26.REMOVE LAP BELT OUTER ANCHOR COVER

73220 27.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

62414A 28.REMOVE CENTER PILLAR LOWER GARNISH LH

55606 29.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

77306 30.DISCONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

77306 31.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

a.

Disconnect the fuel lid lock control cable sub-assembly and remove the fuel lid lock open lever sub-assembly.

77035 32.REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

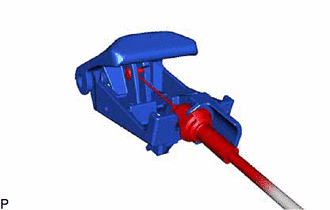

a.

2.49,1.896 2.167,1.896 true 1.969,1.792 2.208,2 0.24,0.208 10 false *a

*a

Stopper

Release the stopper and disengage the claw.

b.

Disconnect the fuel lid lock control cable sub-assembly.

c.

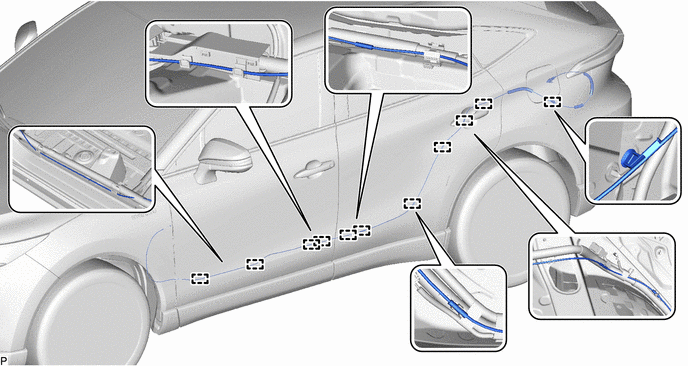

Turn back the floor carpet so that the fuel lid lock control cable sub-assembly can be removed.

d.

Disengage each clamp and remove the fuel lid lock control cable sub-assembly.
