RM38N0EC _51 Engine / Hybrid System _111793 M20C-FKS, M20D-FKS FUEL _0504183 FUEL PUMP ECU A

M20C-FKS, M20D-FKS FUEL FUEL PUMP ECU REMOVAL

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0045,

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0045,

Hide Display 3.REMOVE REAR SEAT CUSHION ASSEMBLY

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0042,

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,

Hide Display 5.REMOVE REAR SEATBACK ASSEMBLY LH

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0012,

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0012,

Hide Display 58417 6.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0250,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0250,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0250,

Hide Display 64779 7.REMOVE SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0253,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0253,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0253,

Hide Display 58387B 8.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0203,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0203,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0203,

Hide Display 9.SEPARATE REAR SEATBACK BOARD CARPET ASSEMBLY RH

for GTMC Made: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0065,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0065,

for SFTM Made: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Luggage Compartment)>REMOVAL202203,202406,_58,_111832,_0501281,RM1000000022775_01_0058,202406,999999,_58,_111832,_0501281,RM100000002MT4S_01_0058,

Hide Display 58577E 10.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0200,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0200,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0200,

Hide Display 67918A 11.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0013,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0013,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0013,

Hide Display 62332C 12.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL202111,999999,_59,_111831,_0501460,RM100000001Z661_02_0010,

Hide Display 73706 13.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4_01_0002,

Hide Display 71304C 14.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0217,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0217,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0217,

Hide Display 62552F 15.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0220,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0220,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0220,

Hide Display 64740C 16.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0223,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0223,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0223,

Hide Display 89571 17.REMOVE FUEL PUMP CONTROL ECU

a.

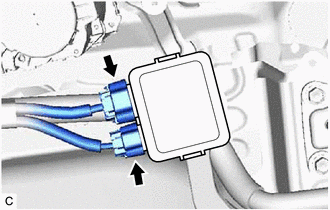

A471946

Disconnect the 2 fuel pump control ECU connectors.

b.

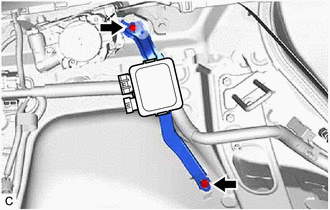

A471947

Remove the 2 bolts and fuel pump control ECU from the vehicle body.

NOTICE:: Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

Hide Display 89573 18.REMOVE FUEL PUMP CONTROL ECU BRACKET

a.

A499846

Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
