SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Front Door) INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
8983AA
1.INSTALL SIDE AIRBAG PRESSURE SENSOR
Check that the ignition switch is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
- CAUTION:
-
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

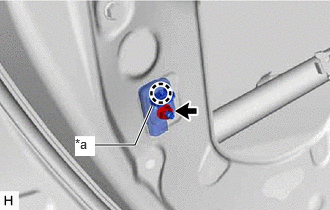

| *a | Stopper |
Insert the side airbag pressure sensor stopper into the door hole, engage the claw and install the side airbag pressure sensor to the front door panel with the nut.
- Torque:
- 9.0 N*m (92 kgf*cm, 80 in.*lbf)
- NOTICE:
- ·
If the side airbag pressure sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
·When installing the side airbag pressure sensor, make sure that the SRS wiring does not interfere with or is not pinched between other parts.
·Make sure that the side airbag pressure sensor stopper is securely inserted into the door hole.
·Keep the stud bolt and waterproof rubber seal free of foreign matter.
Connect the connector to the side airbag pressure sensor.
- NOTICE:
-
When connecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
Check that there is no looseness in the installed parts of the side airbag pressure sensor.
67832
2.INSTALL FRONT DOOR SERVICE HOLE COVER
67831D
3.INSTALL FRONT DOOR SERVICE HOLE COVER CLIP
67602
4.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
81230
5.INSTALL COURTESY LIGHT ASSEMBLY
74222A
6.INSTALL FRONT DOOR ARMREST COVER
69278B
7.INSTALL FRONT DOOR INSIDE HANDLE BEZEL
8.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503321,RM100000001ZE56_01_0015,
for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0015,
65351A
9.INSTALL BATTERY HOLE COVER (for HV Model)
58416K
10.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)
11. PERFORM DIAGNOSTIC SYSTEM CHECK
12.INSPECT SRS WARNING LIGHT
13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
14.INSPECT POWER WINDOW OPERATION
