RM38N0EC _58 Vehicle Interior _111838 SUPPLEMENTAL RESTRAINT SYSTEMS _0502520 STEERING PAD A

SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  INSTALLATION


PROCEDURE

Hide 45130 1.INSTALL HORN BUTTON ASSEMBLY

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.

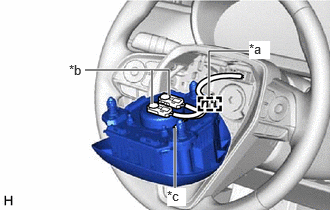

B626959C02
1.76,0.99 1.76,0.729 1.76,0.729 0.885,0.729 true 1.583,1.083 1.583,0.729 true 1.823,1.333 1.823,1.979 true 2.177,1.01 2.177,0.531 2.177,0.531 2.594,0.531 true 0.719,0.646 0.938,0.844 0.219,0.198 10 false *b 1.74,1.958 1.938,2.146 0.198,0.188 10 true *c 2.594,0.427 2.813,0.615 0.219,0.188 10 true *a
*a Wire Harness Clamp
*b Airbag Connector
*c Horn Connector


Engage the wire harness clamp.

HINT:

Be sure to engage the wire harness clamp until it is locked.



d.

Connect the 2 airbag connectors to the horn button assembly.

NOTICE:
·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Be sure to connect the connectors to each corresponding color.



HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



e.

Connect the horn connector to the horn button assembly.


f.
B528837C01
1.25,2.521 1.583,2.396 true 1.135,1.51 1.26,1.021 1.26,1.021 2.24,1.479 true 1.031,0.927 1.219,1.104 0.188,0.177 10 true *a 1.042,2.427 1.229,2.625 0.188,0.198 10 true *b
*a Upper Pin
*b Lower Pin


Push the horn button assembly to engage the 3 pins carefully and install the horn button assembly.

NOTICE:
·

Make sure that the pins are securely inserted into the steering wheel assembly holes.

·

Make sure to engage the 2 upper pins first.

·

Make sure that the horn button assembly is securely installed.




Hide 45186 2.INSTALL LOWER NO. 2 STEERING WHEEL COVER

a.

Engage each claw to install the 3 lower No. 2 steering wheel covers.

B626968C01
0.031,0.073 0.26,0.292 0.229,0.219 10 false *A 2.51,0.104 2.74,0.323 0.229,0.219 10 false *B 4.896,0.094 5.135,0.323 0.24,0.229 10 false *C
*A for LH Side *B for RH Side
*C for Under Side - -



Hide 45130 6.INSPECT HORN BUTTON ASSEMBLY

a.

Make sure that the horn sounds.

If the horn does not sound, inspect the horn system.

Click hereVehicle Exterior>HORN>HORN SYSTEM>PROBLEM SYMPTOMS TABLE


Hide 9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
