SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for LH Side)  INSPECTION

Measure the resistance according to the value(s) in the table below.

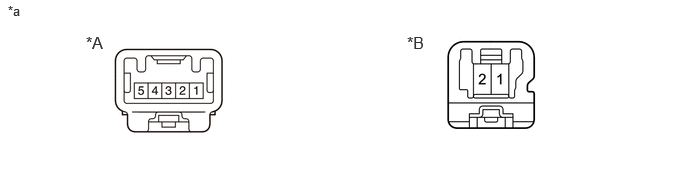

0.896,0.344 1.208,0.583 0.313,0.24 12 false *A 4.24,0.344 4.635,0.656 0.396,0.313 12 false *B 0.083,0.031 0.396,0.188 0.313,0.156 10 false *a

*A	for SFTM Made	*B	for GTMC Made
*a	Component without harness connected (Rear Seat Inner with Center Belt Assembly LH (for LH))	-	-

Standard Resistance (for SFTM Made):

Tester Connection	Condition	Specified Condition
5 - 4	Rear LH seat belt unfastened	Below 1 Ω
	Rear LH seat belt fastened	10 kΩ or higher

Standard Resistance (for GTMC Made):

Tester Connection	Condition	Specified Condition
2 - 1	Rear LH seat belt unfastened	Below 1 Ω
	Rear LH seat belt fastened	10 kΩ or higher

If the result is not as specified, replace the rear seat inner with center belt assembly LH (for LH).

0.052,0.063 0.26,0.292 0.208,0.229 10 false *a

*a	Component without harness connected (Rear Seat Inner with Center Belt Assembly LH (for Center))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
4 - 3	Rear center seat belt unfastened	Below 1 Ω
	Rear center seat belt fastened	10 kΩ or higher

If the result is not as specified, replace the rear seat inner with center belt assembly LH (for Center).
