RM38N0EC _51 Engine / Hybrid System _111792 M20C-FKS, M20D-FKS INTAKE / EXHAUST _0503717 INTAKE MANIFOLD A

M20C-FKS, M20D-FKS INTAKE / EXHAUST  INTAKE MANIFOLD  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 17177 1.INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET

a.

Install a new No. 1 intake manifold to head gasket to the intake manifold.


Hide 17111 2.INSTALL INTAKE MANIFOLD

a.

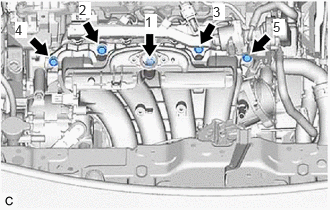

A477486N01
2.844,0.198 2.969,0.365 0.125,0.167 10 true 5 0.156,0.229 0.281,0.396 0.125,0.167 10 true 4 2.219,0.042 2.344,0.208 0.125,0.167 10 true 3 0.823,0.021 0.948,0.188 0.125,0.167 10 true 2 1.51,0.146 1.635,0.313 0.125,0.167 10 true 1

w/o Stud Bolt:

i.

Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.


ii.

Tighten the 5 bolts in the order shown in the illustration.

Torque:
24 N*m (245 kgf*cm, 18 ft.*lbf)



b.

w/ Stud Bolt:

i.

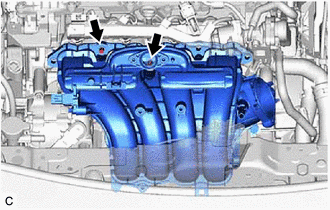

A511996

Temporarily install the intake manifold to the cylinder head sub-assembly.


ii.

Using an E8 "TORX" socket wrench, install the 2 stud bolts.

Torque:
6.5 N*m (66 kgf*cm, 58 in.*lbf)


iii.

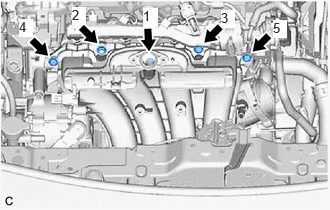

A477482N02
1.49,0.083 1.646,0.281 0.156,0.198 10 true 1 0.75,0.073 0.896,0.26 0.146,0.188 10 true 2 2.302,0.104 2.448,0.292 0.146,0.188 10 true 3 0.198,0.198 0.344,0.385 0.146,0.188 10 true 4 2.844,0.208 2.99,0.396 0.146,0.188 10 true 5

Temporarily install the 3 bolts and 2 nuts.


iv.

Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

Torque:
24 N*m (245 kgf*cm, 18 ft.*lbf)



Hide 23820 3.CONNECT NO. 2 FUEL VAPOR FEED HOSE

a.

Connect the No. 1 fuel vapor feed hose to the intake manifold.


Hide 17138B 4.INSTALL INTAKE MANIFOLD STAY

a.
A477480N02
2.063,1.427 2.188,1.594 0.125,0.167 10 true B 1.594,1.573 1.719,1.74 0.125,0.167 10 true A

Engage the guide to install the intake manifold stay.


b.

Install the bolt (B).

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


c.

Using an 8 mm socket wrench, install the bolt (A).

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


Hide 16279 5.CONNECT NO. 3 WATER BY-PASS PIPE

a.

Using an 8 mm socket wrench, connect the No. 3 water by-pass pipe to the intake manifold with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


b.

Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.


Hide 82121 6.CONNECT ENGINE WIRE

a.

Engage the wire harness clamp to connect the engine wire.


b.

Install the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


c.

Engage the 2 wire harness clamps to connect the engine wire.


d.

Install the 2 bolts.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


e.

Connect the 2 connectors.
