RM38N0EC
_51
Engine / Hybrid System
_111792
M20C-FKS, M20D-FKS INTAKE / EXHAUST
_0503717
INTAKE MANIFOLD
K

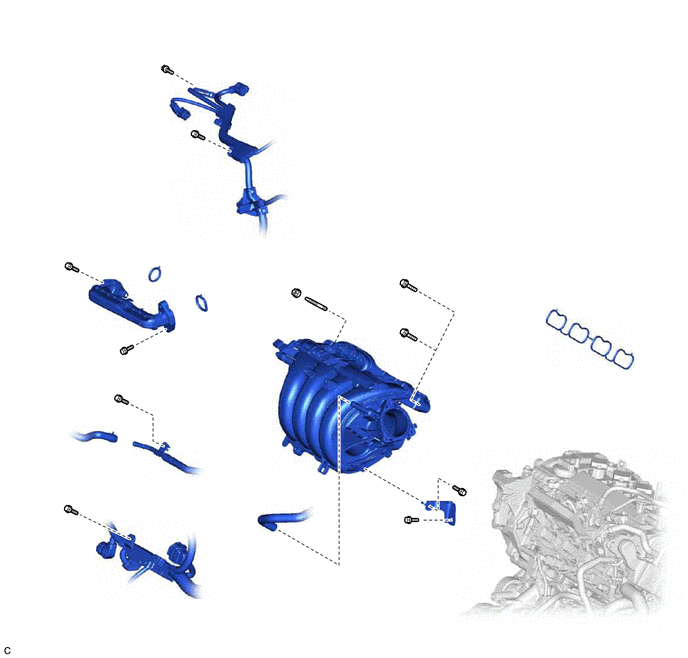

M20C-FKS, M20D-FKS INTAKE / EXHAUST INTAKE MANIFOLD COMPONENTS
ILLUSTRATION
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | EGR INLET GASKET | *2 | ENGINE WIRE |
| *3 | INTAKE MANIFOLD | *4 | INTAKE MANIFOLD STAY |
| *5 | NO. 2 FUEL VAPOR FEED HOSE | *6 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *7 | NO. 3 WATER BY-PASS PIPE | *8 | EGR VALVE ADAPTER GASKET |
| *9 | NO. 1 EGR PIPE SUB-ASSEMBLY | *10 | NO. 5 WATER BY-PASS HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
