THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function, Gasoline Model)  PARTS LOCATION

ILLUSTRATION

*A	w/ Power Back Door System	*B	w/o Power Back Door System
*C	w/ Hands Free Power Back Door	-	-

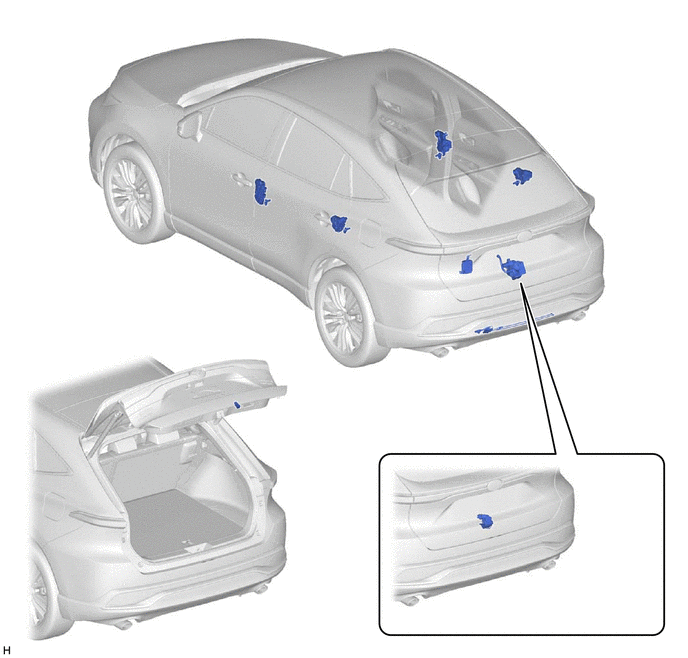

*1	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH	*2	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
*3	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH	*4	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
*5	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)	*6	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)
*7	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)	*8	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)
*9	MULTIPLEX NETWORK DOOR ECU	*10	DOOR CONTROL SWITCH ASSEMBLY
*11	BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY	*12	KICK DOOR CONTROL SENSOR

ILLUSTRATION

*1	FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR	*2	FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR

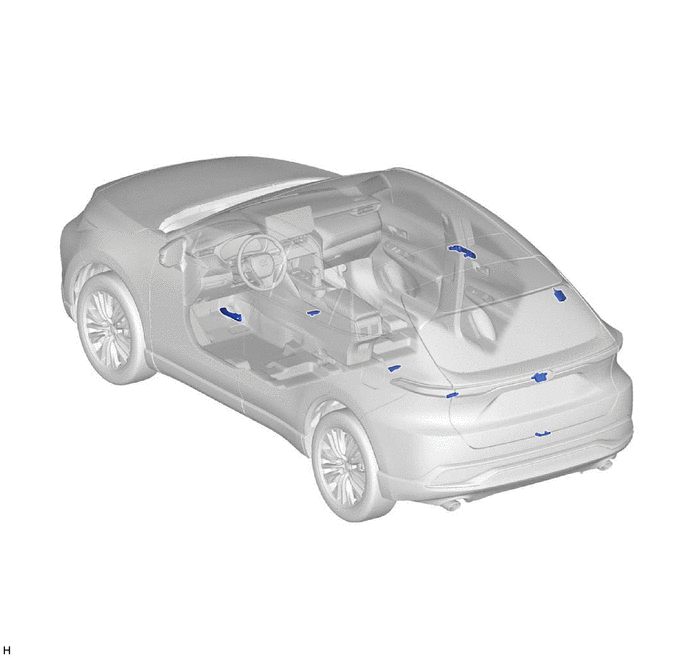

*3	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)	*4	NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)
*5	NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)	*6	ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT)
*7	ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER	*8	LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH - LOCK SWITCH - OPEN SWITCH

ILLUSTRATION

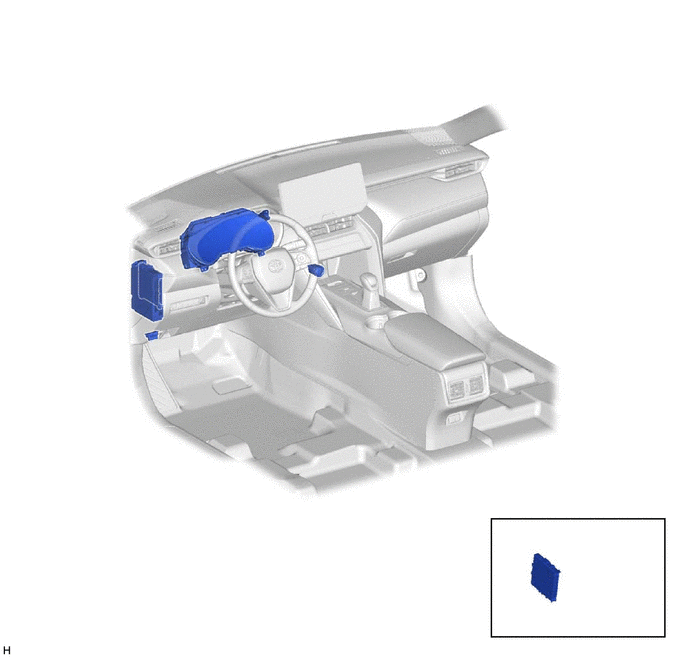

*1	ENGINE SWITCH	*2	POWER DISTRIBUTION BOX ASSEMBLY - AM2 FUSE - ECU-DCC NO. 2 FUSE
*3	DLC3	*4	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*5	COMBINATION METER ASSEMBLY	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*a	Refer to Service Bulletin for the installation position of the part.	-	-
