AUDIO / VIDEO  STEREO JACK ADAPTER ASSEMBLY  INSTALLATION

86190C 1.INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

a.

0,0 0,0 false

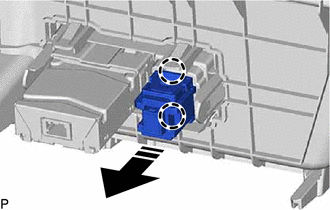

Install in this Direction

Engage the 2 claws to install the No. 1 stereo jack adapter assembly as shown in the illustration.

2.INSTALL UPPER CONSOLE BOX (w/o Wireless Charger)

3.INSTALL WIRELESS CHARGER ASSEMBLY (w/ Wireless Charger)

58925B 4.INSTALL UPPER CONSOLE BOX INSULATOR

55900 5.INSTALL AIR CONDITIONING CONTROL ASSEMBLY
