DRIVE SHAFT / PROPELLER SHAFT
_0503131
FRONT DRIVE SHAFT ASSEMBLY
G
DRIVE SHAFT / PROPELLER SHAFT FRONT DRIVE SHAFT ASSEMBLY INSPECTION
PROCEDURE
1.INSPECT FRONT DRIVE SHAFT ASSEMBLY
a.
Check that there is no excessive play in the radial direction of the outboard joint.
b.
Check that the inboard joint slides smoothly in the thrust direction.
c.
Check that there is no excessive play in the radial direction of the inboard joint.
d.
Check the boots for damage.
e.
for Gasoline Model 2WD, HV Model:
i.
0.167,0.167 0.542,0.406
0.375,0.24
10
false
*A
0.115,1.385 0.49,1.625
0.375,0.24
10
false
*B
1.479,0.917 1.635,1.115
0.156,0.198
10
false
A
0.688,0.667 0.948,0.979
0.26,0.313
10
false
B
1.531,2.854 1.688,3.052
0.156,0.198
10
false
A
0.25,2.635 0.51,2.948
0.26,0.313
10
false
B
| *A | for LH Side |
| *B | for RH Side |

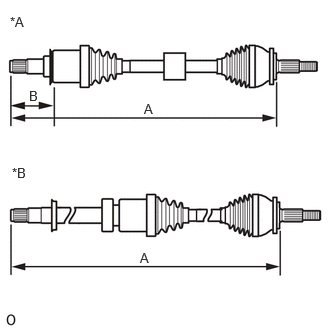

Check whether the drive shaft dimension (A) and (B) are within specification.
- NOTICE:
-
Keep the drive shaft assembly level during inspection.
- Dimension (A)(for Type A):
for LH Side 605.2 mm (1.99 ft.) for RH Side 905.0 mm (2.97 ft.)
- Dimension (B)(for Type A):
for LH Side 87.9 to 88.5 mm (3.47 to 3.48 in.) for RH Side 83.7 to 84.7 mm (3.30 to 3.33 in.)
- Dimension (A)(for Type B):
for LH Side 607.6 mm (1.99 ft.) for RH Side 906.4 mm (2.97 ft.)
- Dimension (B)(for Type B):
for LH Side 88.2 mm (3.47 in.) for RH Side 83.7 to 84.7 mm (3.30 to 3.33 in.)
f.
for Gasoline Model AWD:
i.
0.125,1.719 0.438,1.917
0.313,0.198
10
false
*B
0.104,0.146 0.417,0.344
0.313,0.198
10
false
*A
1.5,1.052 1.958,1.25
0.458,0.198
10
false
A
1.458,2.604 1.917,2.802
0.458,0.198
10
false
A
0.302,0.917 0.458,1.115
0.156,0.198
10
false
B
| *A | for LH Side |
| *B | for RH Side |

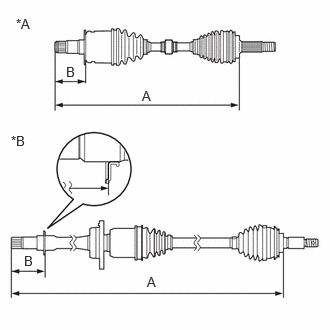

Check whether the drive shaft dimension (A) and (B) are within specification.
- NOTICE:
-
Keep the drive shaft assembly level during inspection.
- Dimension (A):
for LH Side 605.2 mm (1.99 ft.) for RH Side 913.5 mm (3.00 ft.)
- Dimension (B):
for LH Side 87.9 to 88.5 mm (3.47 to 3.48 in.) for RH Side -
