POWER SEAT SWITCH(for GTMC Made)
G
SEAT POWER SEAT SWITCH(for GTMC Made) INSPECTION
PROCEDURE
84922C
1.INSPECT FRONT POWER SEAT SWITCH LH (for Driver Side)
a.
w/ Seat Position Memory System
i.
| *a | Slide Switch (Front) |
| *b | Slide Switch (Rear) |
| *c | Front Vertical Switch (Up) |
| *d | Front Vertical Switch (Down) |
| *e | Lifter Switch (Up) |
| *f | Lifter Switch (Down) |
| *g | Reclining Switch (Front) |
| *h | Reclining Switch (Rear) |
| *i | Lumbar Support Switch (Hold) |
| *j | Lumbar Support Switch (Release) |
| *k | Component without harness connected
(Front Power Seat Switch LH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Slide Switch Tester Connection Condition Specified Condition 7 - 20 Slide switch pressed
(Front)Below 1 Ω 7 - 20 Off 10 kΩ or higher 6 - 20 6 - 20 Slide switch pressed
(Rear)Below 1 Ω
Front Vertical Switch Tester Connection Condition Specified Condition 4 - 20 Front vertical switch pressed
(Up)Below 1 Ω 4 - 20 Off 10 kΩ or higher 5 - 20 5 - 20 Front vertical switch pressed
(Down)Below 1 Ω
Lifter Switch Tester Connection Condition Specified Condition 3 - 20 Lifter switch pressed
(Up)Below 1 Ω 3 - 20 Off 10 kΩ or higher 8 - 20 8 - 20 Lifter switch pressed
(Down)Below 1 Ω
Reclining Switch Tester Connection Condition Specified Condition 2 -20 Reclining switch pressed
(Front)Below 1 Ω 2 - 20 Off 10 kΩ or higher 1 - 20 1 -20 Reclining switch pressed
(Rear)Below 1 Ω
Lumbar Support Switch Tester Connection Condition Specified Condition 14 - 20 Lumbar support switch pressed
(Hold)Below 1 Ω 17 - 20 Lumbar support switch pressed
(Release)Below 1 Ω 14 - 20 Off 10 kΩ or higher 17 - 20
If the result is not as specified, replace the front power seat switch LH.
b.
w/o Seat Position Memory System
i.
| *A | w/o Lumbar Support |
| *B | w/ Lumbar Support |
| *a | Slide Switch (Front) |
| *b | Slide Switch (Rear) |
| *c | Front Vertical Switch (Up) |
| *d | Front Vertical Switch (Down) |
| *e | Lifter Switch (Up) |
| *f | Lifter Switch (Down) |
| *g | Reclining Switch (Front) |
| *h | Reclining Switch (Rear) |
| *i | Lumbar Support Switch (Hold) |
| *j | Lumbar Support Switch (Release) |
| *k | Component without harness connected
(Front Power Seat Switch LH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Slide Switch Tester Connection Condition Specified Condition 4 - 6 Slide switch pressed
(Front)Below 1 Ω 1 - 12 4 - 12 Off 1 - 12 1 - 6 Slide switch pressed
(Rear)4 - 12
Front Vertical Switch Tester Connection Condition Specified Condition 7 - 6 Front vertical switch pressed
(Up)Below 1 Ω 11 - 12 7 - 12 Off 11 - 12 11 - 6 Front vertical switch pressed
(Down)7 - 12
Lifter Switch Tester Connection Condition Specified Condition 8 - 6 Lifter switch pressed
(Up)Below 1 Ω 10 - 12 10 - 12 Off 8 - 12 10 - 6 Lifter switch pressed
(Down)8 - 12
Reclining Switch Tester Connection Condition Specified Condition 3 - 12 Reclining switch pressed
(Front)Below 1 Ω 6 - 7 6 - 11 5 - 6 5 - 12 Off 3 - 12 5 - 12 Reclining switch pressed
(Rear)6 - 10 6 - 8 3 - 6
Lumbar Support Switch (w/ Lumbar Support) Tester Connection Condition Specified Condition 9 - 6 Lumbar support switch pressed
(Hold)Below 1 Ω 2 - 12 2 - 12 Off 9 - 12 2 - 6 Lumbar support switch pressed
(Release)9 - 12
If the result is not as specified, replace the front power seat switch LH.
84922B
2.INSPECT FRONT POWER SEAT SWITCH RH (for Front Passenger Side)
a.

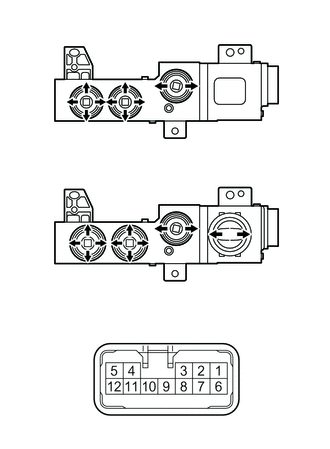

| *a | Slide Switch (Front) |
| *b | Slide Switch (Rear) |
| *c | Reclining Switch (Front) |
| *d | Reclining Switch (Rear) |
| *e | Component without harness connected
(Front Power Seat Switch RH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Slide Switch Tester Connection Condition Specified Condition 4 - 6 Slide switch pressed
(Front)Below 1 Ω 1 - 5 1 - 4 Off 1 - 5 1 - 4 Slide switch pressed
(Rear)5 - 6
Reclining Switch Tester Connection Condition Specified Condition 2 - 6 Reclining switch pressed
(Front)Below 1 Ω 1 - 3 1 - 3 Off 1 - 2 1 - 2 Reclining switch pressed
(Rear)3 - 6
If the result is not as specified, replace the front power seat switch RH.
