FRONT SEAT CUSHION HEATER(for GTMC Made)
K
SEAT FRONT SEAT CUSHION HEATER(for GTMC Made) COMPONENTS

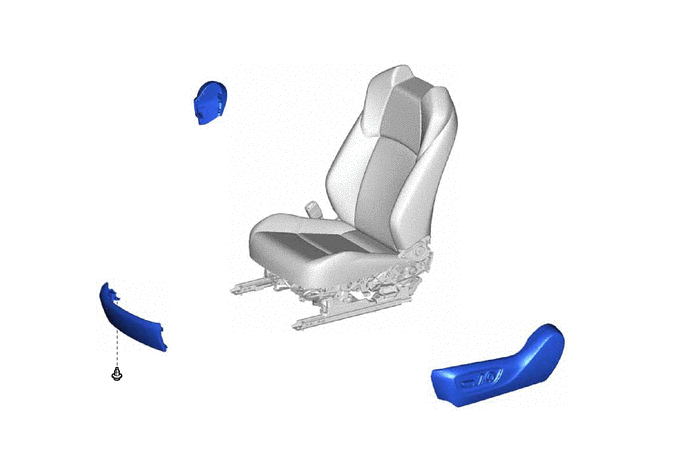

ILLUSTRATION
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT FRONT CUSHION SHIELD |
| *3 | FRONT SEAT INNER CUSHION SHIELD | - | - |

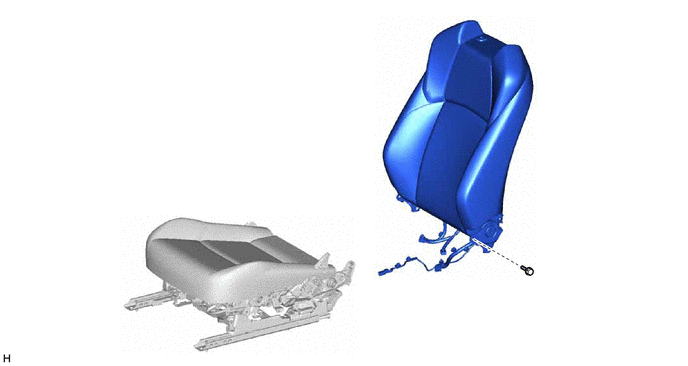

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

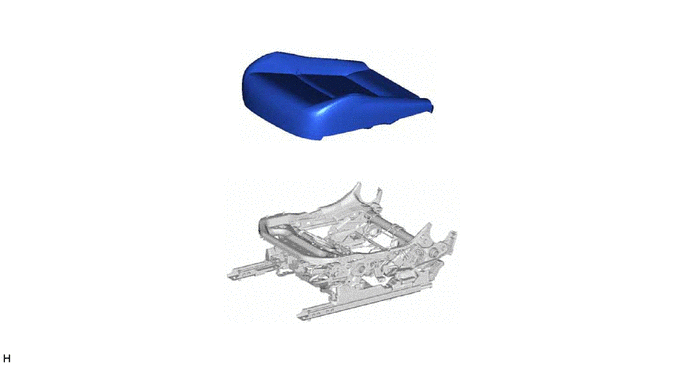

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |

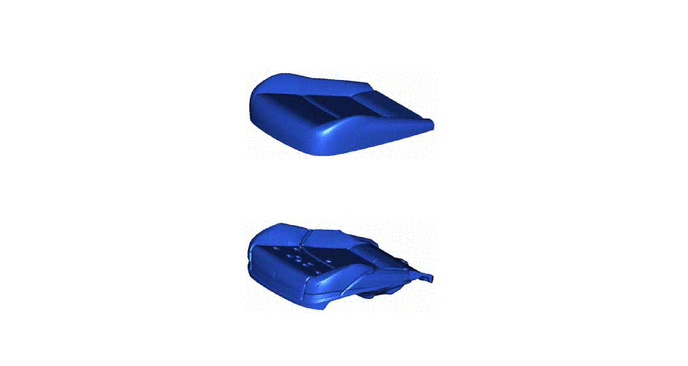

ILLUSTRATION
| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY (SEPARATE TYPE FRONT SEAT CUSHION COVER) | *2 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
