SEAT  FRONT POWER SEAT MOTOR ASSEMBLY  INSPECTION

*A	w/ Memory
*B	w/o Memory

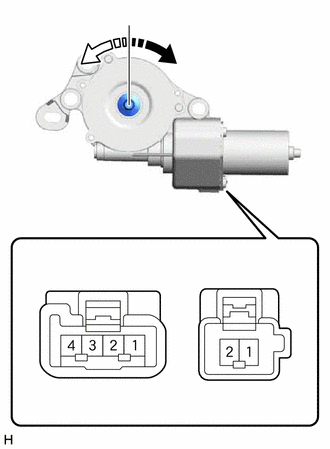

*a	Component without harness connected (Power Seat Lifter Motor Assembly LH)
*b	Clockwise
*c	Counterclockwise
*d	Motor Gear

Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

OK:

w/ Memory

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 4	Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 4 Auxiliary battery negative (-) → Terminal 1	Motor gear rotates clockwise

w/o Memory

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 2	Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 2 Auxiliary battery negative (-) → Terminal 1	Motor gear rotates clockwise

If the result is not as specified, replace the power seat lifter motor assembly LH.

*A	w/ Memory
*B	w/o Memory

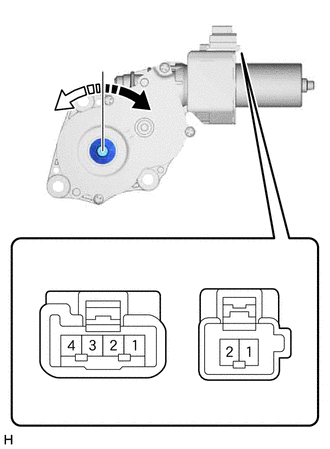

*a	Component without harness connected (Power Seat Tilt Motor Assembly LH)
*b	Clockwise
*c	Counterclockwise
*d	Motor Gear

Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

OK:

w/ Memory

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 4	Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 4 Auxiliary battery negative (-) → Terminal 1	Motor gear rotates clockwise

w/o Memory

Auxiliary Battery Connection	Operational Direction
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 2	Motor gear rotates counterclockwise
Auxiliary battery positive (+) → Terminal 2 Auxiliary battery negative (-) → Terminal 1	Motor gear rotates clockwise

If the result is not as specified, replace the power seat tilt motor assembly LH.
