RM38N0EC _58 Vehicle Interior _111839 SEAT _0525811 FRONT SEAT ASSEMBLY(for GTMC Made Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Power Seat)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 72125D 3.INSTALL REAR UPPER NO. 2 SEAT TRACK COVER

a.
B518996
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the rear upper No. 2 seat track cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 72266C 4.INSTALL SEAT TRACK UPPER RAIL COVER

a.
B518994
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 71874 5.INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.

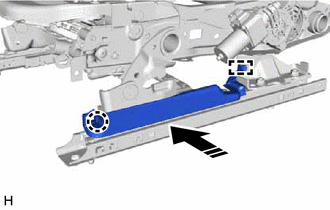

B564763
0,0 0,0 false
V113147

Install in this Direction


Engage the guide.


b.

Engage the claw to install the front seat lower cushion shield LH as shown in the illustration.


Hide 7181B 6.INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER (for Driver Side)

a.

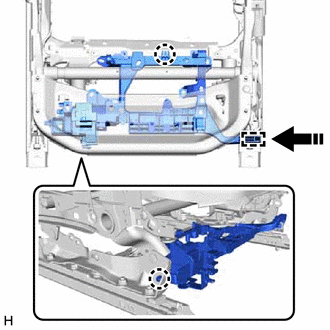

B564764
0,0 0,0 false
V113147

Install in this Direction


Engage the guide as shown in the illustration.


b.

Engage the 2 claws to install the front seat cushion wire harness holder.


c.

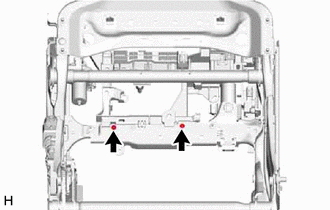

B564756

Install the 2 screws.


Hide 7181A 7.INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER (for Front Passenger Side)

a.

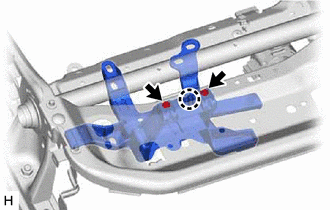

B588994

Engage the claw to install the front seat cushion wire harness holder.


b.

Install the 2 screws.


Hide 71052A 8.INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.

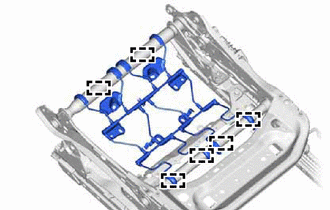

B588993

Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.


Hide 82192 9.INSTALL FRONT SEAT WIRE

a.

Connect each connector and engage each clamp to install the front seat wire.


Hide 71874A 10.INSTALL FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

a.

for LH Side:

i.

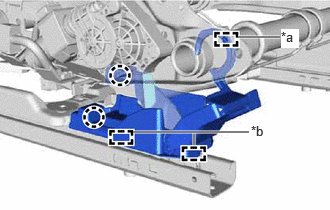

B564754C01
2.479,0.385 2.917,0.385 true 2.021,1.51 2.021,1.365 true 1.385,1.375 2.594,1.375 true 2.927,0.302 3.115,0.5 0.188,0.198 10 true *a 2.615,1.281 2.927,1.438 0.313,0.156 10 false *b
*a Hook
*b Guide


Engage the 2 claws and 2 guides to install the front seat lower cushion shield.


ii.

Engage the hook.



b.

for RH Side:

i.

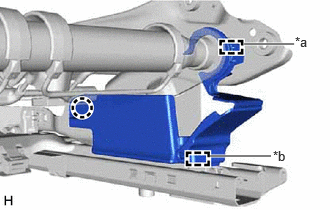

B564755C01
2.542,0.458 3.063,0.458 true 2.188,1.625 2.823,1.625 true 3.073,0.354 3.271,0.542 0.198,0.188 10 false *a 2.844,1.542 3.156,1.698 0.313,0.156 10 false *b
*a Hook
*b Guide


Engage the claw and guide to install the front seat lower cushion shield.


ii.

Engage the hook.



Hide 71876G 11.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER (for Driver Side)

a.

for LH Side:

i.

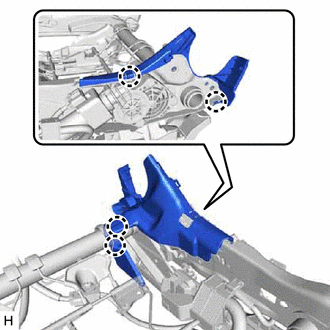

B564748

Engage the 4 claws to install the LH seat reclining adjuster inside cover.



b.

for RH Side:

i.

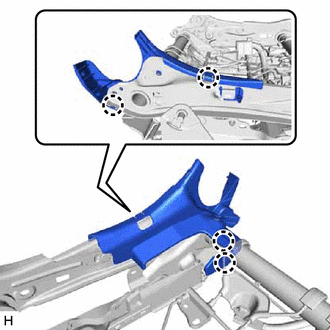

B564749

Engage the 4 claws to install the LH seat reclining adjuster inside cover.



Hide 71876 12.INSTALL RECLINING ADJUSTER INSIDE COVER (for Front Passenger Side)

a.

for LH Side:

i.

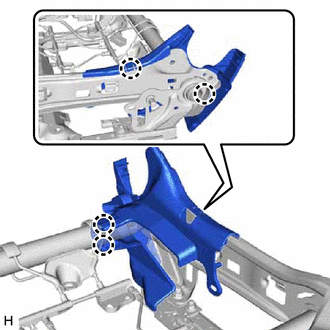

B564750

Engage the 4 claws to install the reclining adjuster inside cover.



b.

for RH Side:

i.

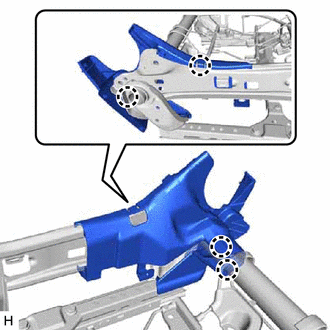

B564753

Engage the 4 claws to install the reclining adjuster inside cover.


ii.

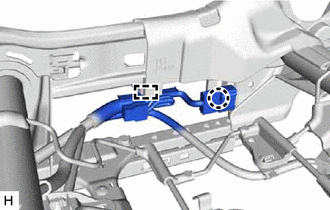

B564752

Engage the claw and clamp.



Hide 71072S 13.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

a.
B508804

Engage the 13 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.


Hide 85860B 14.INSTALL SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)

a.

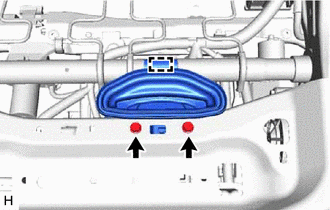

B490190

Engage the hook.


b.

Install the seat cushion climate control blower assembly with the 2 bolts.

Torque:
3.2 N*m (33 kgf*cm, 28 in.*lbf)


c.

for Driver Side:

i.

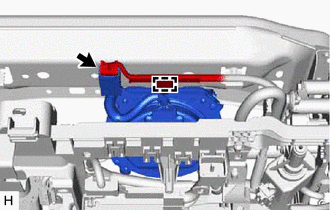

B490188

Connect the connector and engage the wire harness clamp.



d.

for Front Passenger Side:

i.

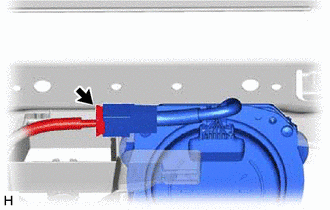

B588992

Connect the connector.



Hide 82666M 15.INSTALL CONNECTOR HOLDER (for Front Passenger Side)

a.
B477939
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the connector holder to the occupant detection sensor wire harness as shown in the illustration.


Hide 16.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

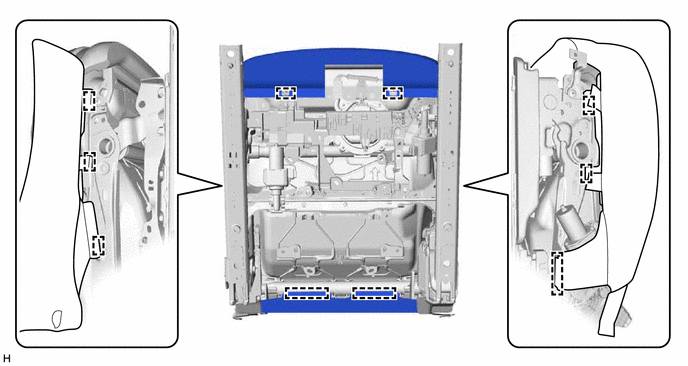

Engage the 10 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

B588991


b.

w/ Seat Heater System:

i.

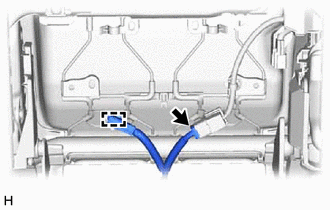

B588990

Engage the clamp.


ii.

Connect the connector.



c.

for Front Passenger Side:

i.
B477937
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the connector holder as shown in the illustration.



Hide 8219B 17.INSTALL FRONT SEAT NO. 2 WIRE

a.

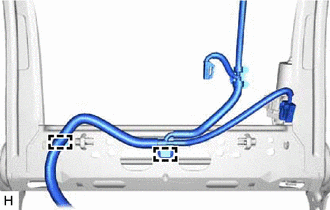

B564967

Engage the 2 clamps to install the front seat No. 2 wire.


Hide 71759B 18.INSTALL FRONT SEATBACK HOOK

a.

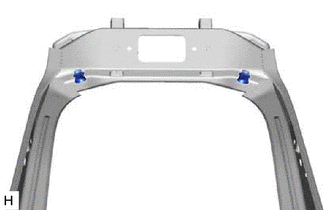

B429312

Install the 2 front seatback hooks to the front seatback frame sub-assembly.


Hide 71587 19.INSTALL FRONT SEATBACK EDGE PROTECTOR

a.

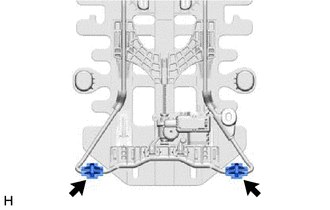

B644397

Install the 2 front seatback edge protectors


Hide 85867A 20.INSTALL SEATBACK CLIMATE CONTROL BLOWER (for Driver Side with Climate Control Seat System)

a.

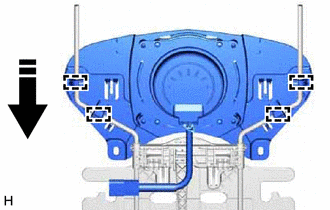

B589003
0.75,1.469 0.75,1.198 0.75,1.198 0.906,1.198 true 0.552,1.177 0.552,0.906 0.552,0.906 0.667,0.906 true 3.135,1.219 3.135,0.917 true 2.896,1.552 2.896,1.25 true 0.688,1.479 0.917,1.677 0.229,0.198 10 false *b 2.844,1.563 3.073,1.76 0.229,0.198 10 false *b 3.073,1.219 3.302,1.417 0.229,0.198 10 false *a 0.5,1.188 0.729,1.385 0.229,0.198 10 false *a
*a Guide
*b Hook
V113147

Install in this Direction


Engage the 2 guides and 2 hooks to install the seatback climate control blower as shown in the illustration.


Hide 79977A 21.INSTALL SEATBACK FELT (w/ Climate Control Seat System)

a.

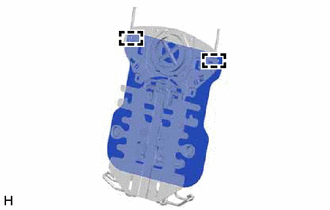

B588985

Engage the 2 guides to install the seatback felt.


Hide 22.INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY (for Driver Side without Climate Control Seat System)

a.

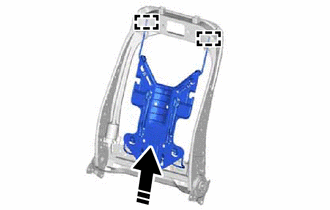

B644435
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides to install the front seatback spring sub-assembly to the front seatback frame sub-assembly as shown in the illustration.


b.

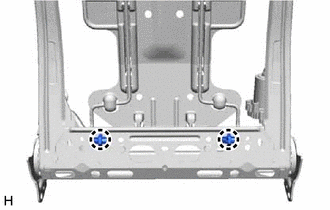

B481905

Engage the 2 claws to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.


Hide 72760D 23.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (for Driver Side with Climate Control Seat System)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY (for GTMC Made)>INSTALLATION

Hide 72750D 24.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (for Front Passenger Side)

a.
B589016
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides to install the lumbar support adjuster assembly RH to the front seatback frame sub-assembly as shown in the illustration.


b.

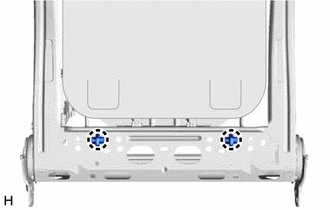

B564941

Engage the 2 claws to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.


c.

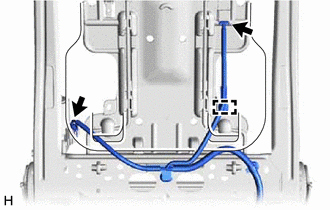

B588984

Engage the clamp.


d.

Connect the 2 connectors.


Hide 71074S 26.INSTALL SEPARATE TYPE FRONT SEATBACK COVER

a.
B458476

Engage the 15 claws to install the separate type front seatback cover to the separate type front seatback pad.


Hide 27.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Install the separate type front seatback cover with pad.


Hide 71931 28.INSTALL FRONT SEAT HEADREST SUPPORT

a.

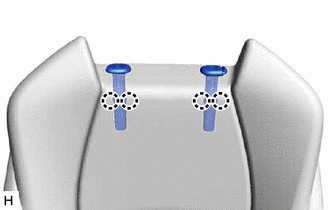

B588953

Engage the 4 claws to install the 2 front seat headrest supports.


b.
B429322

Close the 2 fasteners.


c.

w/ Seat Heater System:

i.
B526543

Engage the clamp.



d.

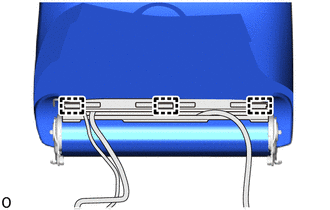

B558455

Engage the 3 hooks.


Hide 29.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

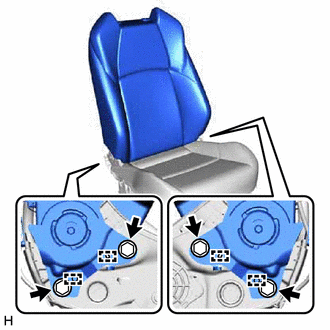

B588983

Engage the 4 guides.


b.

Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


c.

w/ Seat Heater System:

i.

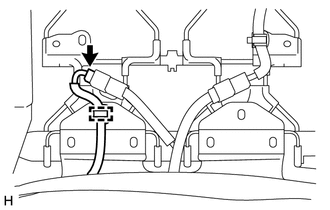

B485456

Connect the connector.


ii.

Engage the clamp.



d.

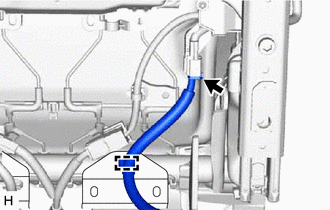

B588981

Engage the clamp.


e.

Connect the connector.


f.

for Driver Side:

i.

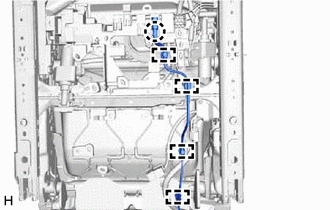

B588979

Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.




g.

for Front Passenger Side:

i.

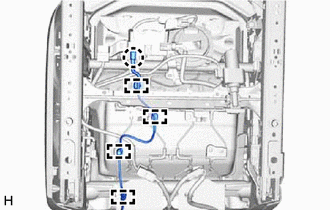

B588980

Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.




h.

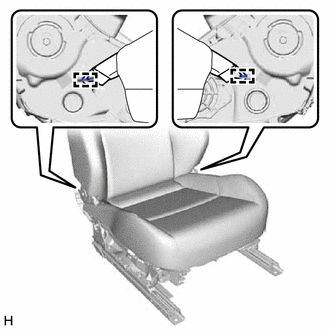

B588978

Engage the 2 hooks.


i.
B447549

Pass the separate type front seatback cover through the grooves of the LH seat reclining adjuster inside covers.


Hide 72714 31.INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

a.

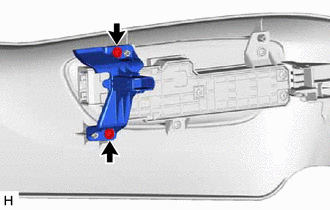

B564744

Install the seat adjuster shield clamp bracket to the front seat cushion shield with the 2 screws.


Hide 84921A 32.INSTALL RECLINING POWER SEAT SWITCH KNOB

a.

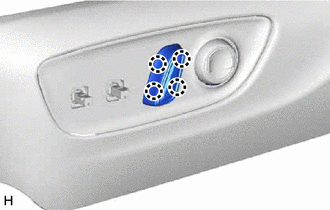

B564765

Engage the 4 claws to install the reclining power seat switch knob.


Hide 84921B 33.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

a.

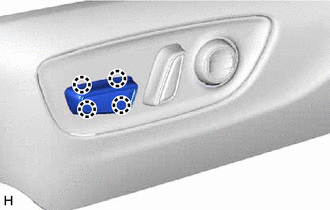

B564766

Engage the 4 claws to install the slide and vertical power seat switch knob.


Hide 71862 34.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.

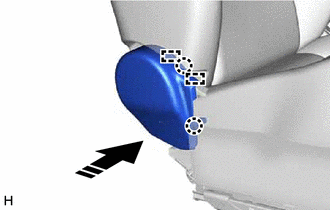

B589004
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws and 2 guides as shown in the illustration.


b.

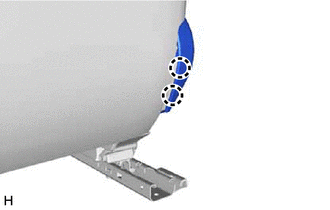

B564740

Engage the 2 claws to install the front seat inner cushion shield.


Hide 71812D 35.INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)

a.

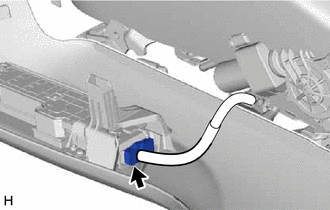

B564739

Connect the front power seat switch connector.


b.

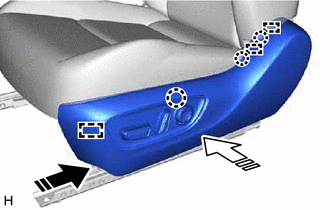

B589005
0.385,1.302 0.823,1.302 true 1.771,0.281 2.74,0.281 true 2.25,0.281 2.25,0.479 2.25,0.479 2.573,0.479 true 0.25,1.229 0.458,1.417 0.208,0.188 10 false A 1.573,0.188 1.781,0.385 0.208,0.198 10 true B
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide (A) as shown in the illustration.


c.

Engage the 3 claws and 2 guides (B) as shown in the illustration.


d.

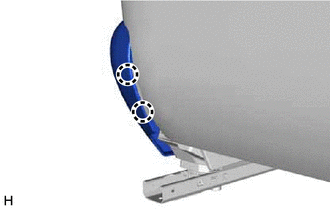

B564735

Engage the 2 claws to install the front seat cushion shield.


Hide 71861 36.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

a.

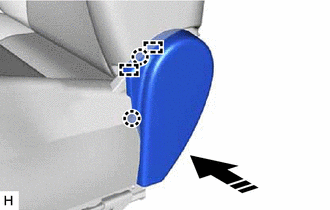

B589006
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws and 2 guides as shown in the illustration.


b.

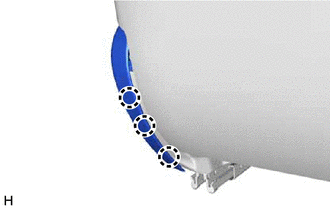

B564733

Engage the 3 claws to install the front seat inner cushion shield.


Hide 71811D 37.INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

a.

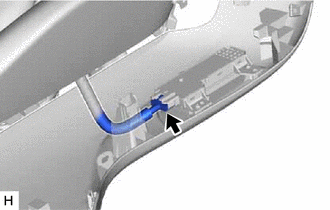

B564732

Connect the front power seat switch connector.


b.

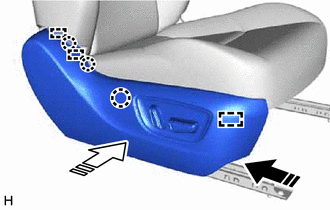

B589007
0.677,0.313 1.677,0.313 true 0.875,0.542 1.208,0.542 1.208,0.542 1.208,0.313 true 1.635,1.198 2.281,1.198 true 1.688,0.229 1.875,0.427 0.188,0.198 10 true B 1.458,1.104 1.646,1.302 0.188,0.198 10 true A
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide (A) as shown in the illustration.


c.

Engage the 3 claws and 2 guides (B) as shown in the illustration.


d.

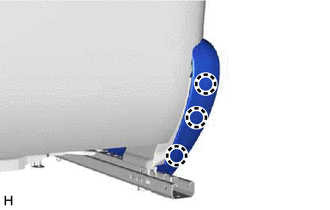

B564728

Engage the 3 claws to install the front seat cushion shield.


Hide 71868N 38.INSTALL FRONT SEAT FRONT CUSHION SHIELD

a.

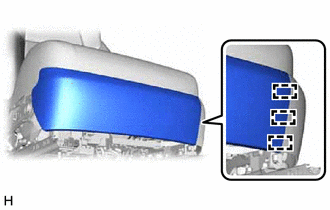

B588969

Engage the 3 guides.


b.

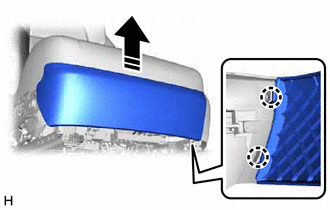

B589008
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.


c.

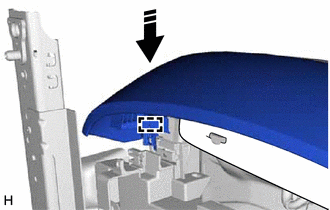

B589009
0,0 0,0 false
V113147

Install in this Direction


Engage the guide as shown in the illustration.


d.

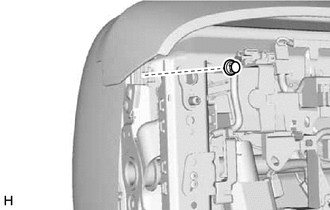

B564724

Install the front seat front cushion shield with the clip.


Hide 71074S 39.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.
B439715

Connect the rubber band of the separate type front seatback cover.


Hide 87501B 42.INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER CONTROL (for GTMC Made)>INSTALLATION

Hide 89710 43.INSTALL POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

Click hereVehicle Interior>SEAT>POWER SEAT CONTROL ECU (for GTMC Made)>INSTALLATION
