RM38N0EC
_58
Vehicle Interior
_111839
SEAT
_0525811
FRONT SEAT ASSEMBLY(for GTMC Made Power Seat)
K
SEAT FRONT SEAT ASSEMBLY(for GTMC Made Power Seat) COMPONENTS
ILLUSTRATION
| *A | for HV Model | - | - |
| *1 | BATTERY HOLE COVER | *2 | REAR NO. 2 FLOOR BOARD |

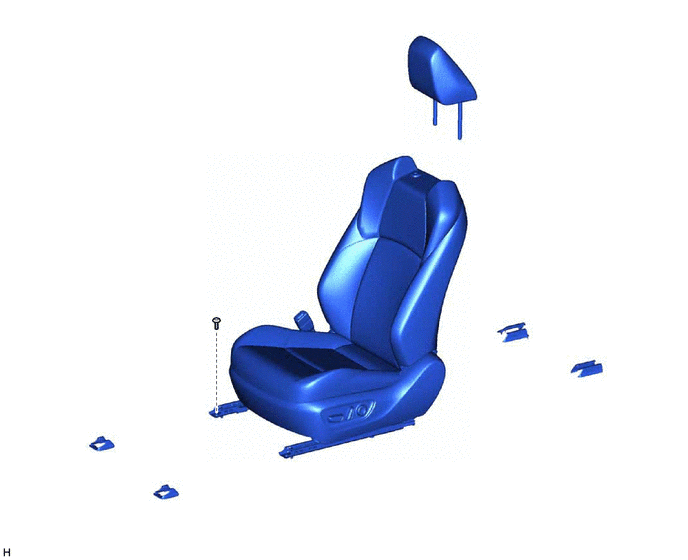

ILLUSTRATION
| *1 | FRONT INNER SEAT TRACK BRACKET COVER | *2 | FRONT OUTER SEAT TRACK BRACKET COVER |
| *3 | FRONT SEAT ASSEMBLY _58,_111839,_0500775,SEAT/FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)_58,_111839,_0501171,SEAT/FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat) FRONT SEAT ASSEMBLY _58,_111839,_0500775,SEAT/FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)_58,_111839,_0501171,SEAT/FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)_58,_111839,_0525810,SEAT/FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)_58,_111839,_0525811,SEAT/FRONT SEAT ASSEMBLY (for GTMC Made Power Seat) | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER | *6 | REAR OUTER SEAT TRACK BRACKET COVER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

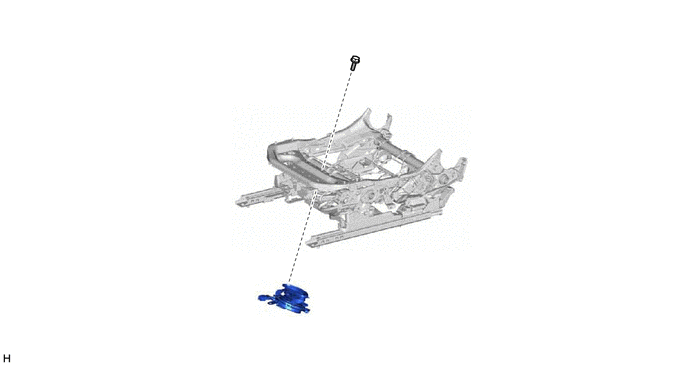

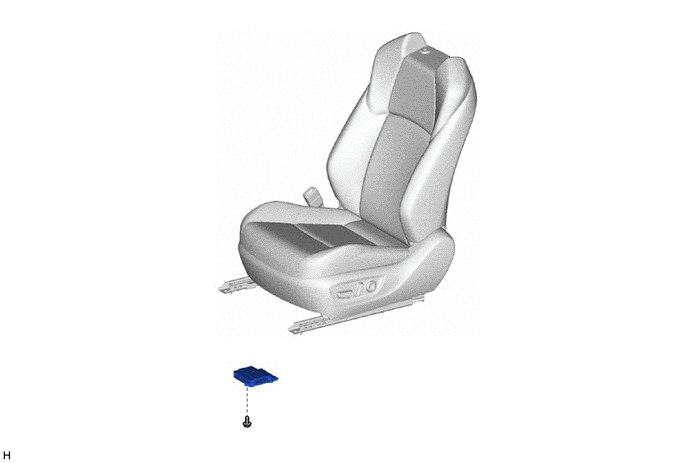

ILLUSTRATION
| *A | w/ Seat Position Memory System | - | - |
| *1 | POSITION CONTROL ECU ASSEMBLY _58,_111839,_0525817,SEAT/POWER SEAT CONTROL ECU (for GTMC Made) | - | - |

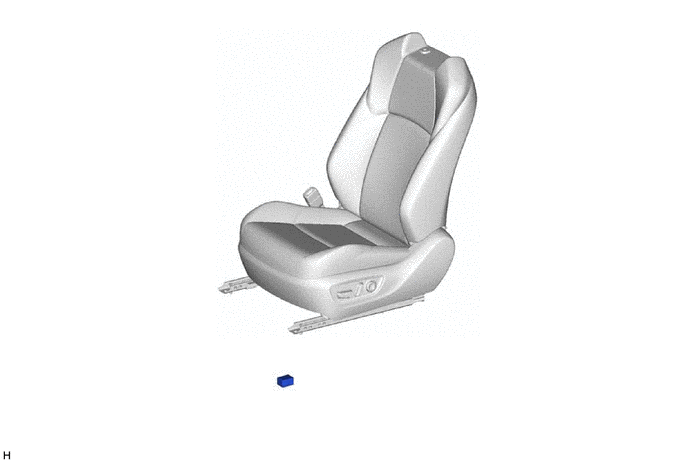

ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | SEAT HEATER CONTROL SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT INNER BELT ASSEMBLY | *2 | FRONT SEAT BELT ANCHOR PLATE |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT FRONT CUSHION SHIELD |
| *3 | FRONT SEAT INNER CUSHION SHIELD | - | - |

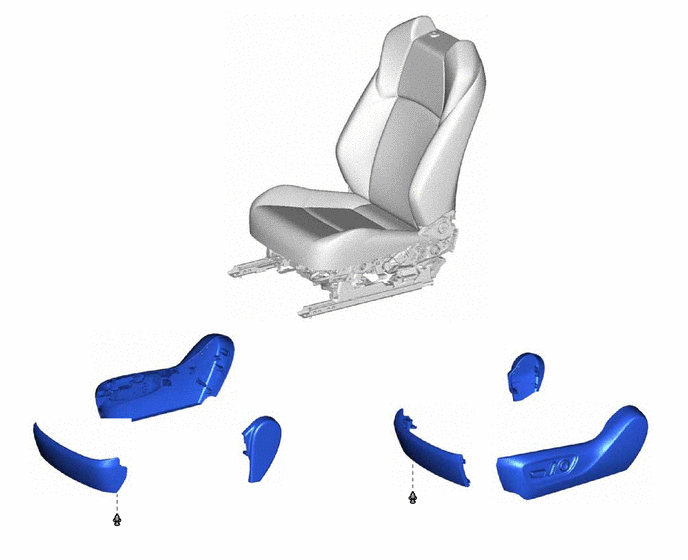

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT POWER SEAT SWITCH | *2 | FRONT SEAT CUSHION SHIELD |
| *3 | RECLINING POWER SEAT SWITCH KNOB | *4 | SEAT ADJUSTER SHIELD CLAMP BRACKET |
| *5 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB | - | - |
ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

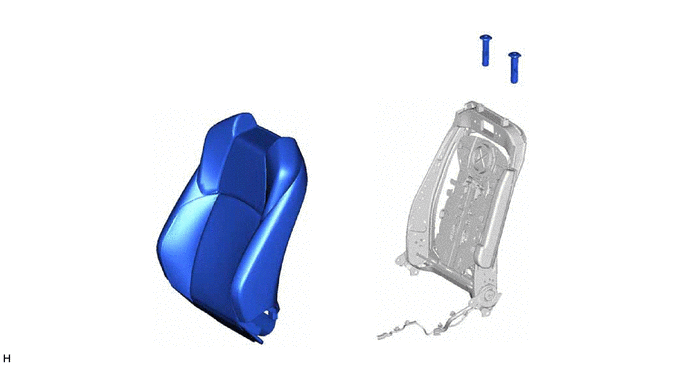

ILLUSTRATION
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |

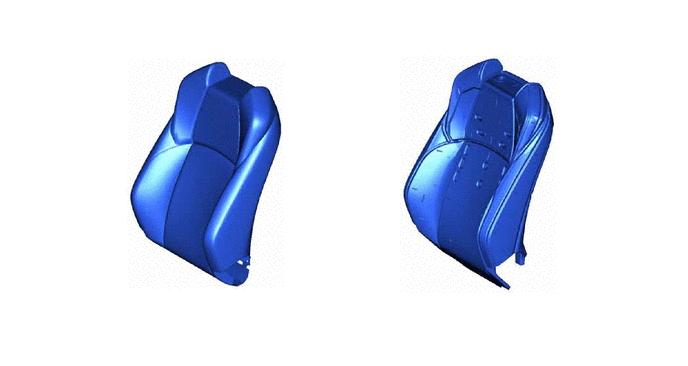

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK COVER | *2 | SEPARATE TYPE FRONT SEATBACK PAD |

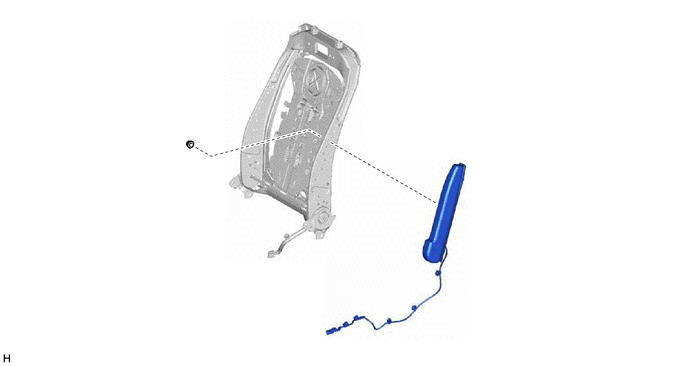

ILLUSTRATION
| *1 | FRONT SEAT AIRBAG ASSEMBLY _58,_111838,_0502525,SUPPLEMENTAL RESTRAINT SYSTEMS/FRONT SEAT SIDE AIRBAG ASSEMBLY (for SFTM Made) FRONT SEAT AIRBAG ASSEMBLY _58,_111838,_0502525,SUPPLEMENTAL RESTRAINT SYSTEMS/FRONT SEAT SIDE AIRBAG ASSEMBLY (for SFTM Made) | *2 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

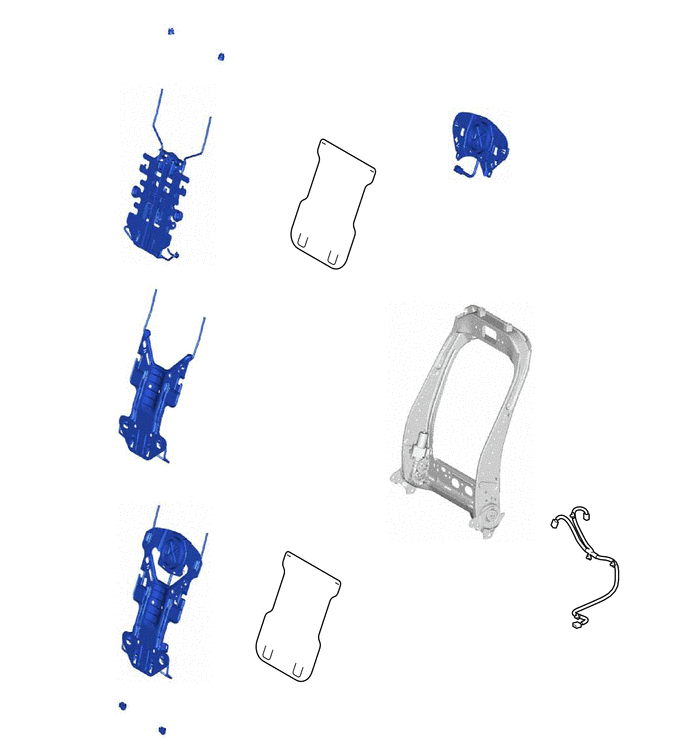

ILLUSTRATION
| *A | for Driver Side with Climate Control Seat System | *B | for Driver Side without Climate Control Seat System |
| *C | for Front Passenger Side | - | - |
| *1 | FRONT SEAT NO. 2 WIRE | *2 | FRONT SEATBACK EDGE PROTECTOR |
| *3 | FRONT SEATBACK HOOK | *4 | FRONT SEATBACK SPRING SUB-ASSEMBLY |
| *5 | LUMBAR SUPPORT ADJUSTER ASSEMBLY LH | *6 | LUMBAR SUPPORT ADJUSTER ASSEMBLY RH |
| *7 | SEATBACK CLIMATE CONTROL BLOWER | *8 | SEATBACK FELT |
| *9 | FRONT SEATBACK FRAME SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | for Front Passenger Side | - | - |
| *1 | CONNECTOR HOLDER | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Climate Control Seat System | - | - |
| *1 | SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

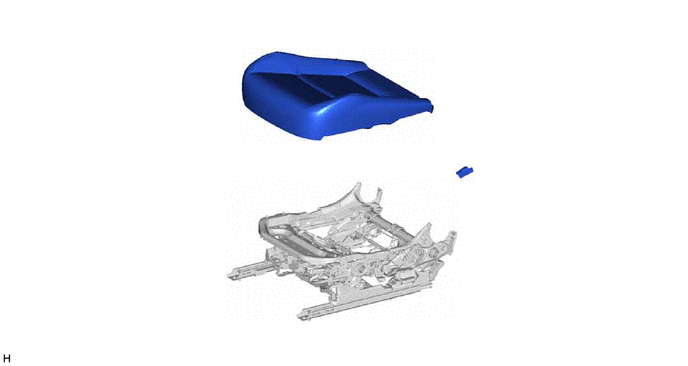

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *2 | SEPARATE TYPE FRONT SEAT CUSHION PAD |

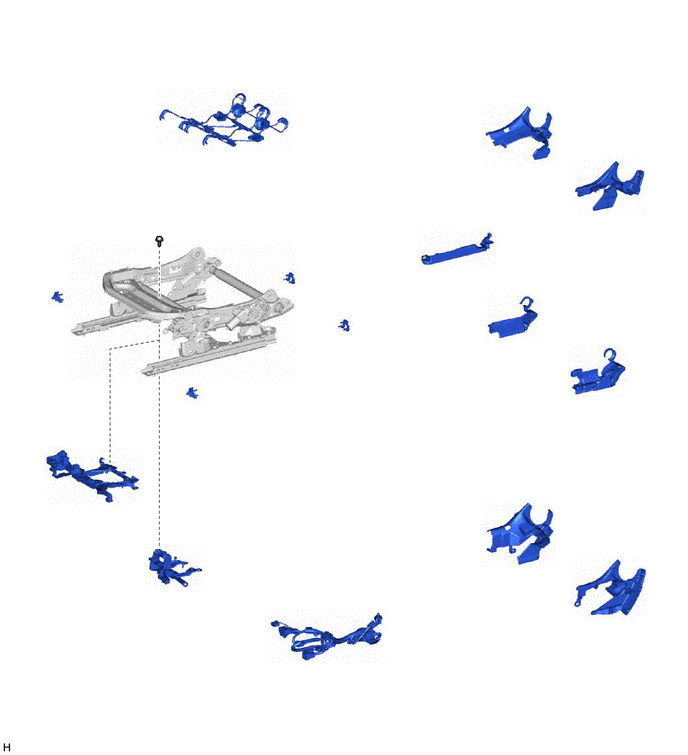

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY | *2 | FRONT SEAT CUSHION WIRE HARNESS HOLDER |
| *3 | FRONT SEAT LOWER CUSHION SHIELD | *4 | FRONT SEAT LOWER CUSHION SHIELD LH |
| *5 | FRONT SEAT WIRE | *6 | LH SEAT RECLINING ADJUSTER INSIDE COVER |
| *7 | REAR UPPER NO. 2 SEAT TRACK COVER | *8 | RECLINING ADJUSTER INSIDE COVER |
| *9 | SEAT TRACK UPPER RAIL COVER | *10 | FRONT SEAT ADJUSTER ASSEMBLY |

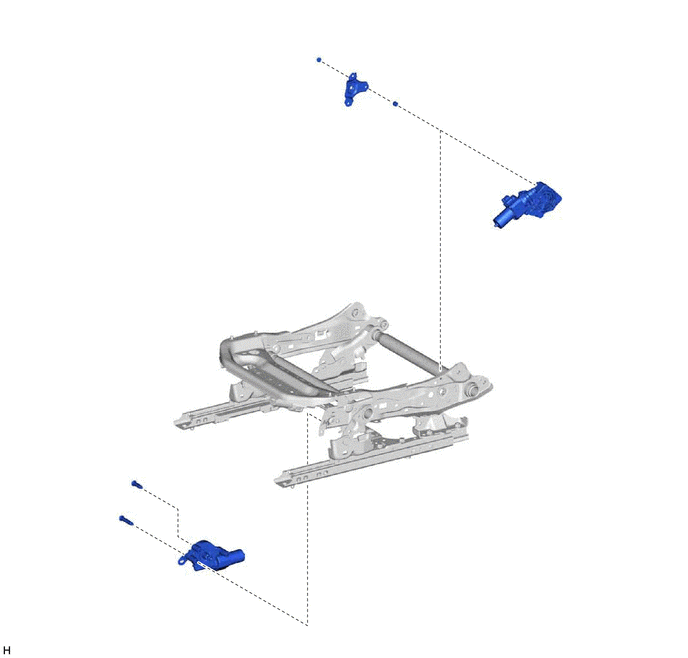

ILLUSTRATION
| *A | for Driver Side | - | - |
| *1 | POWER SEAT LIFTER MOTOR ASSEMBLY LH _58,_111839,_0525812,SEAT/FRONT POWER SEAT MOTOR ASSEMBLY | *2 | POWER SEAT TILT MOTOR ASSEMBLY LH _58,_111839,_0525812,SEAT/FRONT POWER SEAT MOTOR ASSEMBLY |
| *3 | FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY | *4 | VERTICAL ADJUSTER SPACER |
| *5 | FRONT SEAT ADJUSTER PLATE | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
