SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  REASSEMBLY

0,0 0,0 false

Install in this Direction

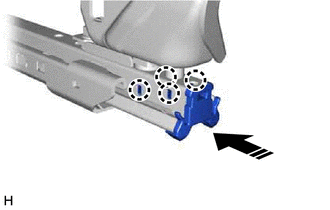

Engage the 4 claws to install the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.

Engage the 2 claws to install the seat track adjusting handle to the front seat adjuster assembly.

0,0 0,0 false

Install in this Direction

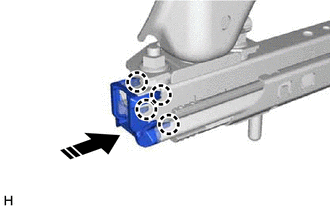

Engage the 4 claws to install the rear upper seat track cover as shown in the illustration.

HINT:

Use the same procedure for both sides.

Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.

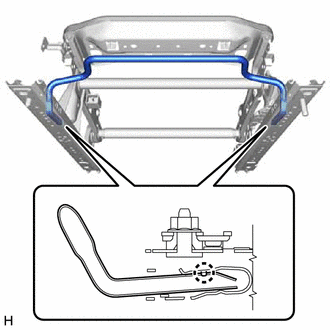

Engage the claw to install the front seat cushion wire harness holder.

for LH Side:

i.

Engage the 4 claws to install the reclining adjuster inside cover.

for RH Side:

i.

Engage the 4 claws to install the reclining adjuster inside cover.

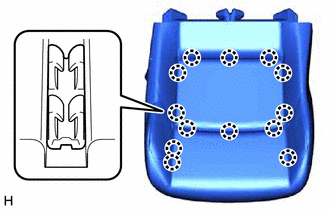

Engage the 13 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.

0,0 0,0 false

Install in this Direction

Engage the claw to install the connector holder to the occupant detection sensor wire harness as shown in the illustration.

Engage the 10 hooks (B) to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

3.115,1.021 3.115,1.208 true 4.094,1.021 4.094,1.208 true 1.531,1.958 1.531,2.333 true 0.865,2.083 1.531,2.083 true 5.583,1.948 5.583,2.323 true 5.583,2.063 6.281,2.063 true 0.781,3.354 1.448,3.354 true 1,3.354 1,4.323 1,4.323 0.75,4.323 true 5.594,3.177 6.021,3.177 true 5.844,3.177 5.844,4.292 5.844,4.292 6.083,4.292 true 3.979,4.198 3.979,4.49 true 3.281,4.198 3.281,4.49 true 3.073,1.219 3.208,1.385 0.135,0.167 10 true A 4.052,1.219 4.188,1.385 0.135,0.167 10 true A 1.49,2.323 1.625,2.49 0.135,0.167 10 true B 5.542,2.323 5.677,2.49 0.135,0.167 10 true B 1.458,3.271 1.594,3.438 0.135,0.167 10 true B 5.469,3.104 5.604,3.271 0.135,0.167 10 true B 3.24,4.51 3.375,4.677 0.135,0.167 10 true B 3.948,4.51 4.083,4.677 0.135,0.167 10 true B

0,0 0,0 false

Install in this Direction

Engage the claw to install the connector holder as shown in the illustration.

Install the 2 front seatback hooks to the front seatback frame sub-assembly.

0,0 0,0 false

Install in this Direction

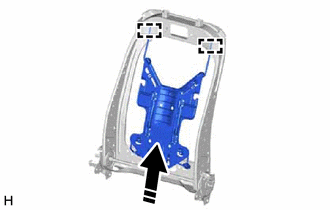

Engage the 2 guides to install the front seatback spring sub-assembly to the front seatback frame sub-assembly as shown in the illustration.

Engage the 2 claws to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.

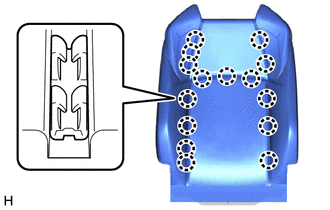

Engage the 15 claws to install the separate type front seatback cover to the separate type front seatback pad.

Engage the 4 claws to install the 2 front seat headrest supports.

Close the 2 fasteners.

Engage the 3 hooks.

Engage the 4 guides.

Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.

Engage the 2 hooks.

Pass the separate type front seatback cover through the grooves of each reclining adjuster inside cover.

0,0 0,0 false

Install in this Direction

Engage the 2 claws and 2 guides as shown in the illustration.

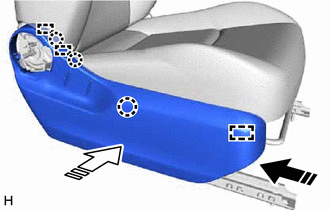

Engage the 3 claws to install the front seat inner cushion shield.

0.552,0.26 1.719,0.26 true 0.729,0.51 1.146,0.51 1.146,0.51 1.146,0.26 true 2.646,1.344 3.042,1.344 true 1.719,0.177 1.875,0.375 0.156,0.198 10 true B 3.083,1.26 3.24,1.458 0.156,0.198 10 true A

	Install in this Direction (1)
	Install in this Direction (2)

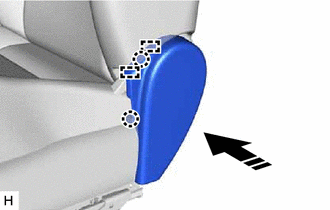

Engage the guide (A) as shown in the illustration.

Engage the 3 claws to install the front seat cushion shield.

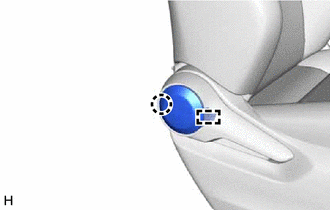

Install the reclining adjuster release handle.

Engage the guide.

Connect the rubber band of the separate type front seatback cover.
