RM38N0EC _58 Vehicle Interior _111839 SEAT _0525810 FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71073S 2.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.

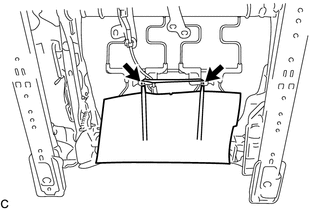

B431145

Disconnect the rubber band of the separate type front seatback cover.


Hide 72551B 3.REMOVE RECLINING HINGE COVER

a.

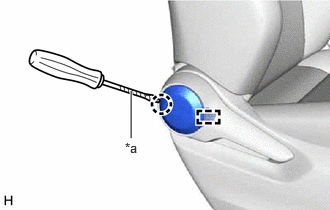

B588920C01
1.365,0.948 1.365,1.438 true 1.302,1.458 1.615,1.615 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the claw.


b.

Disengage the guide to remove the reclining hinge cover.


Hide 72525A 4.REMOVE RECLINING ADJUSTER RELEASE HANDLE

a.

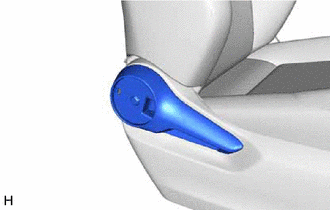

B588921

Remove the reclining adjuster release handle.


Hide 71811D 5.REMOVE FRONT SEAT CUSHION SHIELD

a.

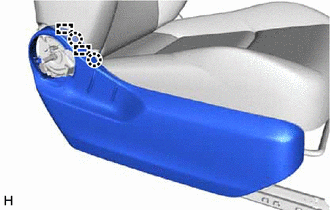

B588922

Disengage the 2 claws and 2 guides.


b.

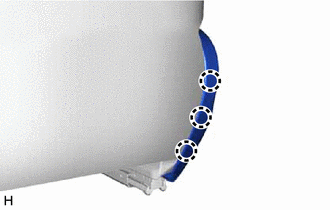

B588923

Disengage the 3 claws.


c.

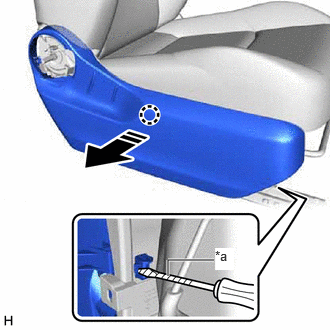

B588924C01
2.229,2.708 1.75,2.708 1.75,2.708 1.75,2.875 true 2.24,2.583 2.438,2.813 0.198,0.229 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield as shown in the illustration.


d.

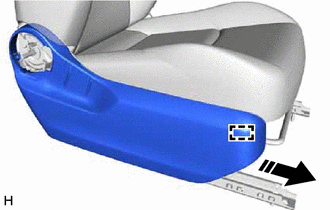

B588946C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide to remove the front seat cushion shield as shown in the illustration.


Hide 71861 6.REMOVE FRONT SEAT INNER CUSHION SHIELD

a.

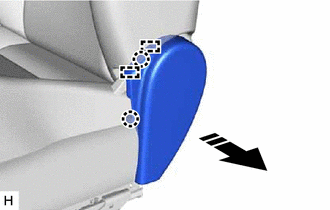

B588947C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and 2 guides as shown in the illustration.


b.
B588948

Disengage the 3 claws to remove the front seat inner cushion shield.


Hide 7.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

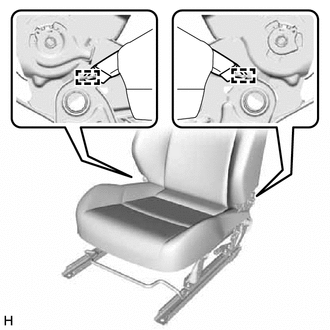

B588949

Disengage the 2 hooks.


b.

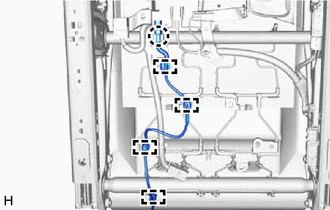

B588951

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:

Disengage the 4 clamps first.



c.

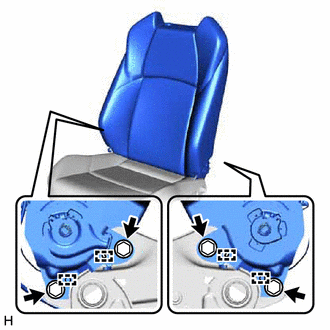

B588952

Remove the 4 bolts.


d.

Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.


Hide 71931 8.REMOVE FRONT SEAT HEADREST SUPPORT

a.

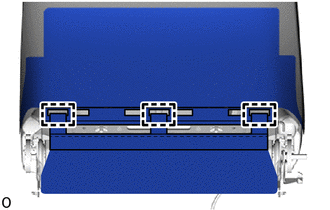

B460412

Disengage the 3 hooks.


b.
B429321

Open the 2 fasteners.


c.
B588953

Disengage the 4 claws and remove the 2 front seat headrest supports.


Hide 9.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Remove the separate type front seatback cover with pad.


Hide 71073S 10.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

a.

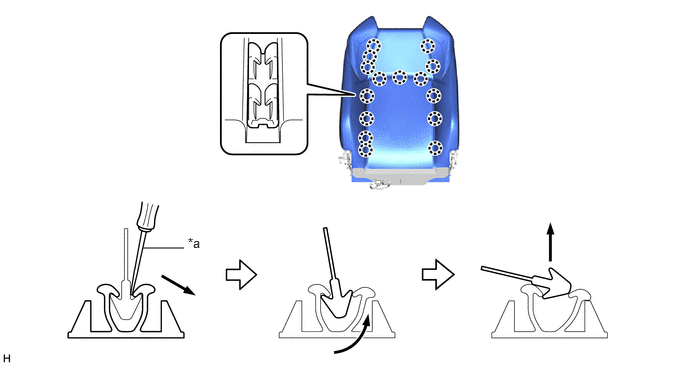

Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

B519966C03
1.49,2.583 1.917,2.583 false 1.958,2.448 2.271,2.646 0.313,0.198 10 false *a
*a Screwdriver - -



Hide 12.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY

a.

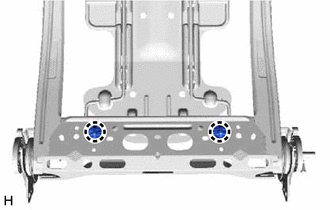

B429310

Disengage the 2 claws to separate the 2 front seatback edge protectors from the front seatback frame sub-assembly.


b.

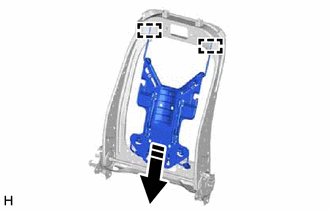

B588954C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 guides to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly as shown in the illustration.


Hide 71587 13.REMOVE FRONT SEATBACK EDGE PROTECTOR

a.

Remove the 2 front seatback edge protectors from the front seatback spring sub-assembly.


Hide 71759B 14.REMOVE FRONT SEATBACK HOOK

a.
B429312

Remove the 2 front seatback hooks from the front seatback frame sub-assembly.


Hide 15.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.
B477936C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to separate the connector holder as shown in the illustration.


b.

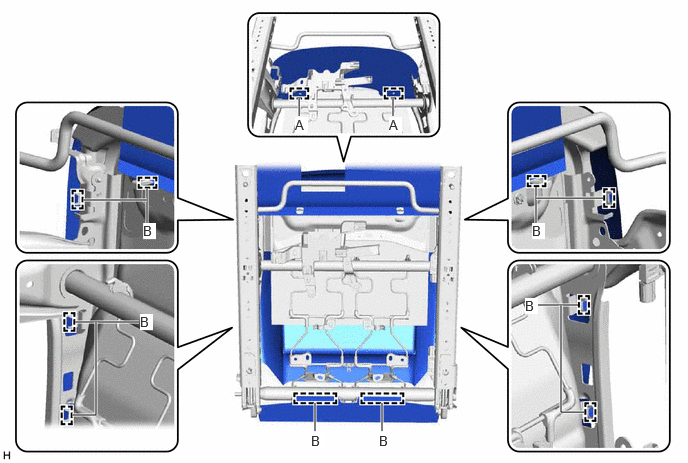

Disengage the 2 hooks (A).

B588956N01
3.115,1.021 3.115,1.208 true 4.094,1.021 4.094,1.208 true 1.531,1.958 1.531,2.333 true 0.865,2.083 1.531,2.083 true 5.583,1.948 5.583,2.323 true 5.583,2.063 6.281,2.063 true 0.781,3.354 1.448,3.354 true 1,3.354 1,4.323 1,4.323 0.75,4.323 true 5.594,3.177 6.021,3.177 true 5.844,3.177 5.844,4.292 5.844,4.292 6.083,4.292 true 3.979,4.198 3.979,4.49 true 3.281,4.198 3.281,4.49 true 3.073,1.219 3.208,1.385 0.135,0.167 10 true A 4.052,1.219 4.188,1.385 0.135,0.167 10 true A 1.49,2.323 1.625,2.49 0.135,0.167 10 true B 5.542,2.323 5.677,2.49 0.135,0.167 10 true B 1.458,3.271 1.594,3.438 0.135,0.167 10 true B 5.469,3.104 5.604,3.271 0.135,0.167 10 true B 3.24,4.51 3.375,4.677 0.135,0.167 10 true B 3.948,4.51 4.083,4.677 0.135,0.167 10 true B


c.

Disengage the 10 hooks (B) and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.


Hide 82666M 16.REMOVE CONNECTOR HOLDER

a.

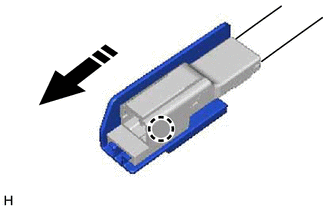

B477938C02
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to remove the connector holder from the occupant detection sensor wire harness as shown in the illustration.


Hide 71071S 17.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

a.

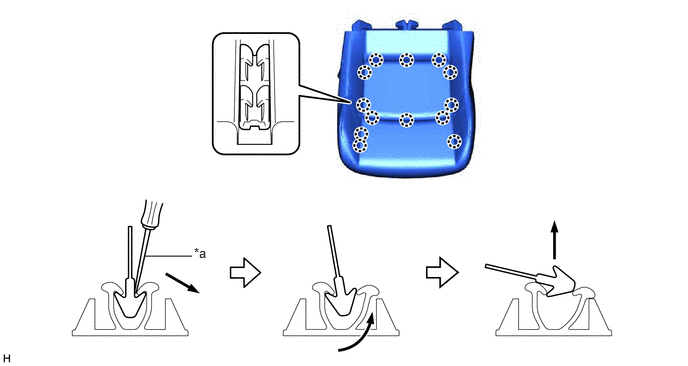

Using a screwdriver, disengage the 13 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

B519978C02
1.5,2.667 2,2.667 false 2.021,2.552 2.333,2.75 0.313,0.198 10 false *a
*a Screwdriver - -



Hide 71875A 18.REMOVE RECLINING ADJUSTER INSIDE COVER

a.

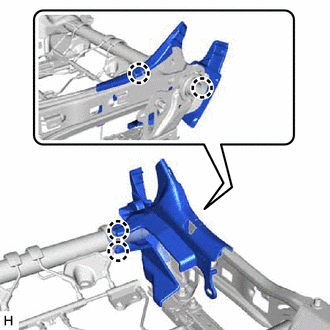

for LH Side:

i.
B563864

Disengage the 4 claws to remove the reclining adjuster inside cover.



b.

for RH Side:

i.

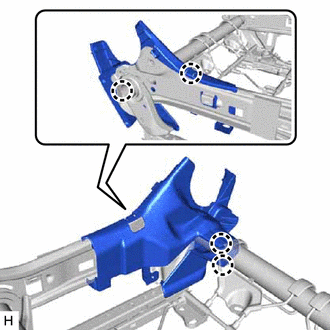

B563866

Disengage the 4 claws to remove the reclining adjuster inside cover.



Hide 7181A 19.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER

a.

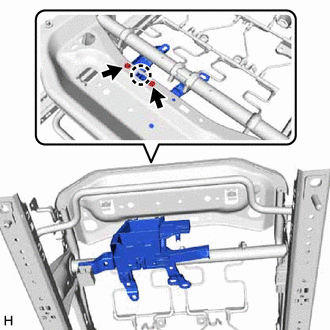

B563867

Remove the 2 screws.


b.

Disengage the claw to remove the front seat cushion wire harness holder.


Hide 71051A 20.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.

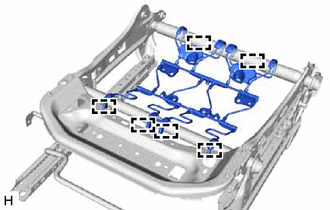

B563868

Disengage the 6 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.


Hide 72125A 21.REMOVE REAR UPPER SEAT TRACK COVER

a.

Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.


b.

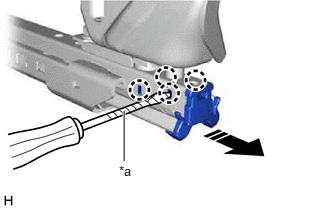

B563874C01
1.292,1.677 1.292,1.156 true 1.24,1.698 1.552,1.854 0.313,0.156 10 false *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the rear upper seat track cover as shown in the illustration.

HINT:

Use the same procedure for both sides.



Hide 72211C 22.REMOVE SEAT TRACK ADJUSTING HANDLE

a.

Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.


b.

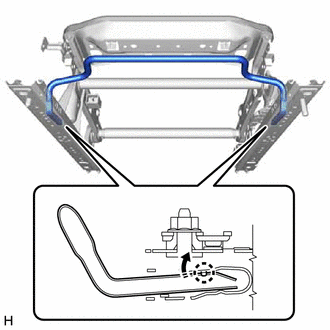

B563869C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws to remove the seat track adjusting handle from the front seat adjuster assembly as shown in the illustration.


Hide 72265 23.REMOVE SEAT TRACK UPPER RAIL COVER

a.

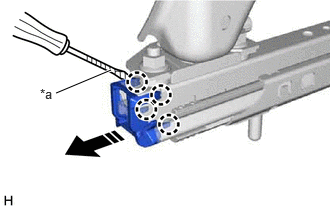

B563875C01
0.583,0.969 1.156,0.729 true 0.417,0.896 0.729,1.052 0.313,0.156 10 false *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the seat track upper rail cover as shown in the illustration.

HINT:

Use the same procedure for both sides.
