Power Source / Network
_111829
NETWORKING
_0505699
LIN COMMUNICATION SYSTEM
R
NETWORKING LIN COMMUNICATION SYSTEM PARTS LOCATION

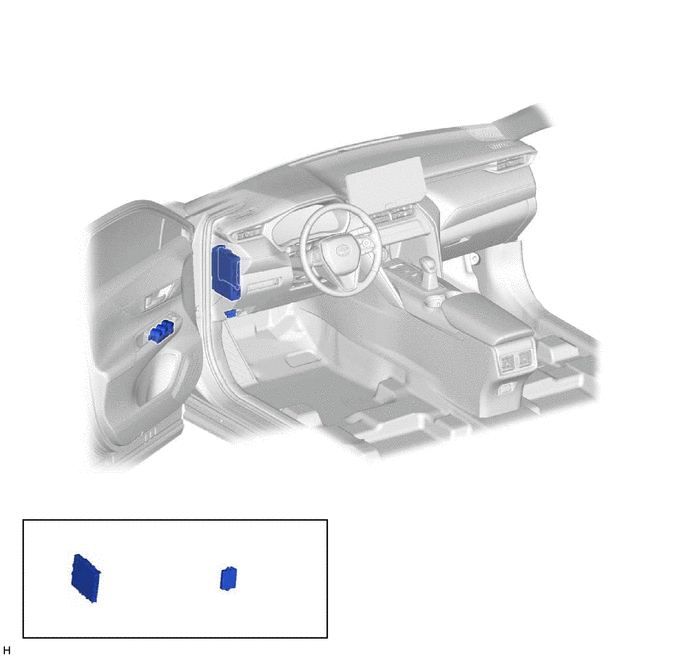

ILLUSTRATION
| *A | w/ Panoramic Fixed Moonroof with One-touch Frosted Glass Control System | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | POWER DISTRIBUTION BOX ASSEMBLY
- ECU-B NO. 1 FUSE - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE |
| *3 | S/ROOF FUSE | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *7 | DLC3 | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

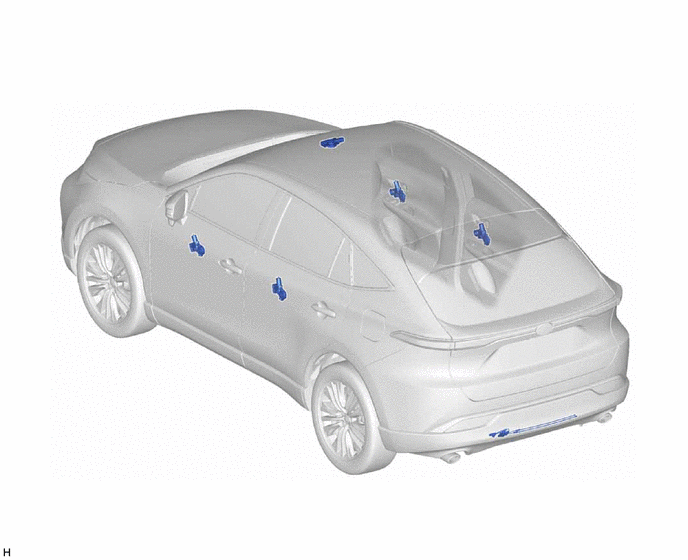

ILLUSTRATION
| *A | w/ Panoramic Fixed Moonroof with One-touch Frosted Glass Control System | *B | w/ Hands Free Power Back Door |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR) |
| *5 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) | *6 | KICK DOOR CONTROL SENSOR |
