RM38N0EC
_58
Vehicle Interior
_111839
SEAT
_0505694
FRONT POWER SEAT CONTROL SYSTEM(w/ Memory)
U

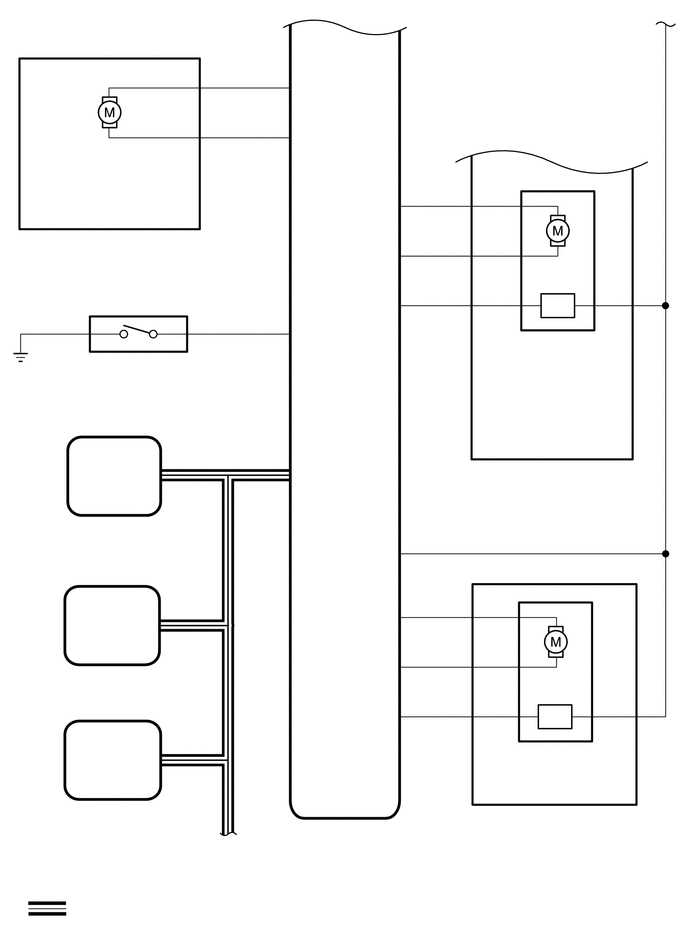

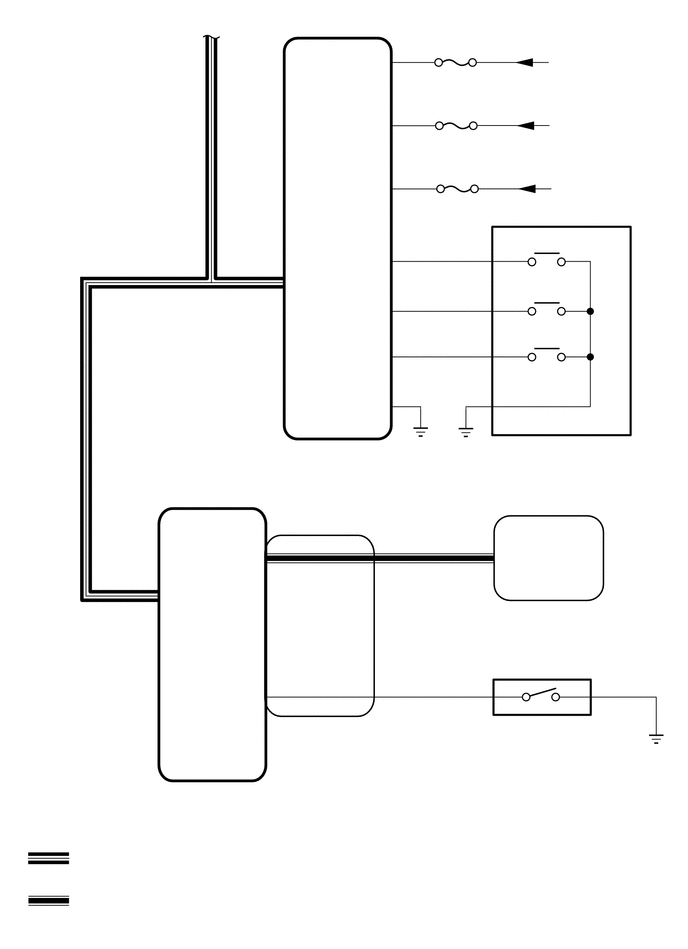

SEAT FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) SYSTEM DIAGRAM
1.

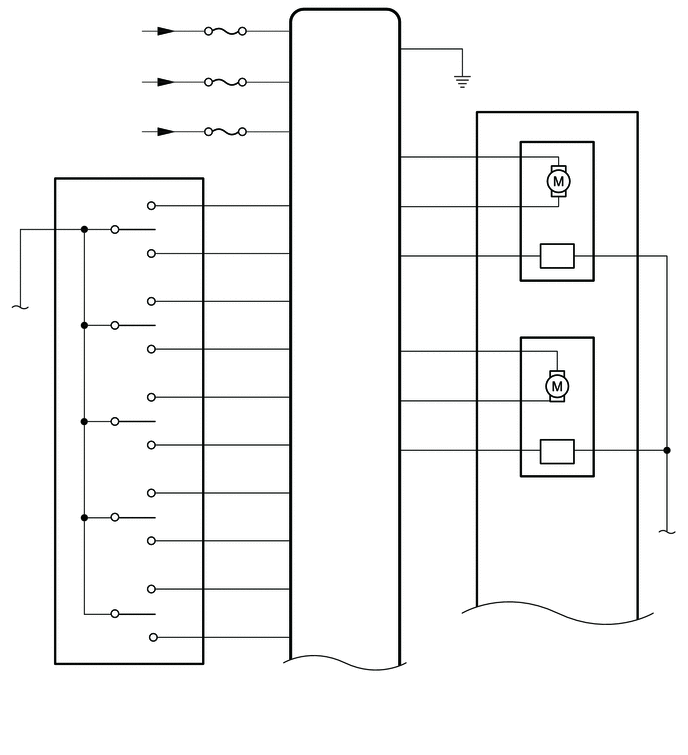

for SFTM Made
2.

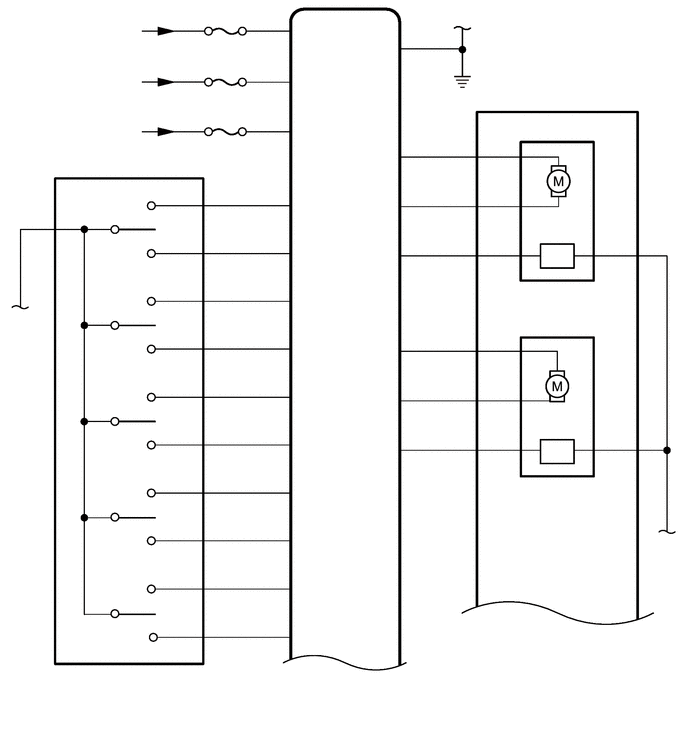

for GTMC Made
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Hybrid Vehicle Control ECU*1 | Main Body ECU (Multiplex Network Body ECU) | Shift position P signal | CAN |
| ECM*2 | Main Body ECU (Multiplex Network Body ECU) | Shift position P signal | CAN |
| Outer Mirror Control ECU Assembly LH | Main Body ECU (Multiplex Network Body ECU) | ·
M1 switch signal ·
M2 switch signal ·
SET switch signal |
CAN |
| Main Body ECU (Multiplex Network Body ECU) | Position Control ECU Assembly | ·
Shift position P signal ·
Transmission information ·
Driving position buzzer request ·
Driver seat position request ·
Driver seat position data ·
Front door courtesy light switch assembly (LH) signal |
CAN |
| Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | ·
Ignition switch signal ·
Memory call replay request ·
Key identification No. 1 to No. 7 acquisition condition |
CAN |
| Position Control ECU Assembly | Main Body ECU (Multiplex Network Body ECU) | ·
State signal of driver seat ·
State signal of driving position buzzer |
CAN |
| Multiplex Network Master Switch Assembly | Main Body ECU (Multiplex Network Body ECU) | Door control switch signal | LIN |
*1: for HV Model
*2: for Gasoline Model
