AXLE AND DIFFERENTIAL  DIFFERENTIAL MOUNT CUSHION  INSTALLATION

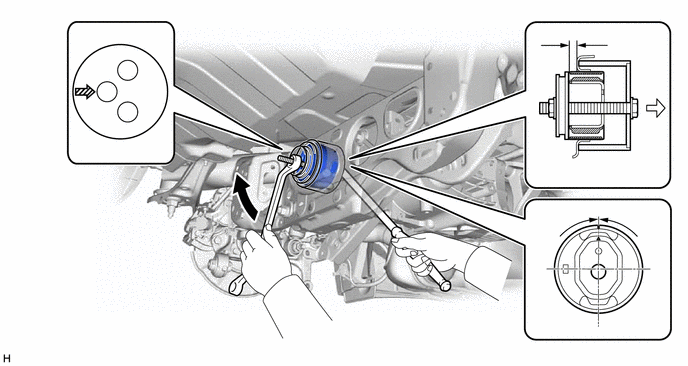

Using SST, install a new differential mount cushion.

SST

09316-12010
09570-24011

*1	Rear Suspension Member Sub-assembly	-	-
*a	-3° to 3°	*b	9.8 to 10.8 mm (0.386 to 0.425 in.)
*c	Protrusion	*d	Turn
*e	Hold	-	-
	Turning Direction		Front of Vehicle
	SST Bolt Position	-	-

NOTICE:

·

Make sure that the differential mount cushion is aligned within 3° from the center.

·

Install the differential mount cushion so that the protrusion is positioned as shown in the illustration.

·

Be sure to use the correct combination of SST.

·

Before using SST, apply grease to SST bolt.

·

Temporarily install the differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.

·

Make sure that SST contacts the entire circumference of the differential mount cushion.

·

Do not tilt the bolts of SST.
