Drivetrain
_111808
AXLE AND DIFFERENTIAL
_0525512
REAR DIFFERENTIAL CARRIER OIL SEAL
K
AXLE AND DIFFERENTIAL REAR DIFFERENTIAL CARRIER OIL SEAL COMPONENTS
ILLUSTRATION
| *1 | REAR DIFFERENTIAL CARRIER ASSEMBLY | *2 | REAR NO. 1 DIFFERENTIAL SUPPORT |
| *3 | REAR NO. 2 DIFFERENTIAL SUPPORT | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
|
Do not apply lubricants to the threaded parts | - | - |

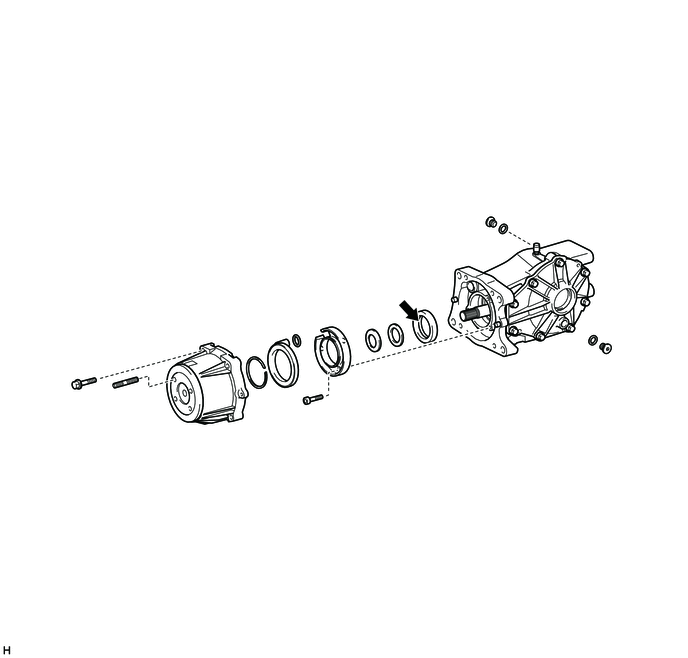

ILLUSTRATION
| *1 | DIAPHRAGM OIL SEAL | *2 | TRANSMISSION COUPLING ASSEMBLY |
| *3 | TRANSMISSION COUPLING CONICAL SPRING WASHER | *4 | TRANSMISSION COUPLING SHIM |
| *5 | 4WD LINEAR SOLENOID | *6 | YOKE |
| *7 | SNAP RING | *8 | O-RING |
| *9 | REAR DIFFERENTIAL CARRIER SUB-ASSEMBLY | *10 | REAR DIFFERENTIAL DRAIN PLUG |
| *11 | GASKET | *12 | REAR DIFFERENTIAL FILLER PLUG |
|
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
|
MP grease | - | - |
