RM38N0EC _58 Vehicle Interior _111843 INTERIOR PANELS / TRIM _0501135 INSTRUMENT PANEL SAFETY PAD A

INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD DISASSEMBLY

PROCEDURE

Hide Display 55548A 1.REMOVE INSTRUMENT PANEL HOLE COVER (w/ Headup Display)

0,0 0,0 false

Remove in this Direction

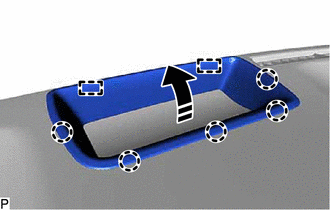

Disengage the 5 claws and 2 guides as shown in the illustration to remove the instrument panel hole cover.

Hide Display 55011A 2.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

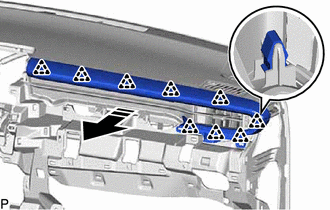

Disengage the 11 clips as shown in the illustration to remove the No. 1 instrument panel garnish sub-assembly.

Hide Display 55012A 3.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

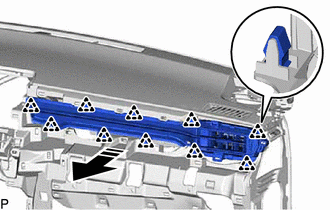

Disengage the 9 clips as shown in the illustration to remove the No. 2 instrument panel garnish sub-assembly.

Hide Display 55650 4.REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

0,0 0,0 false

Remove in this Direction

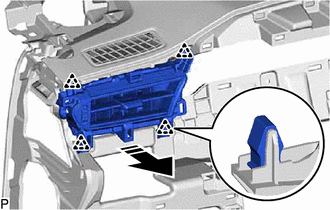

Disengage the 4 clips as shown in the illustration to remove the No. 1 instrument panel register assembly.

Hide Display 55660 5.REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

0,0 0,0 false

Remove in this Direction

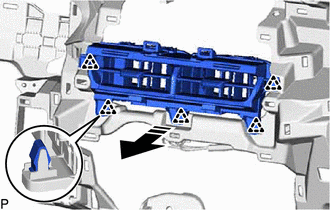

Disengage the 10 clips as shown in the illustration to remove the No. 2 instrument panel register assembly.

Hide Display 55670A 6.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

0,0 0,0 false

Remove in this Direction

Disengage the 5 clips as shown in the illustration to remove the center instrument panel register assembly.

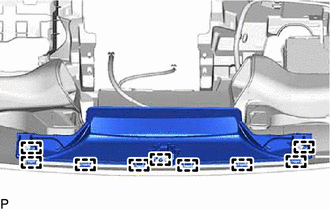

Hide Display 55950G 7.REMOVE DEFROSTER NOZZLE ASSEMBLY

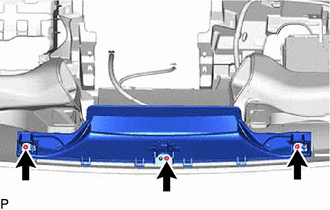

Remove the 3 screws <C>.

Disengage the 9 guides to remove the defroster nozzle assembly.

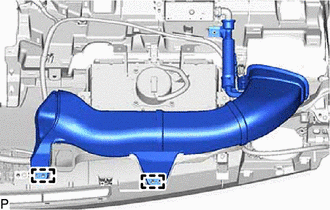

Hide Display 55086 8.REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

1.604,0.24 1.844,0.448 0.24,0.208 12 true *A

*A	w/ Ion Generator

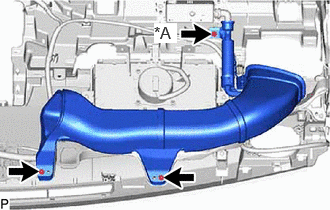

Remove each screw <C>.

Disengage the 2 guides to remove the No. 3 heater to register duct sub-assembly.

Hide Display 87201N 9.REMOVE AIR DUCT SUB-ASSEMBLY (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>REMOVAL202203,202303,_58,_111841,_0499809,RM1000000022E3T_02_0022,202303,202406,_58,_111841,_0499809,RM100000002BIZ5_02_0022,202406,999999,_58,_111841,_0499809,RM100000002MQ4H_02_0022,

Hide Display 88051A 10.REMOVE ION GENERATOR SUB-ASSEMBLY (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR>REMOVAL202203,202303,_58,_111841,_0499809,RM1000000022E3T_02_0023,202303,202406,_58,_111841,_0499809,RM100000002BIZ5_02_0023,202406,999999,_58,_111841,_0499809,RM100000002MQ4H_02_0023,

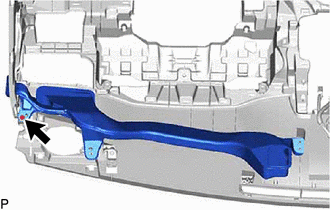

Hide Display 55972C 11.REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

Remove the screw <C>.

Disengage the 3 guides to remove the No. 2 side defroster nozzle duct.

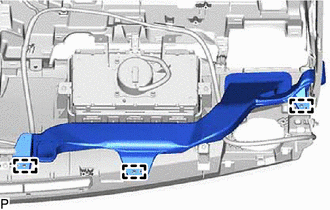

Hide Display 55084E 12.REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

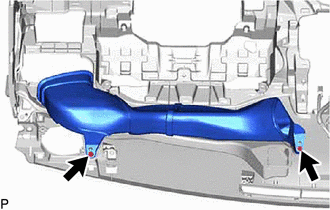

Remove the 2 screws <C>.

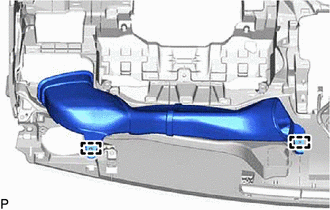

Disengage the 2 guides to remove the No. 1 heater to register duct sub-assembly.

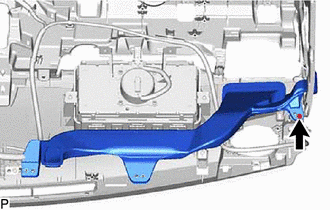

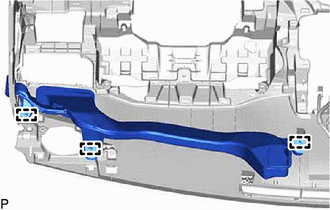

Hide Display 55971C 13.REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

Remove the screw <C>.

Disengage the 3 guides to remove the No. 1 side defroster nozzle duct.

Hide Display 86101 14.REMOVE ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD (for Instrument Panel)>REMOVAL202203,202303,_56,_111822,_0500665,RM1000000022E6H_01_0226,202303,202406,_56,_111822,_0500665,RM100000002BICQ_01_0226,202406,999999,_56,_111822,_0500665,RM100000002MS5G_01_0226,

Hide Display 15.REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ANTENNA>REMOVAL202203,202303,_56,_111823,_0500516,RM1000000022E6C_01_0171,202303,202406,_56,_111823,_0500516,RM100000002BICR_01_0171,202406,999999,_56,_111823,_0500516,RM100000002MS6H_01_0171,

Hide Display 82142A 16.REMOVE NO. 2 INSTRUMENT PANEL WIRE

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>REMOVAL202203,202303,_58,_111838,_0502523,RM1000000022EGC_01_0020,202303,202406,_58,_111838,_0502523,RM100000002AQNN_01_0020,202406,999999,_58,_111838,_0502523,RM100000002MS7Z_01_0020,

Hide Display 73960A 17.REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>REMOVAL202203,202303,_58,_111838,_0502523,RM1000000022EGC_01_0004,202303,202406,_58,_111838,_0502523,RM100000002AQNN_01_0004,202406,999999,_58,_111838,_0502523,RM100000002MS7Z_01_0004,

Hide Display 55328 18.REMOVE NO. 1 INSTRUMENT PANEL PIN

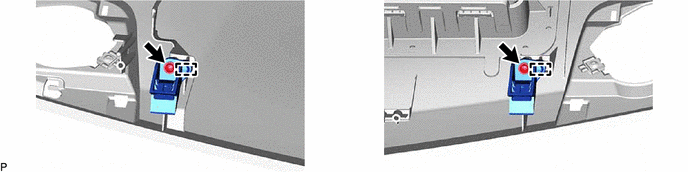

Remove the 2 screws <C>.

Disengage the 2 guides to remove the 2 No. 1 instrument panel pins.

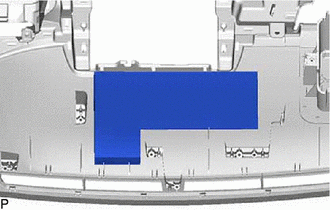

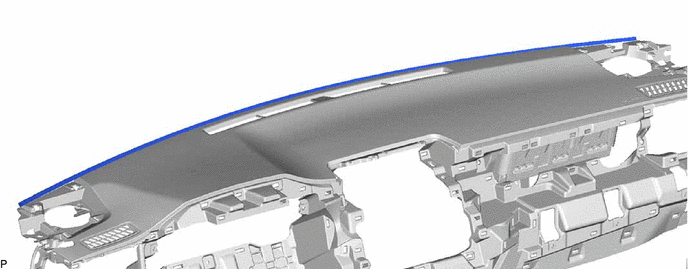

Hide Display 55349A 19.REMOVE INSTRUMENT PANEL CUSHION

Remove the instrument panel cushion.

Hide Display 55356C 20.REMOVE NO. 2 INSTRUMENT PANEL CUSHION

Remove the No. 2 instrument panel cushion.
