INTERIOR PANELS / TRIM  ROOF HEADLINING  DISASSEMBLY

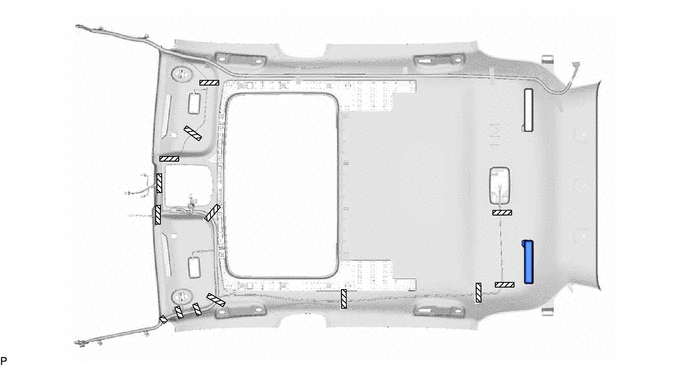

Remove the roof headlining pad LH.

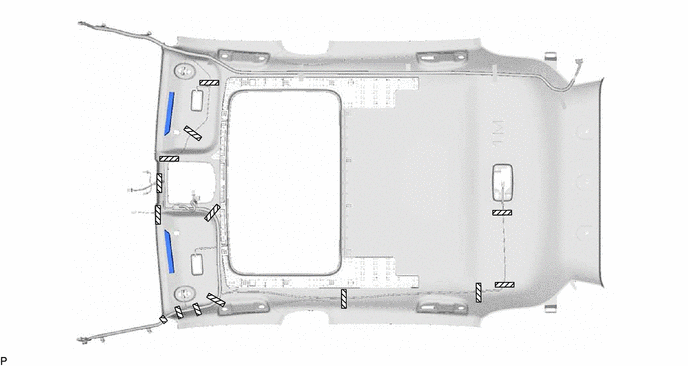

Remove the 2 front side roof headlining pads.

for GTMC Made:

i.

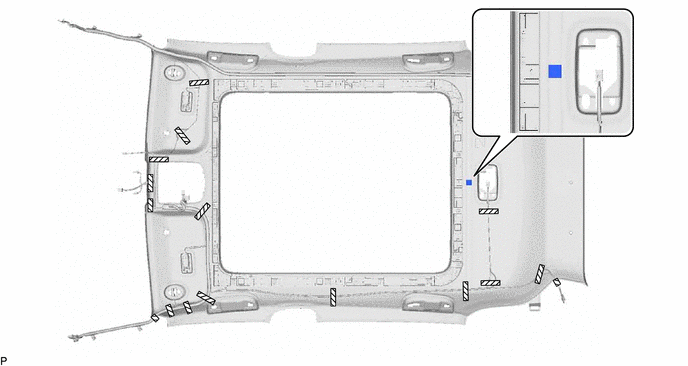

Remove the center roof headlining pad.

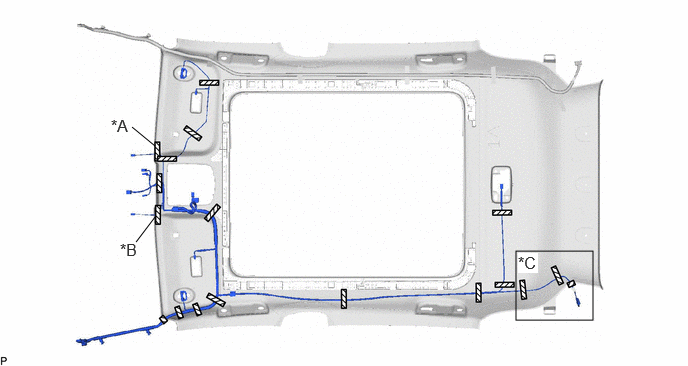

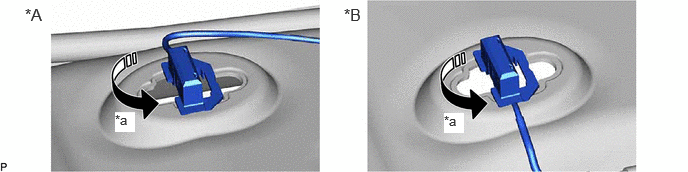

Turn the 2 visor connectors approximately 90° counterclockwise and remove them from the roof headlining assembly.

1.198,1.167 1.406,1.375 0.208,0.208 10 true *a 4.625,1.177 4.833,1.385 0.208,0.208 10 true *a 0.26,0.052 0.635,0.292 0.375,0.24 12 false *A 3.583,0.052 3.958,0.292 0.375,0.24 12 false *B

*A	for LH side	*B	for RH side
*a	90°	-	-
	Rotation Direction	-	-

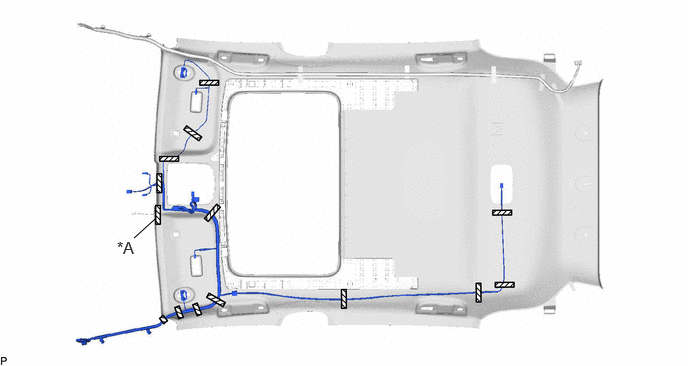

Remove the adhesive tape from the roof headlining assembly.

1.396,2.479 1.615,2.281 false 1.219,2.479 1.531,2.677 0.313,0.198 12 false *A

*A	w/ ETC	-	-
	Adhesive Tape	-	-

Turn the 2 visor connectors approximately 90° counterclockwise and remove them from the roof headlining assembly.

1.125,1.177 1.375,1.385 0.25,0.208 10 true *a 4.49,1.146 4.74,1.354 0.25,0.208 10 true *a 0.302,0.083 0.677,0.323 0.375,0.24 12 false *A 3.573,0.073 3.948,0.313 0.375,0.24 12 false *B

*A	for LH side	*B	for RH side
*a	90°	-	-
	Rotation Direction	-	-

Remove the adhesive tape from the roof headlining assembly.

5.375,2.615 6.177,3.333 0.802,0.719 1.615,2.26 1.417,2.521 false 1.615,1.521 1.375,1.323 false 1.25,2.5 1.625,2.74 0.375,0.24 12 false *B 5.396,2.635 5.604,2.844 0.208,0.208 12 true *C 1.156,1.208 1.531,1.448 0.375,0.24 12 false *A

*A	w/ Rain Sensor	*B	w/ ETC
*C	w/ Digital Inner Mirror	-	-
	Adhesive Tape	-	-
