INTERIOR PANELS / TRIM  ROOF SUNSHADE(for Long Type Panoramic Fixed Moon Roof)  DISASSEMBLY

1.635,1.469 1.76,1.042 true 1.448,1.479 1.719,1.698 0.271,0.219 10 true *a

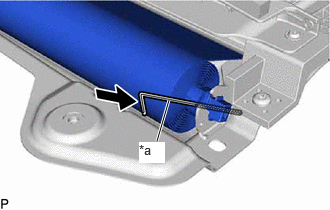

*a	Hexagon Wrench

Insert a 1.5 mm hexagon wrench into the hole to prevent rotation of the sunshade trim sub-assembly.

0.583,0.719 0.792,1.115 true 0.813,1.115 1.125,1.313 0.313,0.198 10 false *1

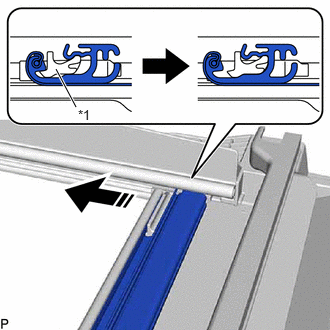

*1	Drive Cable RH
	Push in this Direction

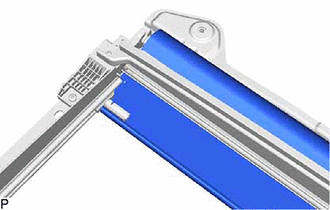

Push the crossbar forward and release the drive cable RH as shown in the illustration.

HINT:

Use the same procedure for the other side.

2.74,1.302 2.99,1.563 true 3.021,1.51 3.333,1.708 0.313,0.198 10 false *1

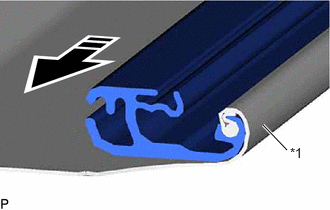

*1	Fabric
	Remove in this Direction

Pull out the crossbar from the fabric as shown in the illustration.

Unwrap the fabric.

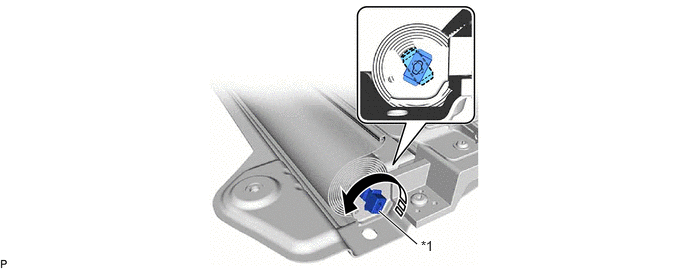

Rotate the bearing pin to align with the position shown in the illustration.

4.344,2.542 3.948,2.198 true 4.385,2.479 4.698,2.677 0.313,0.198 10 false *1

*1	Bearing Pin	-	-
	Rotation Direction	-	-

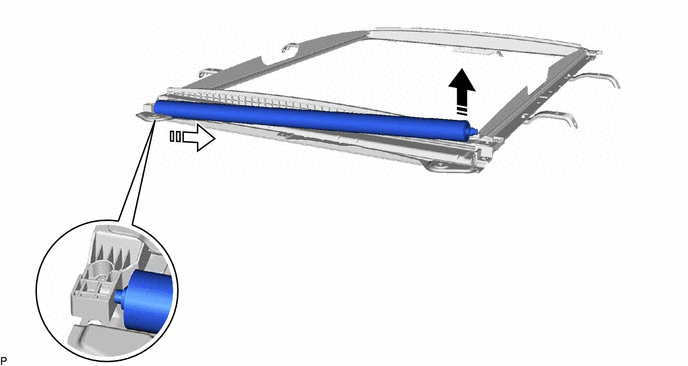

Lift up the sunshade trim sub-assembly in the direction of the arrow (1) and then remove it in the direction of the arrow (2) as shown in the illustration.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)
