METER / GAUGE / DISPLAY  HEADUP DISPLAY  DISASSEMBLY


PROCEDURE

Hide 83163 1.REMOVE NO. 1 COMBINATION METER MIRROR PLATE

a.

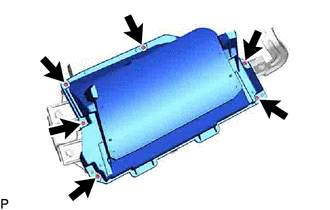

E447045

Remove the 6 screws.


b.

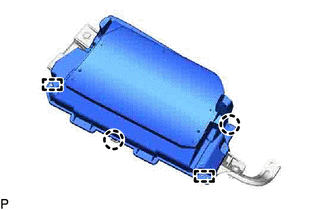

E447046

Disengage the 2 claws and 2 guides to remove the No. 1 combination meter mirror plate.
