K120 / K120F / K121 / K121F CVT  K120F / K121F DIFFERENTIAL CASE  DISASSEMBLY


PROCEDURE

Hide 1.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

a.
C402346N01
0.823,1.375 0.99,1.375 false 0.552,1.292 1.01,1.49 0.458,0.198 10 false SST

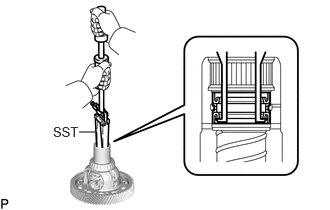

Using SST, remove the front drive shaft oil seal RH from the differential case sub-assembly.

SST
09308-00010

NOTICE:

Be careful not to damage the differential case sub-assembly.



Hide 41221 2.REMOVE FRONT DIFFERENTIAL RING GEAR

a.
C399101

Secure the front differential ring gear in a vise between aluminum plates.

NOTICE:

Be careful not to damage the front differential ring gear in the vise.



b.

Remove the 12 bolts.


c.

Using a plastic-faced hammer, tap on the front differential ring gear to remove it from the differential case sub-assembly.
