Vehicle Exterior
_111831
DOOR / HATCH
_0505274
POWER BACK DOOR SYSTEM
U

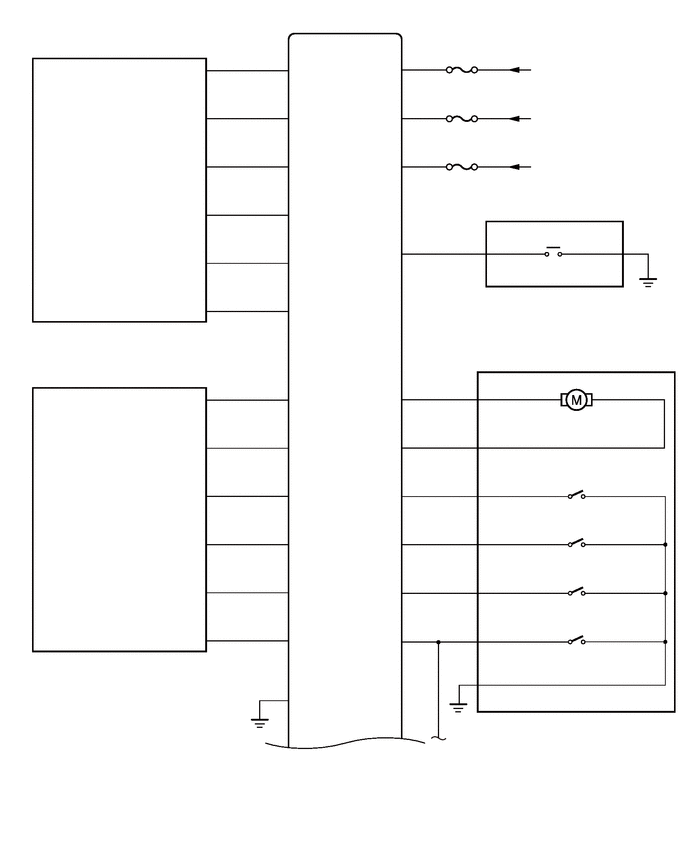

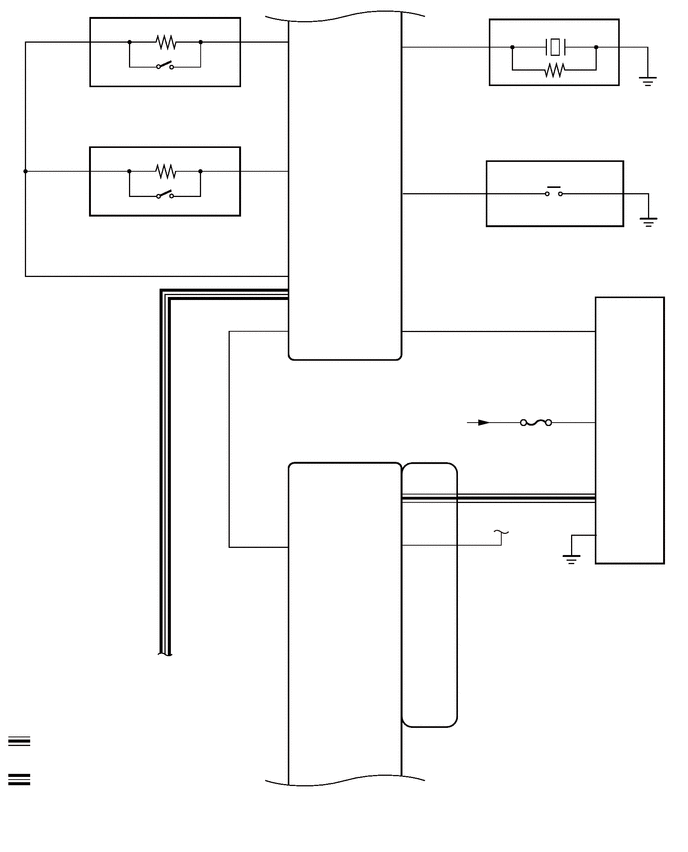

DOOR / HATCH POWER BACK DOOR SYSTEM SYSTEM DIAGRAM
| Transmitting ECU | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Main body ECU (multiplex network body ECU) | Multiplex network door ECU | Power back door control switch signal | CAN |
| Combination meter assembly | Multiplex network door ECU | ·
Power back door ON/OFF signal ·
Vehicle speed signal |
CAN |
| Certification ECU (smart key ECU assembly) | Main body ECU (multiplex network body ECU) | Back door opener switch signal | CAN |
| Main body ECU (multiplex network body ECU) | Kick door control sensor assembly* | ·
Vehicle speed signal ·
Ignition switch ON signal ·
Ignition switch ACC signal |
LIN |
*: w/ Hands Free Power Back Door
