RM38N0EC
_59
Vehicle Exterior
_111831
DOOR / HATCH
_0505274
POWER BACK DOOR SYSTEM
R
DOOR / HATCH POWER BACK DOOR SYSTEM PARTS LOCATION

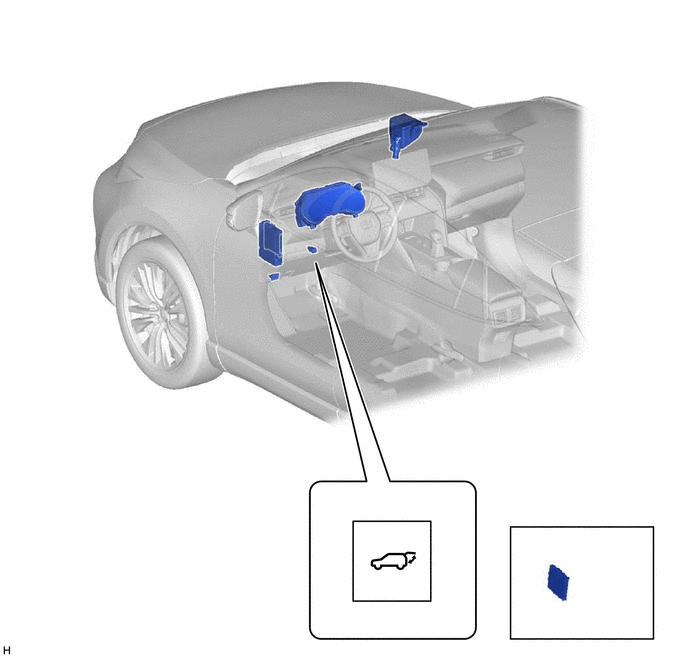

ILLUSTRATION
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | POWER DISTRIBUTION BOX ASSEMBLY
- ECU-IGR NO. 2 FUSE - ECU-B NO. 2 FUSE |
| *3 | COMBINATION METER ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | POWER BACK DOOR CONTROL SWITCH | *6 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- PBD FUSE |
| *7 | DLC3 | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

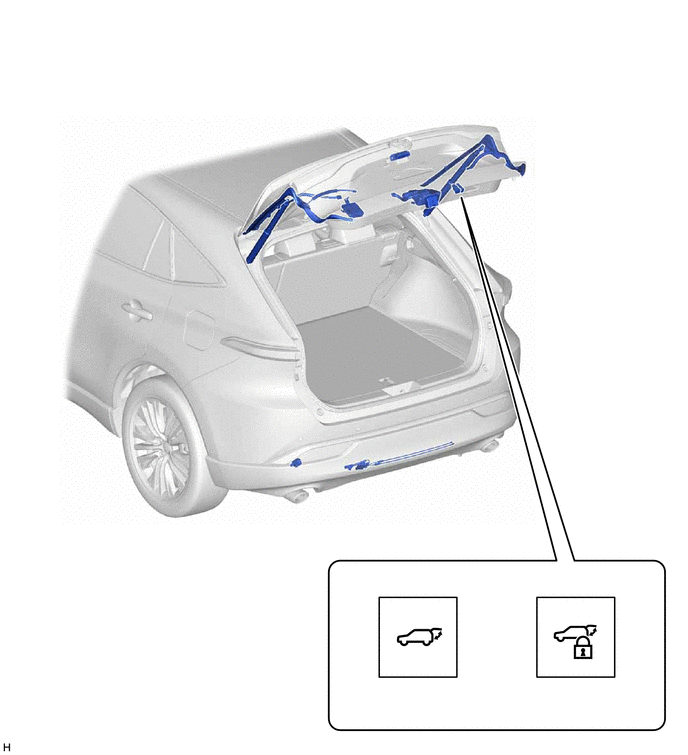

ILLUSTRATION
| *A | w/ Hands Free Power Back Door | - | - |
| *1 | POWER BACK DOOR SENSOR ASSEMBLY LH | *2 | POWER BACK DOOR SENSOR ASSEMBLY RH |
| *3 | MULTIPLEX NETWORK DOOR ECU | *4 | LICENCE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH
- BACK DOOR OPENER SWITCH |
| *5 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY
- BACK DOOR LOCK MOTOR - BACK DOOR COURTESY SWITCH - LATCH SWITCH - POSITION SWITCH - PAWL SWITCH |
*6 | POWER BACK DOOR UNIT ASSEMBLY SET LH |
| *7 | POWER BACK DOOR UNIT ASSEMBLY SET RH | *8 | BACK DOOR CONTROL SWITCH |
| *9 | DOOR CONTROL SWITCH ASSEMBLY | *10 | POWER BACK DOOR WARNING BUZZER |
| *11 | KICK DOOR CONTROL SENSOR ASSEMBLY | - | - |
