WINDOW / GLASS  POWER WINDOW REGULATOR MOTOR(for Rear Door)  INSPECTION


PROCEDURE

Hide 85720E 1.INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

a.

Connect a positive (+) lead from the auxiliary battery to connector terminal 2.

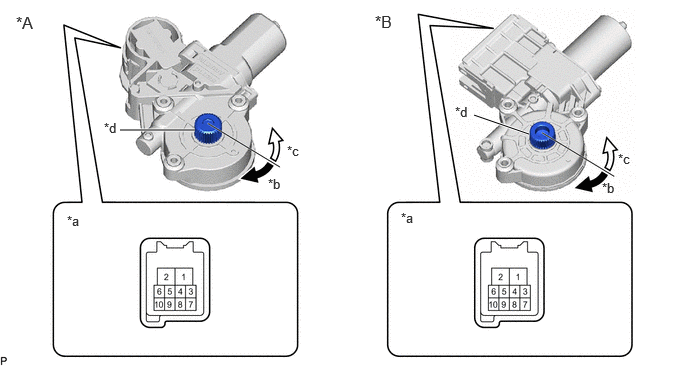

B644256C01
4.938,1.198 5.51,1.396 true 1.25,1.354 2.031,1.354 true 0.167,0.135 0.542,0.427 0.375,0.292 12 false *A 3.906,0.125 4.344,0.49 0.438,0.365 12 false *B 0.698,2.219 1.01,2.375 0.313,0.156 10 false *a 2.792,1.833 3.104,1.99 0.313,0.156 10 false *b 2.99,1.49 3.302,1.646 0.313,0.156 10 false *c 1.083,1.25 1.396,1.406 0.313,0.156 10 false *d 4.74,1.083 5.052,1.24 0.313,0.156 10 false *d 6.438,1.573 6.75,1.729 0.313,0.156 10 false *c 6.271,1.875 6.583,2.031 0.313,0.156 10 false *b 4.177,2.188 4.49,2.344 0.313,0.156 10 false *a
*A for SFTM Made *B for GTMC Made
*a Component without harness connected
(Power Window Regulator Motor Assembly LH) 		*b Clockwise
*c Counterclockwise *d Motor Gear


NOTICE:

Do not connect a positive (+) lead from the auxiliary battery to any terminal other than terminal 2 to avoid damaging the pulse sensor inside the motor.



b.

Check that the motor gear rotates smoothly as follows:

OK:
Measurement Condition Specified Condition
1.

Connect a positive (+) lead from the auxiliary battery to terminal 2, connect a negative (-) lead from the auxiliary battery to terminal 1, and keep them connected for 3 seconds or more.

2.

With terminals 2 and 1 connected, connect a negative (-) lead from the auxiliary battery to terminal 10.


Motor gear rotates counterclockwise
1.

Connect a positive (+) lead from the auxiliary battery to terminal 2, connect a negative (-) lead from the auxiliary battery to terminal 1, and keep them connected for 3 seconds or more.

2.

With terminals 2 and 1 connected, connect a negative (-) lead from the auxiliary battery to terminal 7.


Motor gear rotates clockwise


If the result is not as specified, replace the power window regulator motor assembly LH.


CAUTION:

Initialize the power window control system after installing the rear door window regulator assembly.



c.

Connect a negative (-) lead from the auxiliary battery to connector terminals 1 and 7 or 10.


Hide 85710F 2.INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

a.

Connect a positive (+) lead from the auxiliary battery to connector terminal 2.

B644257C01
0.771,1.063 1.354,1.292 false 4.302,1.198 4.885,1.427 false 0.115,0.094 0.49,0.385 0.375,0.292 12 false *A 3.625,0.073 4.063,0.438 0.438,0.365 12 false *B 0.771,2.24 1.083,2.396 0.313,0.156 10 false *a 0.469,1.542 0.781,1.698 0.313,0.156 10 false *b 0.792,1.958 1.104,2.115 0.313,0.156 10 false *c 0.594,0.938 0.906,1.094 0.313,0.156 10 false *d 4.135,1.083 4.448,1.24 0.313,0.156 10 false *d 4.24,1.979 4.552,2.135 0.313,0.156 10 false *c 4.031,1.5 4.344,1.656 0.313,0.156 10 false *b 4.208,2.281 4.521,2.438 0.313,0.156 10 false *a
*A for SFTM Made *B for GTMC Made
*a Component without harness connected
(Power Window Regulator Motor Assembly RH) 		*b Clockwise
*c Counterclockwise *d Motor Gear


NOTICE:

Do not connect a positive (+) lead from the auxiliary battery to any terminal other than terminal 2 to avoid damaging the pulse sensor inside the motor.



b.

Connect a negative (-) lead from the auxiliary battery to connector terminals 1 and 7 or 10.


c.

Check that the motor gear rotates smoothly as follows:

OK:
Measurement Condition Specified Condition
1.

Connect the positive (+) lead from the auxiliary battery to terminal 2, connect a negative (-) lead from the auxiliary battery to terminal 1, and keep them connected for 3 seconds or more.

2.

With terminals 2 and 1 connected, connect a negative (-) lead from the auxiliary battery to terminal 10.


Motor gear rotates clockwise
1.

Connect a positive (+) lead from the auxiliary battery to terminal 2, connect a negative (-) lead from the auxiliary battery to terminal 1, and keep them connected for 3 seconds or more.

2.

With terminals 2 and 1 connected, connect a negative (-) lead from the auxiliary battery to terminal 7.


Motor gear rotates counterclockwise


If the result is not as specified, replace the power window regulator motor assembly RH.


CAUTION:

Initialize the power window control system after installing the rear door window regulator assembly.
