Vehicle Interior
_111836
MIRROR (INT)
_0499906
INNER REAR VIEW MIRROR
A
MIRROR (INT) INNER REAR VIEW MIRROR REMOVAL
PROCEDURE
86466E
1.REMOVE NO. 2 FORWARD RECOGNITION COVER
86466D
2.REMOVE NO. 1 FORWARD RECOGNITION COVER
87810
3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a.

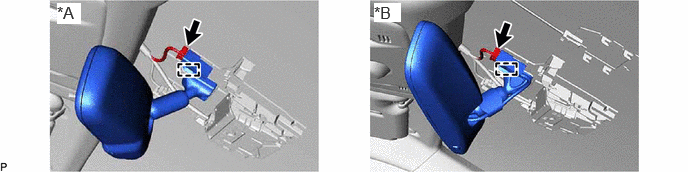

Disconnect the connector.
0.594,0.031 0.844,0.25
0.25,0.219
12
true
*A
3.896,0.031 4.177,0.229
0.281,0.198
12
true
*B
| *A | for SFTM Made | *B | for GTMC Made |
b.

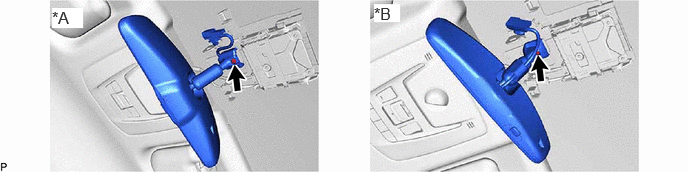

Using a T20 "TORX" socket wrench, remove the screw.
0.542,0.083 0.865,0.292
0.323,0.208
12
true
*A
3.896,0.042 4.167,0.229
0.271,0.188
12
true
*B
| *A | for SFTM Made | *B | for GTMC Made |
c.
Disengage the clamp.
d.

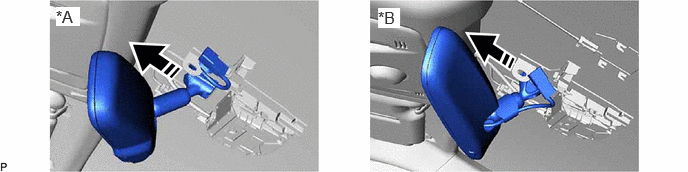

Slide the inner rear view mirror assembly as shown in the illustration to remove it.
0.583,0.073 0.833,0.271
0.25,0.198
12
true
*A
3.938,0.083 4.167,0.292
0.229,0.208
12
true
*B
| *A | for SFTM Made | *B | for GTMC Made |
|
Remove in this Direction | - | - |
