RM38N0EC _58 Vehicle Interior _111836 MIRROR (INT) _0499906 INNER REAR VIEW MIRROR A

MIRROR (INT)  INNER REAR VIEW MIRROR  INSTALLATION


PROCEDURE

Hide 87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY

a.

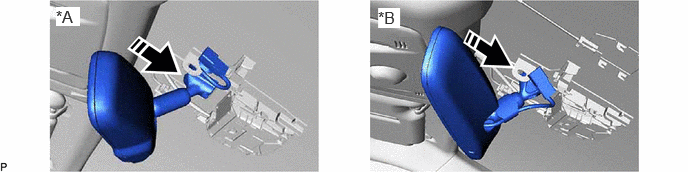

Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

B644246C01
0.583,0.073 0.833,0.271 0.25,0.198 12 true *A 3.938,0.083 4.167,0.292 0.229,0.208 12 true *B
*A for SFTM Made *B for GTMC Made
V113147

Remove in this Direction - -



b.

Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

HINT:

Check that there is no play in the inner rear view mirror assembly.


Torque:
1.8 N*m (18 kgf*cm, 16 in.*lbf)


c.

Engage the clamp.


d.

Connect the connector.
