RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0524501 REAR CENTER SEAT OUTER BELT ASSEMBLY(for GTMC Made) A

SEAT BELT REAR CENTER SEAT OUTER BELT ASSEMBLY(for GTMC Made) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0045,

Hide Display 71960B 3.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0046,

Hide Display 4.REMOVE REAR SEAT CUSHION ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0042,

Hide Display 72693 5.REMOVE REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

Hide Display 73350C 6.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0024,

Hide Display 7.REMOVE REAR SEATBACK ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0011,

Hide Display 73178A 8.REMOVE SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0090,

Hide Display 73373 9.REMOVE REAR SEAT SHOULDER BELT COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0056,

Hide Display 72668E 10.REMOVE REAR SEATBACK LOWER LOCK BEZEL RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0115,

Hide Display 72667A 11.REMOVE REAR SEATBACK UPPER LOCK BEZEL

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0089,

Hide Display 71701C 12.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0091,

Hide Display 72869 13.REMOVE CENTER ARMREST HINGE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0047,

Hide Display 72830D 14.REMOVE REAR SEAT CENTER ARMREST ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0048,

Hide Display 71931A 15.REMOVE REAR SEAT HEADREST SUPPORT

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0101,

Hide Display 16.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>DISASSEMBLY202203,999999,_58,_111839,_0524495,RM10000000220ZX_01_0092,

Hide Display 73350C 17.REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

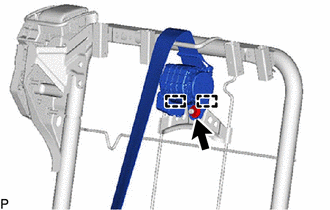

B585732

Remove the nut.

b.

Disengage the 2 guides to remove the rear center seat outer belt assembly.
