RM38N0EC _58 Vehicle Interior _111839 SEAT _0524495 REAR SEAT ASSEMBLY(for GTMC Made) A

SEAT  REAR SEAT ASSEMBLY(for GTMC Made)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71075B 1.INSTALL BENCH TYPE REAR SEAT CUSHION COVER

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

for Gasoline Model:

i.

Engage the 20 claws.

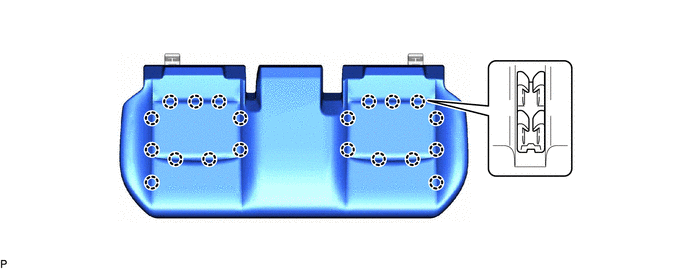

B595514

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



ii.

Engage the 20 hooks to install the bench type rear seat cushion cover to the rear seat cushion pad.

B595512

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.




b.

for HV Model:

i.

Engage the 20 claws.

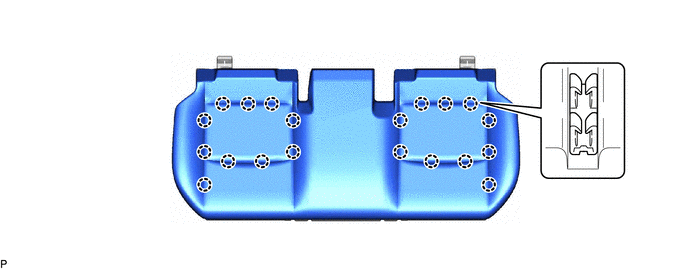

B585407

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



ii.

Engage the 16 hooks to install the bench type rear seat cushion cover to the rear seat cushion pad.

B585406

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.




Hide 72668L 2.INSTALL REAR SEATBACK LOWER NO. 2 LOCK BEZEL RH (for RH Side)

a.

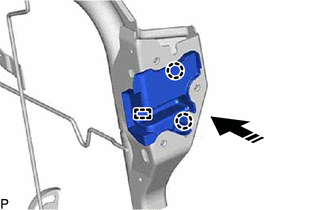

B591974C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide and 2 claws as shown in the illustration to install the rear seatback lower No. 2 lock bezel RH.


Hide 72630C 3.INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

a.
B591972

Install the rear seatback lock assembly RH with the 3 bolts.

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)


Hide 71077S 5.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side)

HINT:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

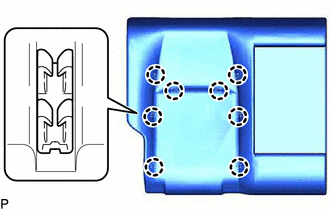

B585403

Engage the 8 claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



Hide 6.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)

a.

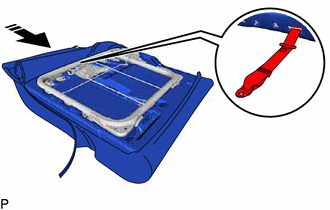

B585401C01
0,0 0,0 false
V113147

Install in this Direction


Install the separate type rear seatback cover with pad to the rear seatback frame sub-assembly RH as shown in the illustration.


b.
B585397

Engage the 6 hooks.


Hide 71931A 7.INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)

a.

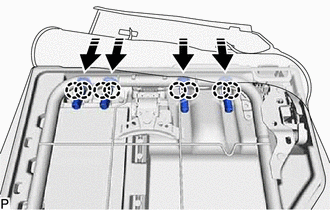

B585400C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 8 claws to install the 4 rear seat headrest supports as shown in the illustration.


Hide 72839 8.INSTALL REAR SEAT ARMREST HINGE SHIM (for RH Side)

a.

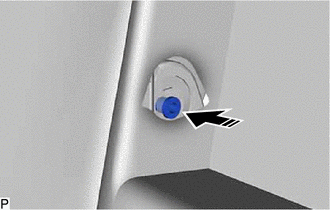

B585399C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear seat armrest hinge shim as shown in the illustration.


Hide 72806D 9.INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side)

a.

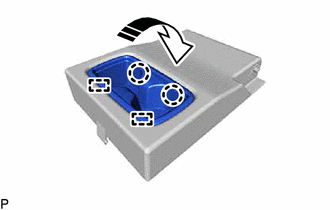

B585394C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides and 2 claws as shown in the illustration to install the rear seat center armrest cup holder sub-assembly.


Hide 72830D 10.INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)

a.

Push in the direction indicated by the arrow (1) shown in the illustration to engage the guide.

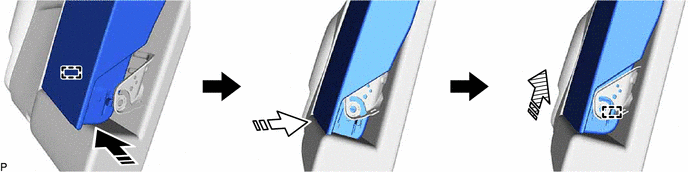

B585393C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3) - -



b.

Push in the direction indicated by the arrow (2) shown in the illustration.


c.

Push in the direction indicated by the arrow (3) shown in the illustration to engage the guide.


d.
B585390

Install the rear seat center armrest assembly with the washer and bolt.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


Hide 72869 11.INSTALL CENTER ARMREST HINGE COVER (for RH Side)

a.

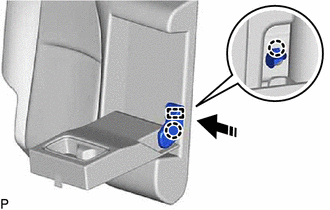

B585389C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide and 2 claws as shown in the illustration to install the center armrest hinge cover.


Hide 71701C 12.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

a.

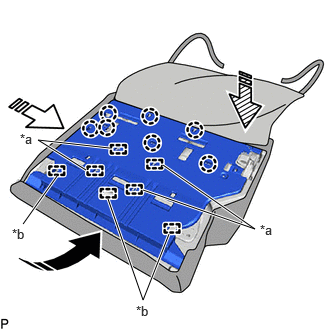

B585387C01
0.896,1.771 0.396,1.458 0.396,1.458 1.146,1.542 true 1.76,2.438 1.49,3.125 1.49,3.125 1.125,2.073 true 0.24,2.333 0.594,1.833 true 1.49,1.979 2.656,2.385 2.656,2.385 1.698,1.719 true 0.208,1.365 0.438,1.604 0.229,0.24 10 false *a 1.417,3.156 1.698,3.385 0.281,0.229 10 false *b 0.125,2.354 0.406,2.583 0.281,0.229 10 false *b 2.708,2.313 2.938,2.552 0.229,0.24 10 false *a
*a Guide
*b Hook
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)


Push in the direction indicated by the arrow (1) shown in the illustration to engage the 3 hooks.


b.

Push in the direction indicated by the arrow (2) shown in the illustration to engage the 4 guides.


c.

Push in the direction indicated by the arrow (3) shown in the illustration to engage the 7 claws and install the rear seatback board sub-assembly RH.


d.
B585384

Engage the 5 hooks.


e.

Install the 2 clips.


f.

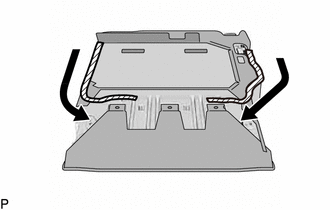

B585386C01
0,0 0,0 false
V100155

Fastener


Close the 2 fasteners as shown in the illustration.


g.
B585382

Engage the 2 hooks.


Hide 72667A 13.INSTALL REAR SEATBACK UPPER LOCK BEZEL (for RH Side)

a.
B591971

Engage the 4 claws to install a new rear seatback upper lock bezel.


Hide 72668E 14.INSTALL REAR SEATBACK LOWER LOCK BEZEL RH (for RH Side)

a.

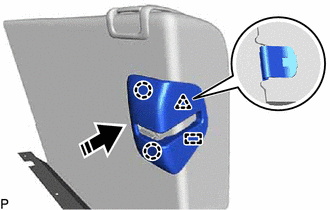

B591970C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide, clip and 2 claws as shown in the illustration to install the rear seatback lower lock bezel RH.


Hide 73373 15.INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)

a.
B590748

Install the rear seat shoulder belt cover.


Hide 73178A 16.INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)

a.

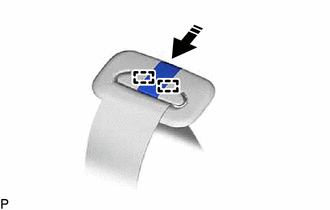

B585380C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides to install the seat belt anchor cover cap as shown in the illustration.


b.
B585378

Engage the 2 guides and 2 claws to install the rear seat shoulder belt cover and seat belt anchor cover cap.


Hide 72668M 17.INSTALL REAR SEATBACK LOWER NO. 2 LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72640A 18.INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 71078S 19.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

HINT:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

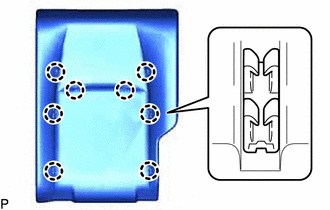

B585402

Engage the 8 claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



Hide 20.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)

a.

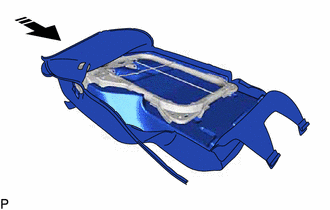

B585374C01
0,0 0,0 false
V113147

Install in this Direction


Install the separate type rear seatback cover with pad to the rear seatback frame sub-assembly LH as shown in the illustration.


Hide 71931A 21.INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)

a.

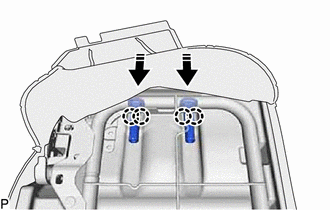

B585372C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the 2 rear seat headrest supports as shown in the illustration.


Hide 71702B 22.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

a.

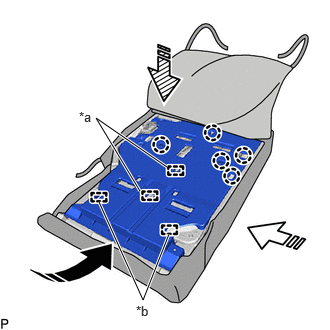

B585370C01
1.458,1.99 1,1.229 1,1.229 1.74,1.74 true 1.76,2.438 1.49,3.125 1.49,3.125 1.031,2.104 true 0.823,1.135 1.052,1.375 0.229,0.24 10 false *a 1.417,3.156 1.698,3.385 0.281,0.229 10 false *b
*a Guide
*b Hook
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)


Push in the direction indicated by the arrow (1) shown in the illustration to engage the 2 hooks.


b.

Push in the direction indicated by the arrow (2) shown in the illustration to engage the 2 guides.


c.

Push in the direction indicated by the arrow (3) shown in the illustration to engage the 5 claws and install the rear seatback board sub-assembly LH.


d.
B585367

Engage the 4 hooks.


e.

Install the 3 clips.


f.

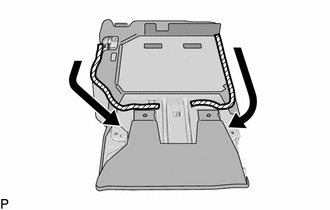

B585369C01
0,0 0,0 false
V100155

Fastener


Close the 2 fasteners as shown in the illustration.


g.
B585365

Engage the 2 hooks.


Hide 72667B 23.INSTALL REAR SEATBACK UPPER LOCK BEZEL (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72668F 24.INSTALL REAR SEATBACK LOWER LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.
